Cable protection ring 920 PE
Type KSR-920 PE
|Item no. 6066696
|EAN 4012195811114
Item no. / Type
6066696 / KSR-920 PE
Dimension L
64 mm
Dimension b
64 mm
Smallest selling unit: 25 piece
25piece
piece
Description

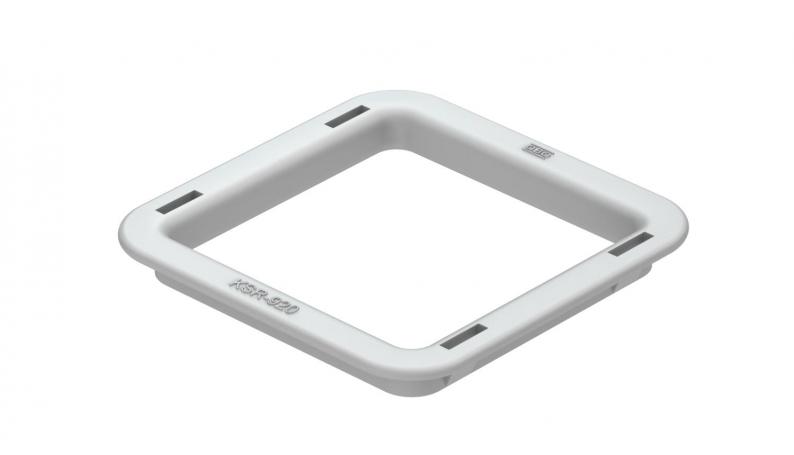

Cable protection ring for bottom perforations in AZ small ducts and luminaire support channels.
Technical data
Dimensions
| Dimension L | 64 mm |
|---|---|
| Dimension b | 64 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Hole width | 62 mm |
| Suitable for | Cable tray |
| Type | Injection-moulded part |
| Dimension | 62x62 |
| Material | Polyethylene |
| Colour | Light grey |
Environmental Data
0,03 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,03 kg CO2e / 1 Piece |
|---|
