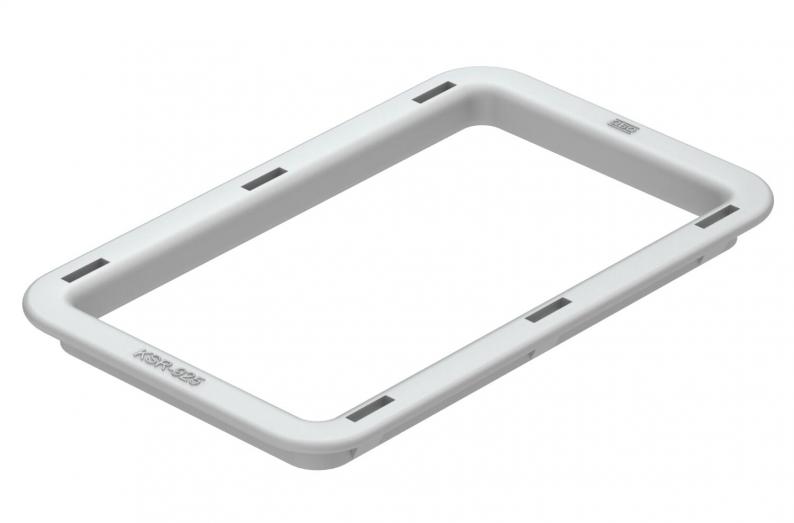

Cable protection ring 925 PE
Type KSR-925 PE
|Item no. 6066688
|EAN 4012195811084
Item no. / Type
6066688 / KSR-925 PE
Dimension L
101 mm
Dimension b
58 mm
Smallest selling unit: 25 piece
25piece
piece
Description
Cable protection ring for bottom perforations in AZ small ducts and luminaire support channels.
Technical data

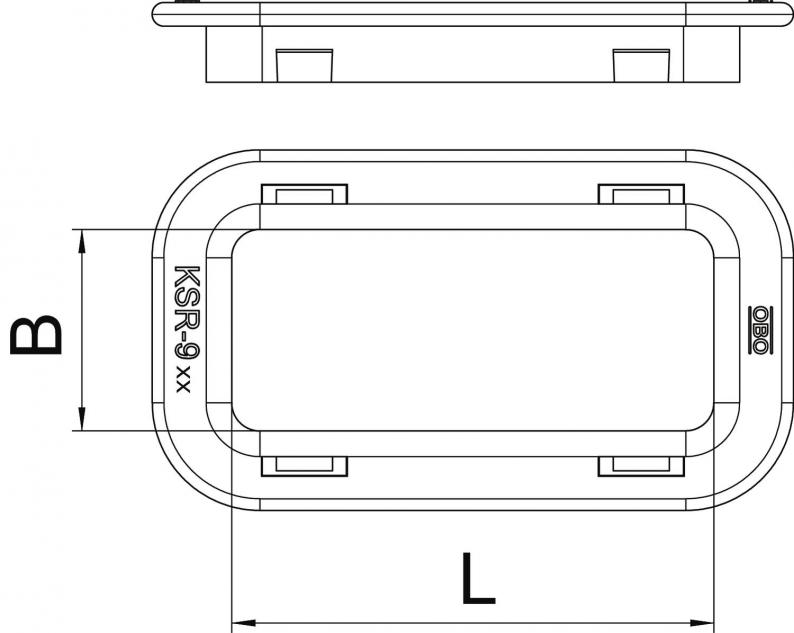

Dimensions
| Dimension L | 101 mm |
|---|---|
| Dimension b | 58 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Hole width | 62 mm |
| Suitable for | Cable tray |
| Type | Injection-moulded part |
| Dimension | 105x62 |
| Material | Polyethylene |
| Colour | Light grey |
Environmental Data
0,0412 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0412 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension L
Dimension b
Item no.
KSR-925 PE
101
58
6066688
KSR-925 PE
Item no.
6066688
Dimension L
101
Dimension b
58
