Quick. Safe. Stable.
OBO mesh cable tray systems stand out through their high load capacity and good ventilation. They can be used universally. The mesh cable trays are suitable for the installation of power cables and cables in various areas of application. The grid spacings mean that cables can be inserted and run out in various directions. The easily separable wires and the bending capacity of the mesh cable trays enable the simple creation of bends, branches and exits. Different mesh cable tray types are available, depending on the requirements, area of application and cable quantity. The GR-Magic®, the Magic® G mesh cable tray, and the heavy-duty SGR mesh cable tray with their various shapes, side heights, surfaces and range of accessories are ideal for satisfying the most varied cable routing requirements. The systems are well thought through and extremely efficient when in daily use.
Screwless and innovative with the Magic® mesh cable trays
Installation time is an important factor when it comes to choosing whether to buy a product or not. With the mesh cable tray GR-Magic®, in both the standard design or as a G mesh cable tray, OBO Bettermann can offer a true system innovation. Thanks to the connection system developed by OBO, the mesh cable tray can be mounted in a matter of seconds – without any connectors or tools. Just connect the two parts and you’re done. The system has therefore redefined the concepts of rapid mounting and flexibility.
GR-Magic® mesh cable tray

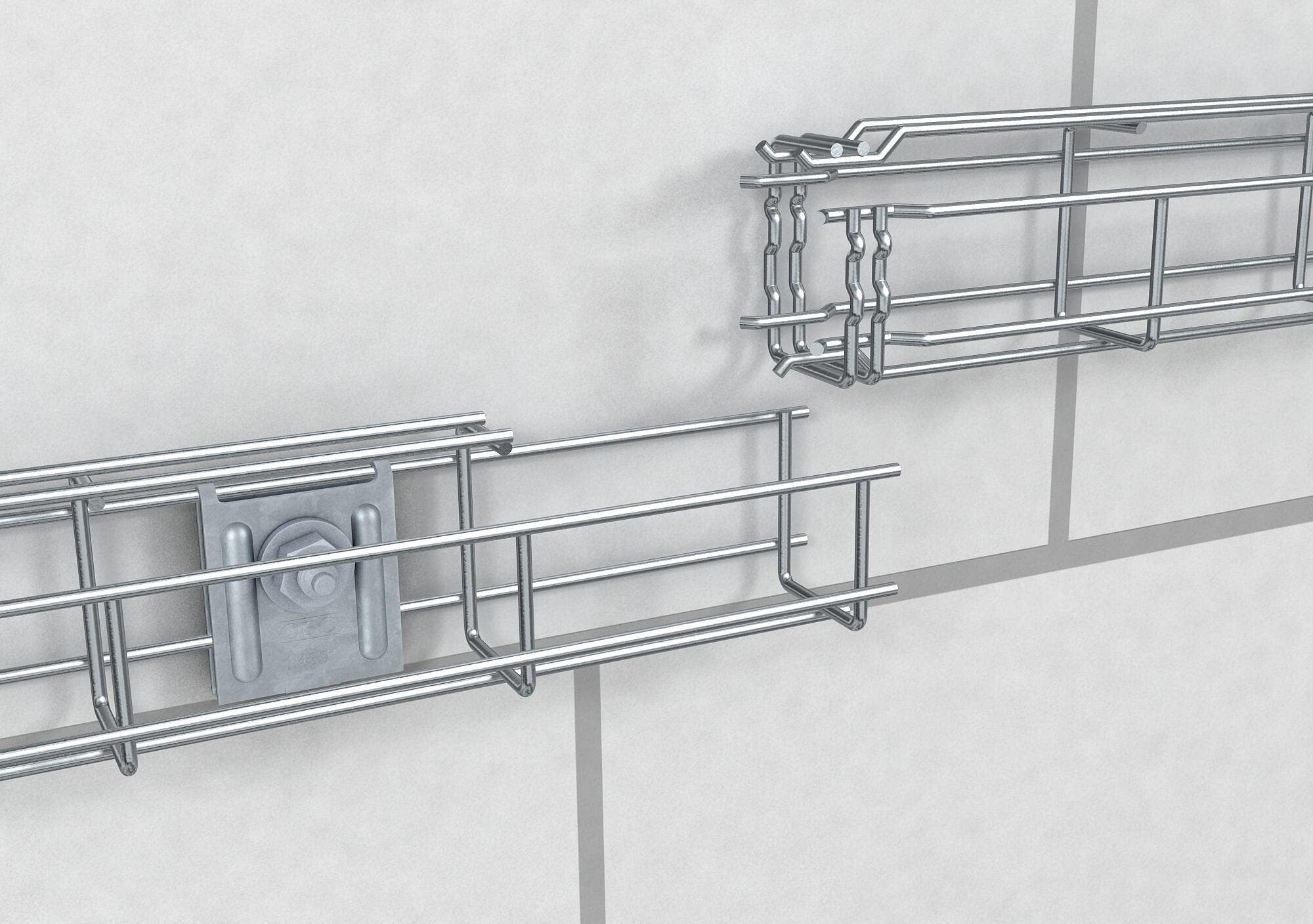

The GR-Magic® mesh cable tray really speeds up installation and manages this with no loss of stability and load-bearing capacity. The moulded connectors for screwless quick mounting ensure extremely quick installation times, even for complex mounting operations.
Load tests show that GR-Magic® systems can fully match up to traditional screw connections. Besides rapid mounting and the wide range of applications, the GR-Magic® offers another key benefit: It can be used to maintain the electrical function for fire safety purposes in the event of a fire, in order to ensure the supply to safety-related systems for a specified period of time.
The GR-Magic® has proven its stability in an impressive manner in fire testing according to DIN 4102 Part 12.
G mesh cable tray GR-Magic®: For direct wall and ceiling mounting
Even if space is tight, the Magic® G mesh cable tray can be mounted almost anywhere. It can be attached directly to walls and ceilings in almost any position. The mesh cable tray can thus offer optimum cable routing in false ceilings, server rooms and office buildings.
This system also scores highly thanks to its screwless design. Material diversity: In dry rooms, wet rooms, outdoor areas, the food industry or tunnel construction – the GR-Magic® has the right surface for any area. The product range runs from electrogalvanised through hot-dip galvanised, right through to stainless steel mesh cable trays.

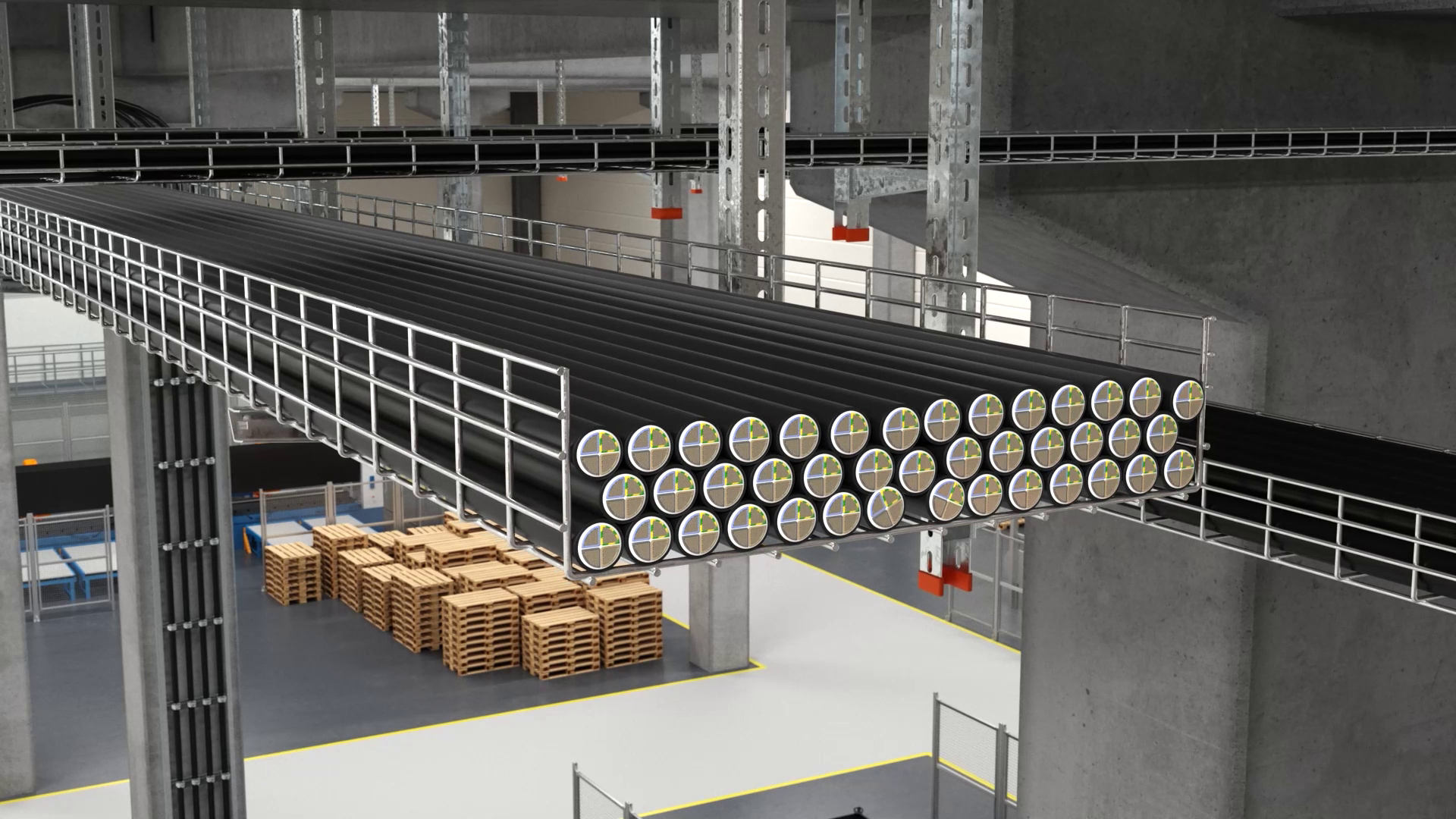

SGR heavy-duty mesh cable tray: 110% loadable
The OBO heavy-duty mesh cable tray of type SGR, made of 6 mm-thick wire in a U profile, combines many advantages all at the same time. The strong wire design means that the SGR, with its low intrinsic weight, can withstand load capacities of up to 110% more than the comparable mesh cable trays of competitors and can thus also be used for larger support spacings of up to 4.0 m.
The mesh cable tray is available in three different surface finish versions. It is hot-dip galvanised and can be used in the industrial sector and in machine and system construction, available in stainless steel for use in the food or chemical industry, or with an electrogalvanised coating for indoor areas without special requirements.
With three different side heights, it is possible to react very flexibly to different cable volumes when necessary. The large mesh holes allow cables and lines to be fed in or out at any point. In addition, the open structure prevents heat build-up and also the accumulation of dirt and dust is mostly prevented.
Matching the heavy mesh cable tray, there is the GUV 6 U connector in the surfaces FT, G and A2 available. This new heavy-duty mesh cable tray offers an all-round complete package for the sophisticated laying of cables in all different application areas.

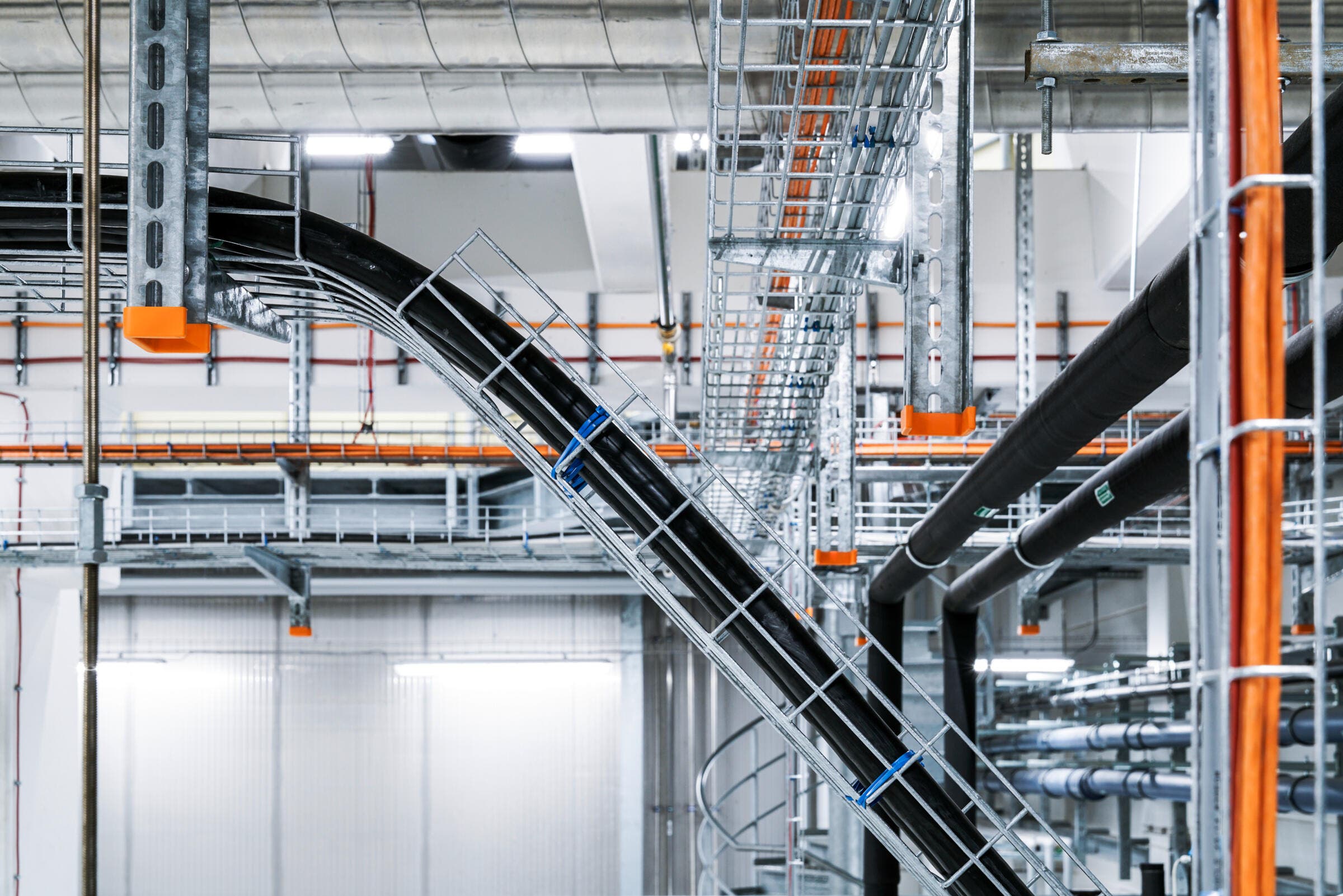

The versatile C mesh cable tray

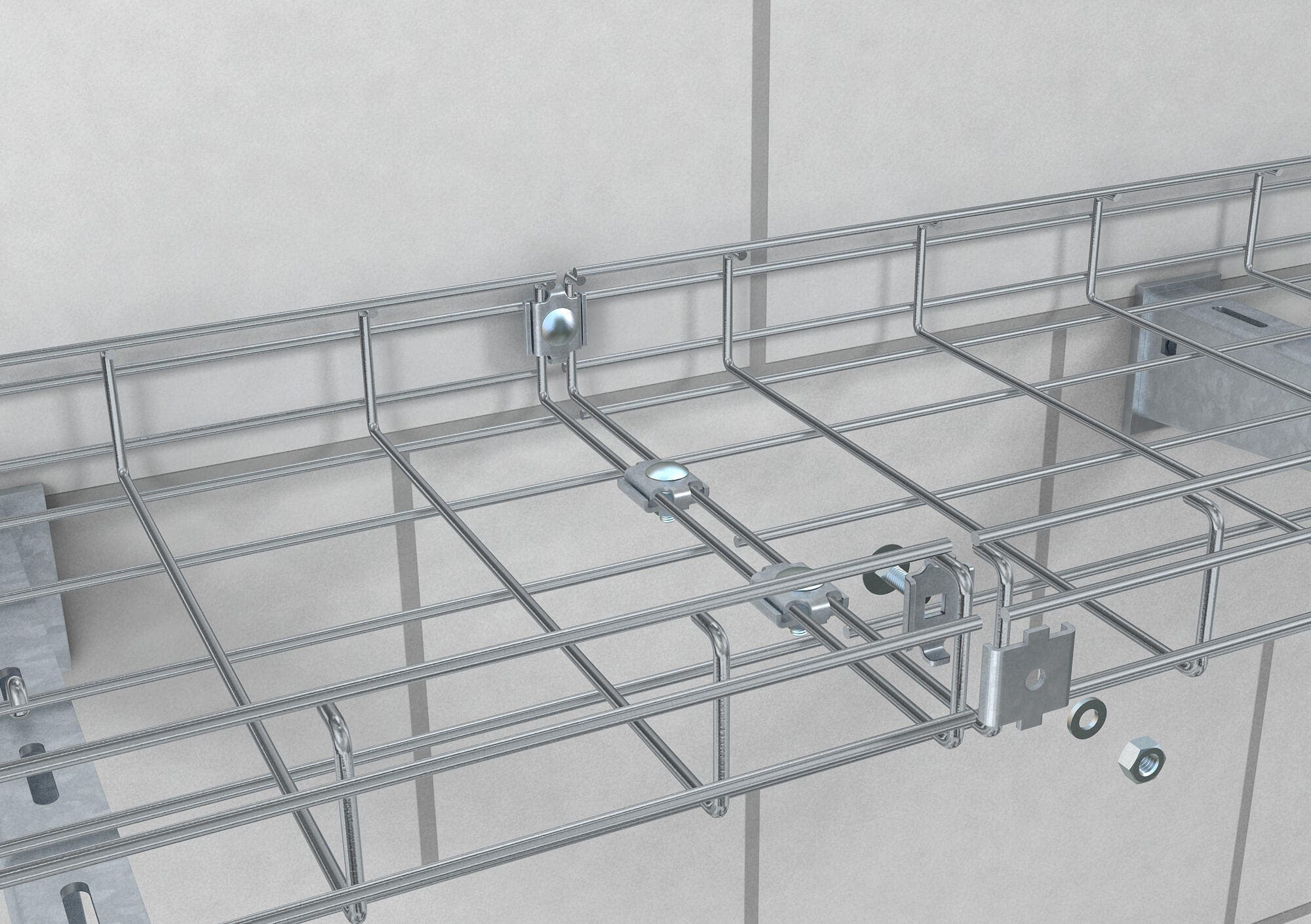

The C mesh cable tray system from OBO Bettermann can fulfil the highest requirements for load capacities and versatility. The C shape allows support widths of up to 3 metres.
With a side height of 50 mm and optimised accessories such as hold-down clamps, barrier strips or installation profiles, the system is the perfect complement to OBO’s complete mesh cable tray portfolio.
It is used both in industry and in all other areas of professional electrical installations.
