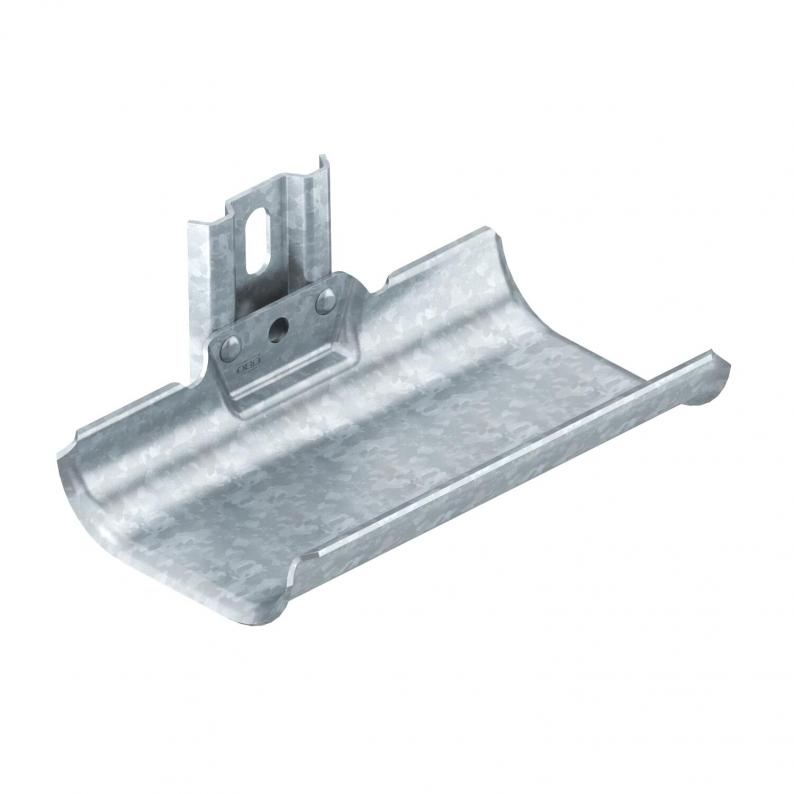

Cable support trough, single, with fastening rail
Type KTW 100 1 FT
|Item no. 6006901
|EAN 4012196409112
Item no. / Type
6006901 / KTW 100 1 FT
Height
140 mm
zemin yüksekliği
0,5 kN
Number of troughs
1 St.
Smallest selling unit: 1 piece
1piece
piece
Description
Cable support brackets for quick and easy routing of cables in areas where common cable support systems cannot be installed due to lack of space. The cable support brackets possess a large load-bearing surface as well as rounded outer edges to protect the cables.
In accordance with DIN VDE 0298-300, a maximum support spacing of 0.8 m should not be exceeded.
Technical data
Dimensions
| Length | 198 mm |
|---|---|
| Width | 122 mm |
| Height | 140 mm |
| Dimension L | 140 mm |
Technical data
| Plate thickness | 2 mm |
|---|---|
| Ayarlanabilir | no |
| zemin yüksekliği | 0,5 kN |
| Number of troughs | 1 St. |
| Boyut | 140x200x123 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,6048 kg CO2e / 1 Piece |
|---|
