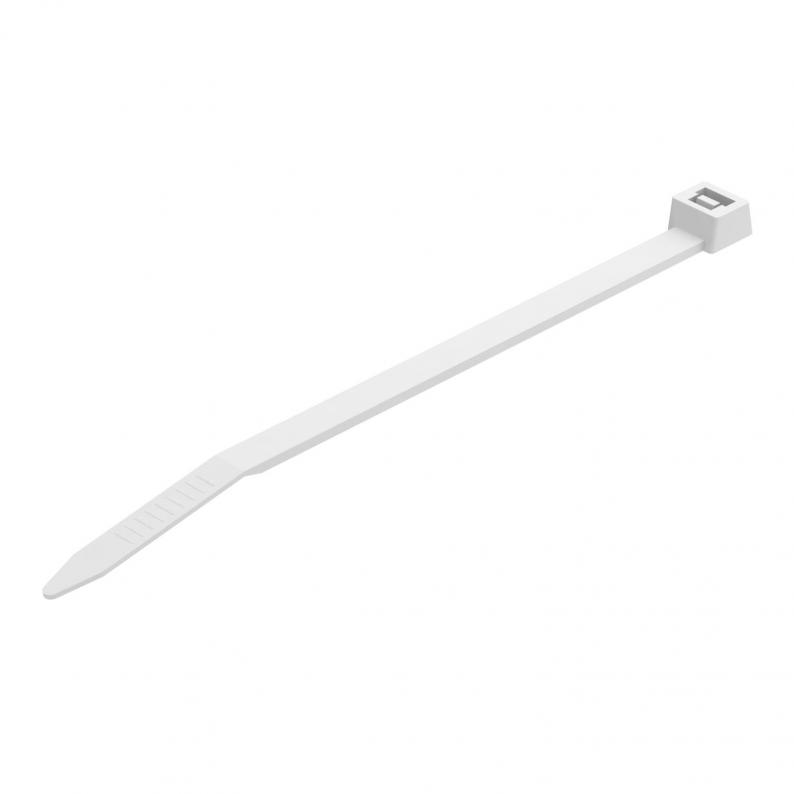

Cable tie, white
Type 565 2.5x75 WS
|Item no. 2331800
|EAN 4012196416929
Item no. / Type
Length
Max. Bundle diameter
Smallest selling unit: 100 piece
100piece
piece
Description
Cable ties are used for quick, uncomplicated fixing or bundling of cables and pipes to cable support systems or other mounting structures.
Technical data

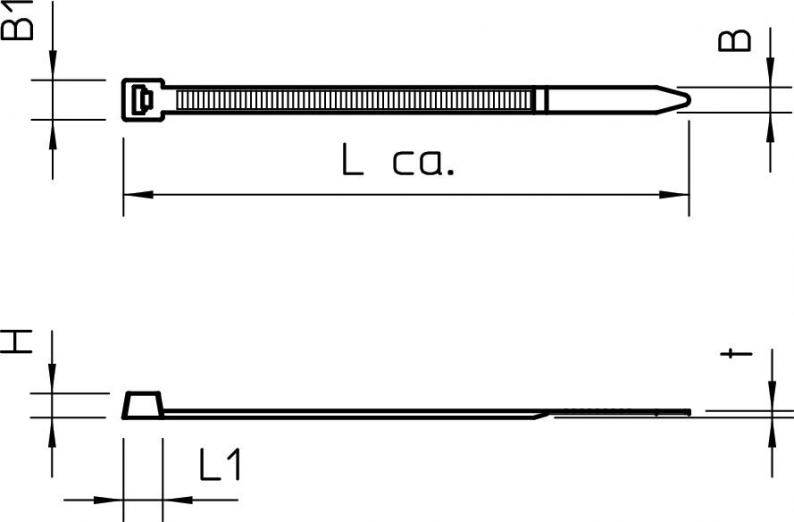

Dimensions
| Length | 75 mm |
|---|---|
| Width | 2,5 mm |
| Height | 1 mm |
| Dimension L | 75 mm |
| Dimension B | 2,5 mm |
| Dimension t | 1 mm |
Technical data
| Halojen İçermez | evet |
|---|---|
| UV-resistant | hayır |
| Max. Bundle diameter | 15 mm |
| Transparent | hayır |
| VG approval | hayır |
| MIL approval | hayır |
| UL approval | evet |
| Releasable lock | hayır |
| Strip closure | Plastic tongue/tab |
| Labelling area | Yok |
| Min. mounting temperature | -30 °C |
| Mounting temperature, max. | 90 °C |
| Reflective | hayır |
| Tensile strength | 80 N |
| Version for | Externally toothed |
| Fastening type | Yok |
| Kullanılabilir sıcaklık aralığı min. | -30 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 2,5x75mm |
| Material | Polyamide |
| Colour | White |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,0008 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Max. Bundle diameter
Colour
Item no.
565 2.5x75 WS
75
15
White
2331800
565 2.5x100 WS
100
22
White
2331810
565 2.5x150 WS
150
39
White
2331816
565 2.5x200 WS
200
55
White
2331822
565 3.6x150 WS
150
36
White
2331830
565 3.6x200 WS
200
52
White
2331836
565 3.6x290 WS
290
82
White
2331842
565 3.6x365 WS
365
105
White
2331848
565 4.8x120 WS
120
27
White
2331860
565 4.8x160 WS
160
39
White
2331866
565 4.8x200 WS
200
52
White
2331872
565 4.8x300 WS
300
83
White
2331878
565 4.8x365 WS
365
105
White
2331884
565 4.8x430 WS
430
125
White
2331890
565 7.6x200 WS
200
52
White
2331910
565 7.6x300 WS
300
80
White
2331916
565 7.6x380 WS
380
105
White
2331922
565 7.6x450 WS
450
128
White
2331934
565 9x760 WS
760
227
White
2331944
