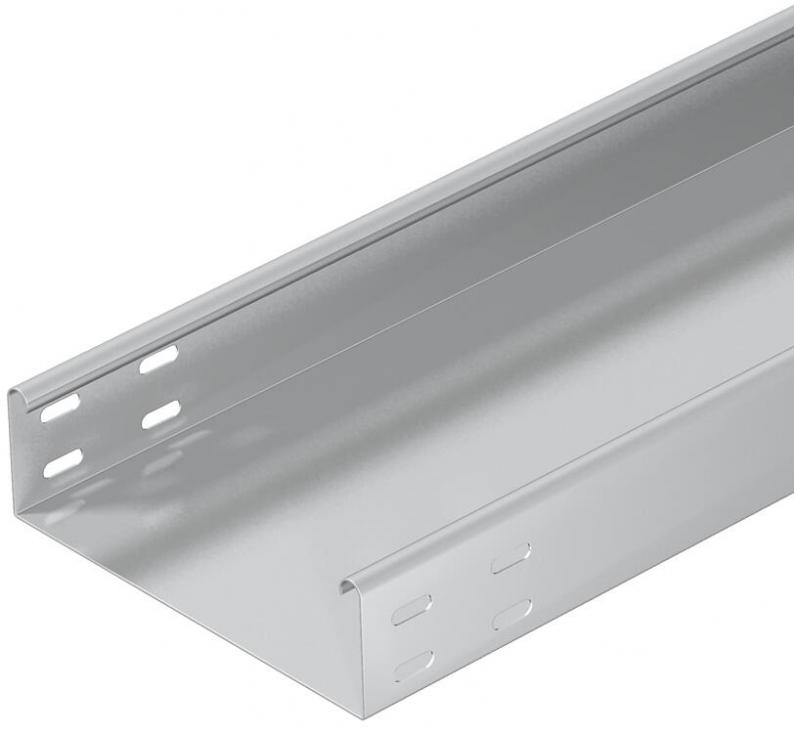

Cable tray MKSU 60 A2

Cable tray MKSU 60 A2

Type MKSU 650 A2
|
Item no. 6063861
|
EAN 4012196064212
Show all variants
Item no. / Type
6063861 / MKSU 650 A2
Length
3000 mm
Width
500 mm
Maintain electrical functions
no
Plate thickness
1 mm
Surface
Bright, treated
Material
Stainless steel 1.4301

This item is a discontinued product!

Smallest selling unit: 3 m

m

Description

MKSU 60 = Medium-duty cable tray system, unperforated, with a side height of 60 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray has connector perforations on both sides.

Connecting parts should be ordered separately and in the appropriate quantity.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width500 mm
Height60 mm
Dimension B500 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section298 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section29800 mm²
With coverno
Dimension60 x 500
Base perforation0
Dimension60x500x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed

Loads

Support spacing 1.5 m1,5 kN/m
Support spacing 1.75 m1,25 kN/m
Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,5 kN/m
Load diagram, cable tray, type MKSU 60 VA

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Environmental Data

25,0267 kg CO₂e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate25,0267 kg CO₂e / 1 Meter

Accessories

System accessories

Item no. 6067654

Straight connector A2
Type
RLVK 60 A2

Smallest selling unit: 10 piece

piece

Type
DRL 500 A2

Smallest selling unit: 3 m

m

Item no. 7070373

Joint plate A2
Type
SSLB 500 A2

Smallest selling unit: 20 piece

piece
