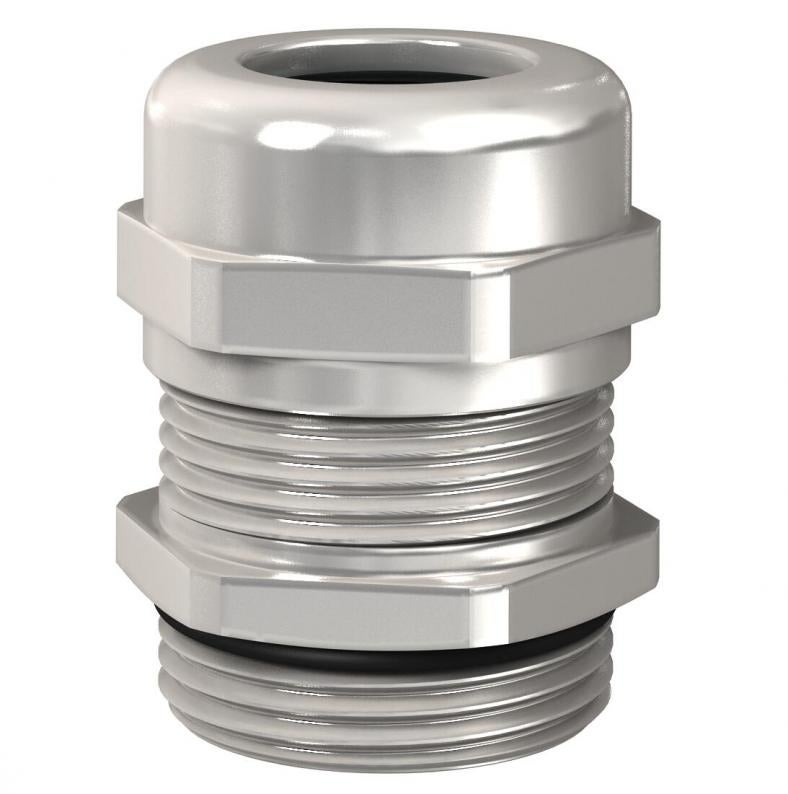

Cap nut cable gland, EMC spring contact, metric thread, nickel-plated
Type V-TEC VM20 EMV-K
|Item no. 2086169
|EAN 4012195655480
Item no. / Type
Thread
Smallest selling unit: 25 piece
25piece
piece
Description
With metric connecting thread to IEC 423, robust EMV cap-nut cable gland with large sealing area. The contact between the gland and braided shield is made using a contact spring. Strain relief, wringing protection and tightness over the whole clamping area. Neoprene sealing ring. Polyamide terminal insert. With pre-mounted O sealing ring on connection thread, protection rating IP 68 at 5 bar for 1 hr.
* Prices according to DEL notation.
* Prices according to DEL notation.
Technical data

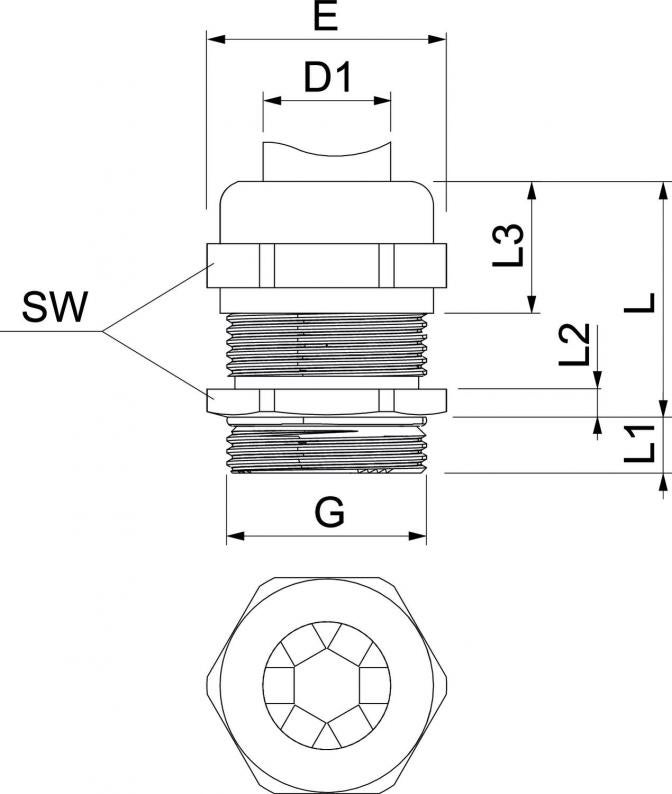

Dimensions
| Length | 22 mm |
|---|---|
| Width | 24 mm |
| Height | 33,5 mm |
| Dimension D1 | 9 mm |
| Dimension L | 27,5 mm |
| Dimension G | M20x1,5 mm |
| Dimension L1 | 6 mm |
| Dimension L2 | 3,5 mm |
| Dimension L3 | 13,3 mm |
| Dimension E | 24 mm |
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | no |
| Fibre-glass reinforced | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | M20 x 1,5 |
| For Ex zone | Without |
| Bend protection | no |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Type of seal | Sealing ring |
| Sealing area D, min. | 9 mm |
| Sealing area D, max. | 13 mm |
| WAF | 22 |
| Version for | Straight |
| ROHS-conformant | Exempt |
| Thread length | 6 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 100 °C |
| Dimension | M20 |
| Surface | Nickel-plated |
| Material | Brass |
Environmental Data
0,0922 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0922 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0922 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
