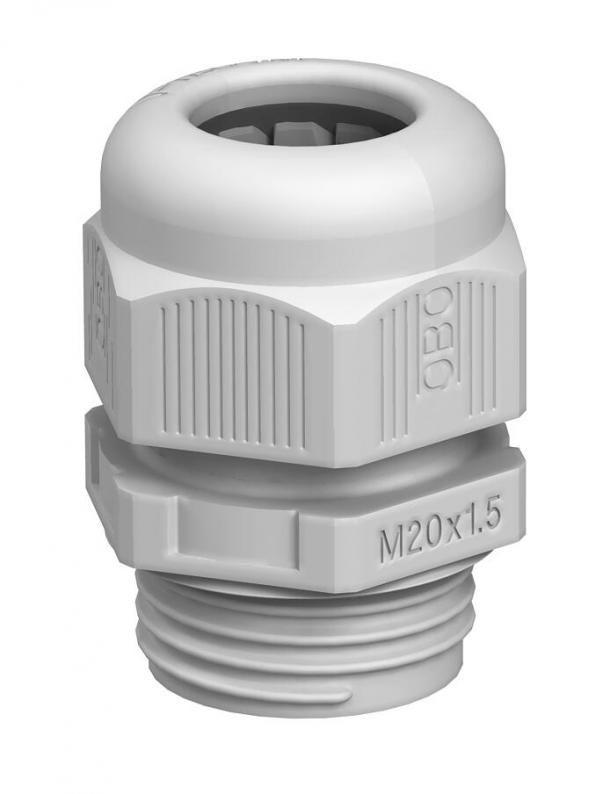

Cap nut cable gland, metric thread, silver grey

Cap nut cable gland, metric thread, silver grey

Type V-TEC VM16 SGR
|
Item no. 2022845
|
EAN 4012195532699
Show all variants
Item no. / Type
Thread

Smallest selling unit: 50 piece

piece

Description

The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM cable glands from OBO. With the integrated sealing lip and the special OBO lamella technology, protection class IP68 is achieved. Strain relief and tightness have been tested to DIN EN 62444.
The connecting threads of the cable glands are metric or PG and are therefore suitable for universal use. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.
Applications: From private housing with junction boxes up to industrial applications in the distributor cabinet.
Temperature range: –20 °C to +65 °C.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Det Norske Veritas
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • UV-resistant
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP68
ThreadM16 x 1,5
For Ex zoneWithout
Thread typeMetric
Bend protectionno
With locknutno
Sealing insert, multipleno
Flat cable glandno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,5 mm
Nominal thread size16
Hexagonal corner dimension22 mm
Sealing area D, min.4,5 mm
Sealing area D, max.10 mm
WAF20
Version forStraight
Thread length8 mm
Unstable torque2,5 Nm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.65 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
DimensionM16
MaterialPolyamide
ColourSilver grey; RAL 7001

Dimensions

Dimension L min.21,5 mm
Dimension L max.29 mm
Dimension L18 mm
Dimension L25 mm
Dimension E22 mm

Environmental Data

0,0301 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0301 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0301 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
Packaging without plasticyes
