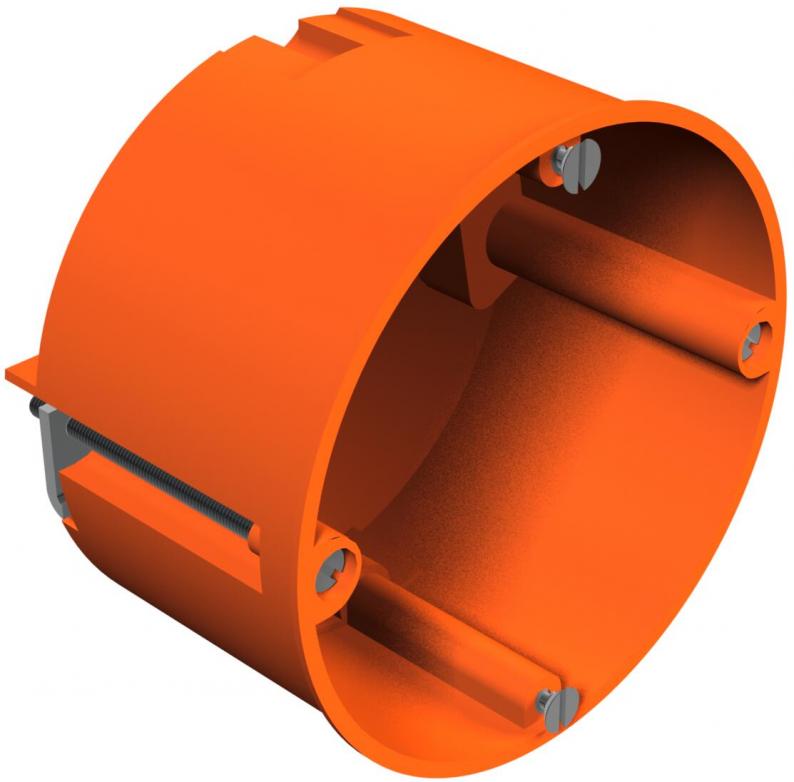

Cavity wall accessory socket
Type HG 60
|Item no. 2003414
|EAN 4012195032779
Item no. / Type
2003414 / HG 60
Height
47 mm
Milling hole diameter
68 mm
Diameter
68 mm
No. of entries
8
for pipe diameter
20 mm
This item is a discontinued product!
Smallest selling unit: 25 piece
25piece
piece
Description
Cavity wall accessory socket Dimensions to DIN 49073-1, for plate thickness 7–35 mm. Standard combination spacing 71 mm, option of through-wiring using connection supports when combining accessory sockets and accessory connection sockets, 8 break-out openings for NYM cables, data cables and pipes of Ø 20 mm. Accessory sockets can also be used as connection sockets in accordance with VDE 0606-1 with double screw fastening and screw-on cover, protection rating IP30. Twelve connection pieces included.
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
According to IEC 60670-1, IEC 60670-22 and DIN 49073-1.
Technical data
Dimensions
| Height | 47 mm |
|---|
Technical data
| Type of entry | break-out openings for NYM cables, data cables and pipes Ø 20 mm |
|---|---|
| Impact-resistant | no |
| Floor height, min. | 47 mm |
| Number of switch boxes | 1 |
| Milling hole diameter | 68 mm |
| Suitable for plate thickness, min. | 7 mm |
| Suitable for plate thickness, max. | 35 mm |
| Accessory screw clearance | 60 mm |
| Diameter | 68 mm |
| Halogen-free | yes |
| No. of entries | 8 |
| Device fixing | Screws , |
| Entry from rear | yes |
| Protection rating | IP30 |
| Sealable | no |
| Maintain electrical functions | Without |
| Type of housing penetration | Sealing membrane |
| With screening | no |
| for pipe diameter | 20 mm |
| With bolts | yes |
| Airtight | no |
| With nail strap | no |
| Support | Without |
| Max. Conductor cross-section | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Shape | Round |
| Equipment | Without |
| Cover | Without |
| Cover fastening | Not applicable |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C |
| Dimension | Ø68mm, H45mm |
| Material | Polypropylene |
| Colour | Orange |
| Rated voltage | 400 V |
