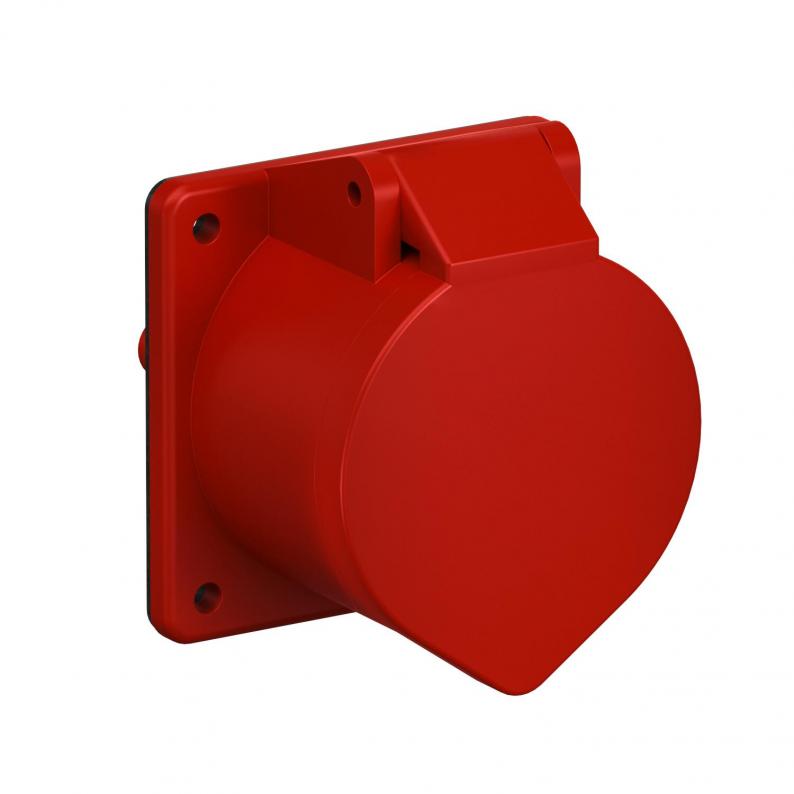

CEE connection unit, 16 A
Type CEE-16A
|Item no. 6109874
|EAN 4012195125594
Item no. / Type
6109874 / CEE-16A
Smallest selling unit: 1 piece
1piece
piece
Description
CEE socket with 60 mm fastening track, 3-pin + N + PE, 400 V, 16 A, 6 h.
Technical data

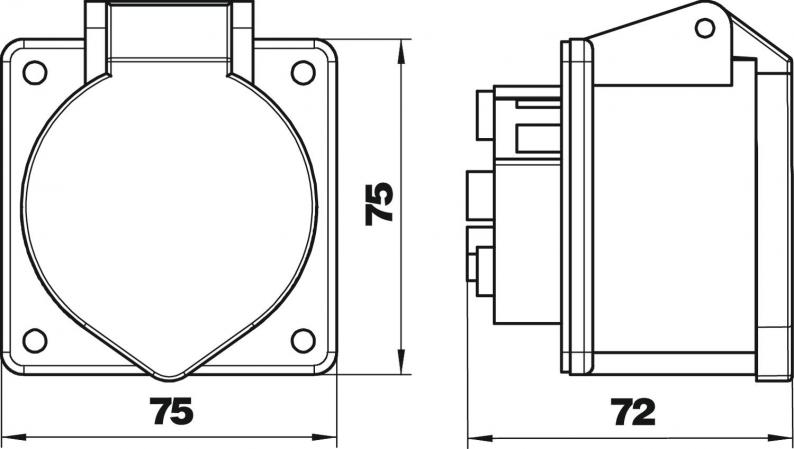

Dimensions
| Length | 72 mm |
|---|---|
| Width | 75 mm |
| Height | 75 mm |
Technical data
| Kutup sayısı | 5 |
|---|---|
| Koruma sınıfı | IP44 |
| Nominal current | 16 A |
| Anma gerilimi | 400 V |
| Military version | no |
| Direction of insertion | Straight |
| Boyut | 75x75x72 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Connection technology | Screwless terminal |
| Cable entry | Other |
| Drill hole spacing, horizontal | 60 mm |
| Drill hole spacing, vertical | 60 mm |
| Flange dimension, horizontal | 75 mm |
| Flange dimension, vertical | 75 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,1064 kg CO2e / 1 Piece |
|---|
