Ceiling panel ISSDM45F

Ceiling panel ISSDM45F

Type ISSFDB2RW
|
Item no. 6290382
|
EAN 4012195817062
Show all variants
Item no. / Type
6290382 / ISSFDB2RW
Length
140 mm
Width
100 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

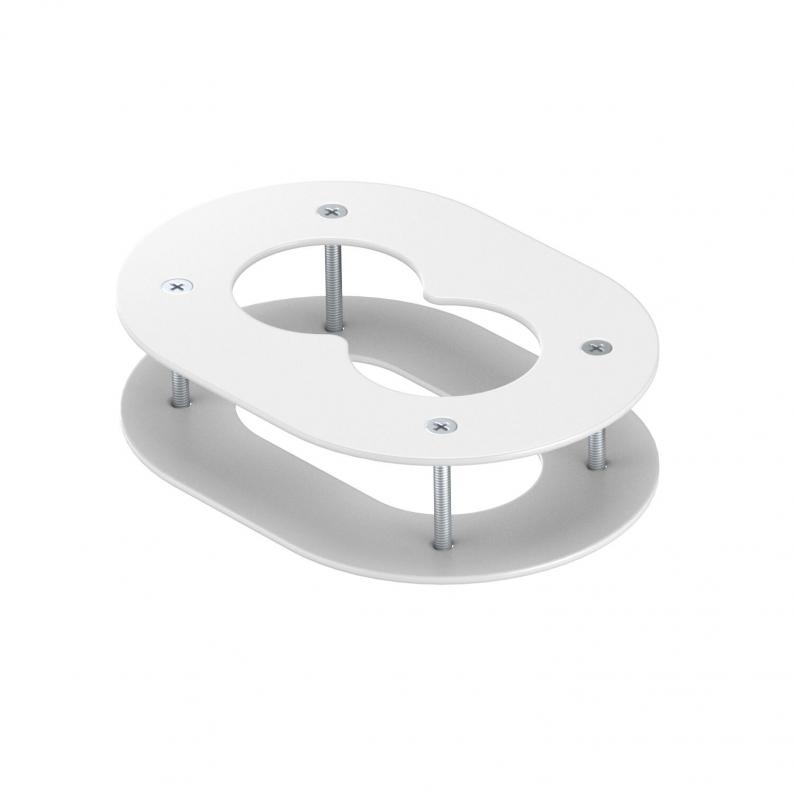

Ceiling rosette for tidy closure of the penetration of the flexible hoses in the ceiling.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

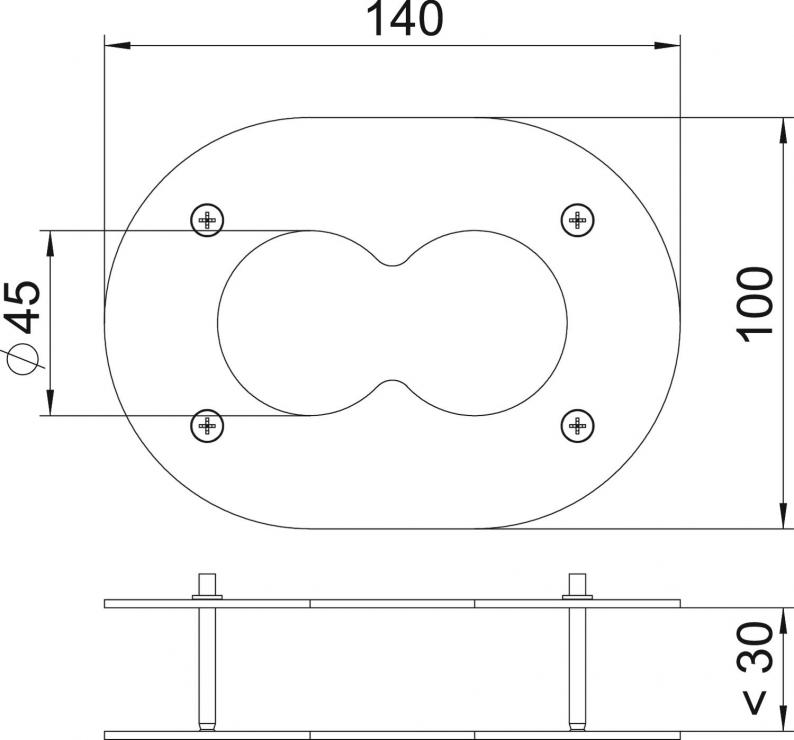

Dimensions

Length140 mm
Width100 mm
Height40 mm

Technical data

Halogen-freeyes
Type of accessoryRosette
Dimension140x100x40
MaterialSteel
ColourPure white; RAL 9010

Environmental Data

1,3969 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,3969 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

ISSFDB2RW
Item no.
6290382
Length
140
Width
100
Colour
Pure white; RAL 9010
