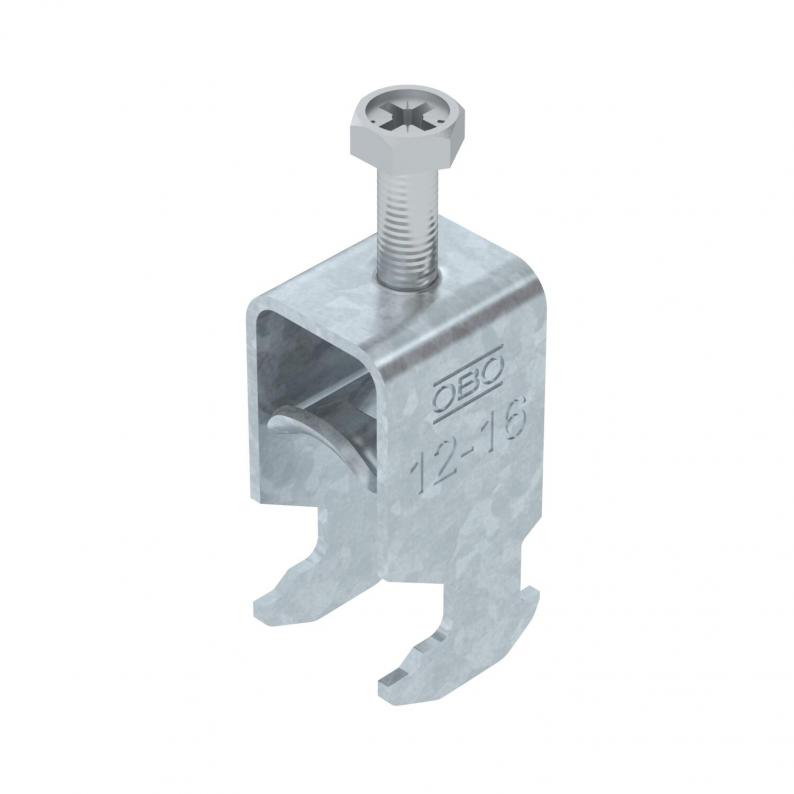

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Type BS-H1-M-16 FT
|
Item no. 1186009
|
EAN 4012196848553
Show all variants
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 100 piece

piece

Description

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.
