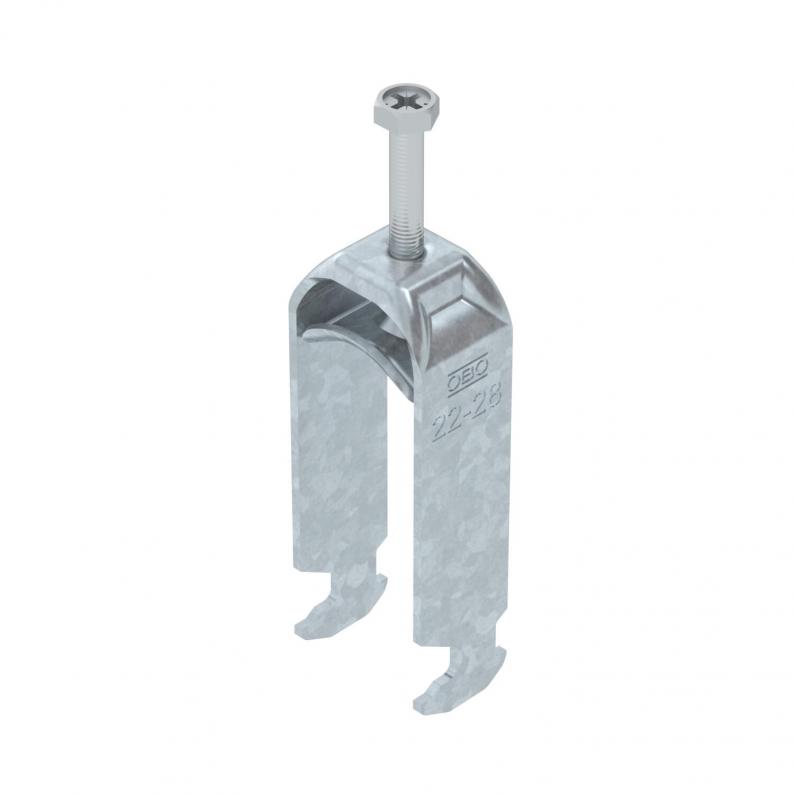

Clamp clip 2056 H-foot 2-fold, metal pressure sleeve, FT
Type BS-H2-M-28 FT
|Item no. 1186023
|EAN 4012196848621
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Smallest selling unit: 50 piece
50piece
piece
Description
Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 2 single cables on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. Multiple cables should be separated by double sleeves. We recommend the use of a counter-sleeve.
Technical data
Dimensions
| Length | 22,5 mm |
|---|---|
| Width | 33 mm |
| Height | 91 mm |
| Dimension L | 34 mm |
| Dimension A | 22,5 mm |
| Dimension B | 33 mm |
| Dimension H | 91 mm |
| Dimension t | 2 mm |
| Dimension C | 28 mm |
| Ölçü G (mm) | M6 |
Technical data
| Maintain electrical functions | evet |
|---|---|
| Plate thickness | 2 mm |
| Boru çapı min. | 22 mm |
| Boru çapı maks. | 28 mm |
| Yarık uzunluğu | 10 mm |
| for rail with slot width (with interval), min. | 16 mm |
| yarık uzunluğuna sahip raylar için maks. | 17 mm |
| Halojen İçermez | evet |
| Vida dişi | M6 |
| With plastic trough | hayır |
| With metal trough | evet |
| Length of external dimensions | 28 mm |
| Number of cables/pipes | 2 |
| Surface addition | hot galvanised |
| Material addition | Çelik |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profil ray |
| Clamping range D, min. | 22 mm |
| Clamping range D, max. | 28 mm |
| Boyut | 22-28mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,1978 kg CO2e / 1 Adet |
|---|
