Clamp clip, double, plastic pressure trough
Type 2056W 2 34 FT
|Item no. 1181343
|EAN 4012195076575
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for angular steel of 40 mm shaft length.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| For pipe diameter, min. | 32 mm |
|---|---|
| For pipe diameter, max. | 32 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 2 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Angle profile |
| for 1 cable H | 99 mm |
| for 1 cable L | 31,5 |
| for 2 cable H | 135 mm |
| for 2 cable L | 37,5 mm |
| for 3 cable L | 44,5 mm |
| for 3 cable H | 171 mm |
| Clamping range D, min. | 28 mm |
| Clamping range D, max. | 34 mm |
| Dimension | 28-34mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

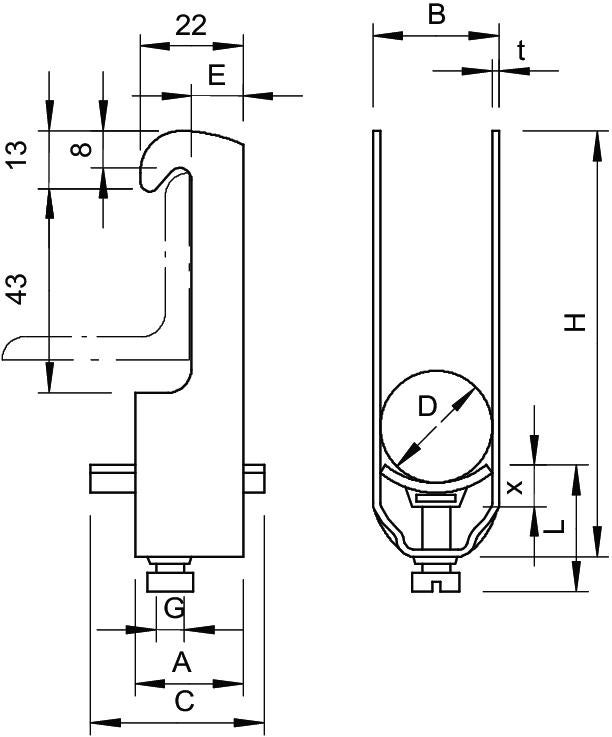

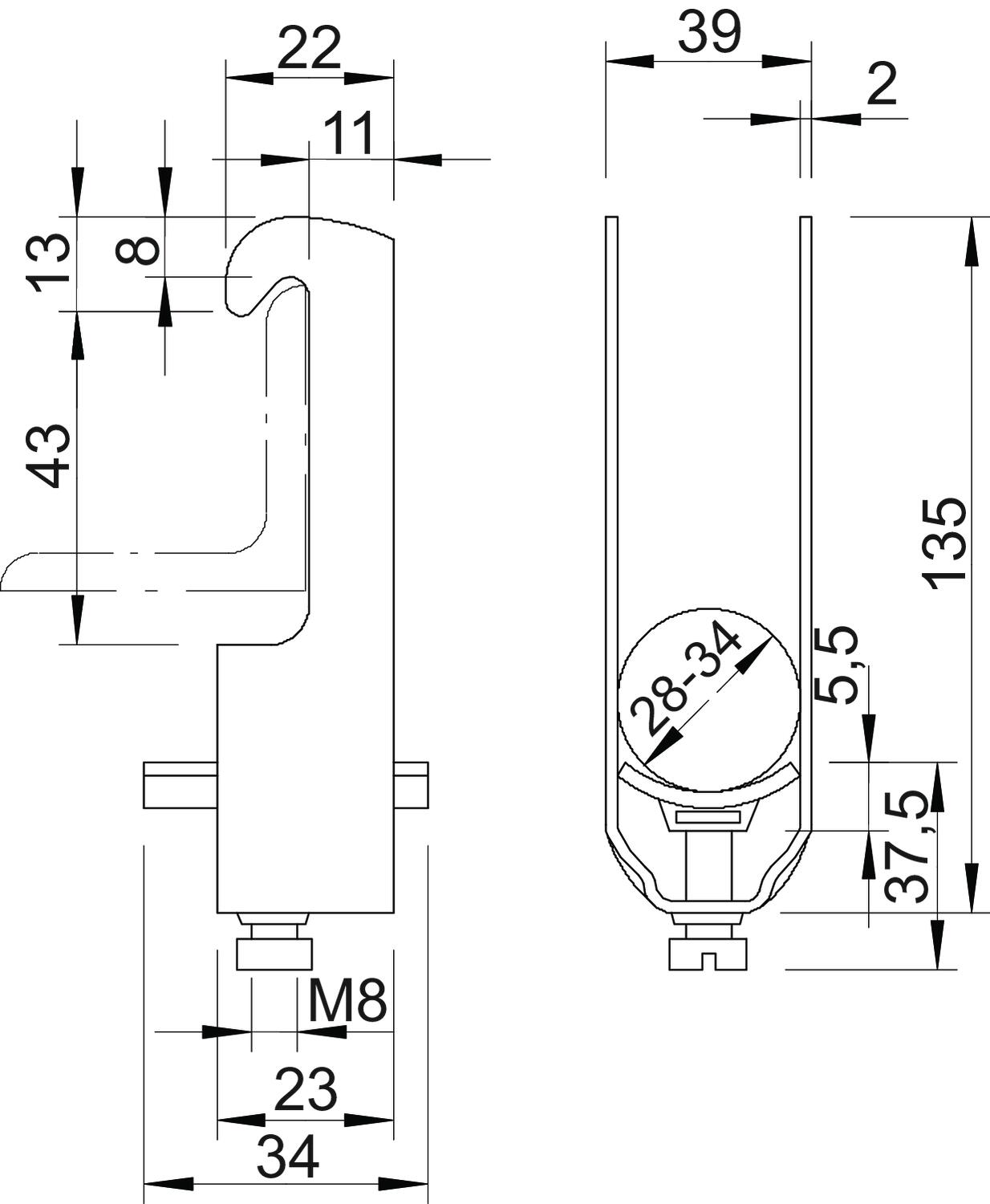

Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 39 mm |
| Dimension H | 135 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
| Dimension E | 11 mm |
Environmental Data
0,3127 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3127 kg CO₂e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,3127 kg CO₂e |
| Determination date of CO2 value | 2025-04-02T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056W 2 16 FT
3
12
16
1181165
2056W 2 28 FT
3
22
28
1181289
2056W 2 34 FT
5
28
34
1181343
2056W 2 46 FT
5
40
46
1181467
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056W 2 16 FT
Item no.
1181165
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
2056W 2 28 FT
Item no.
1181289
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056W 2 34 FT
Item no.
1181343
Max. Tightening torque
5
Clamping range D, min.
28
Clamping range D, max.
34
2056W 2 46 FT
Item no.
1181467
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
