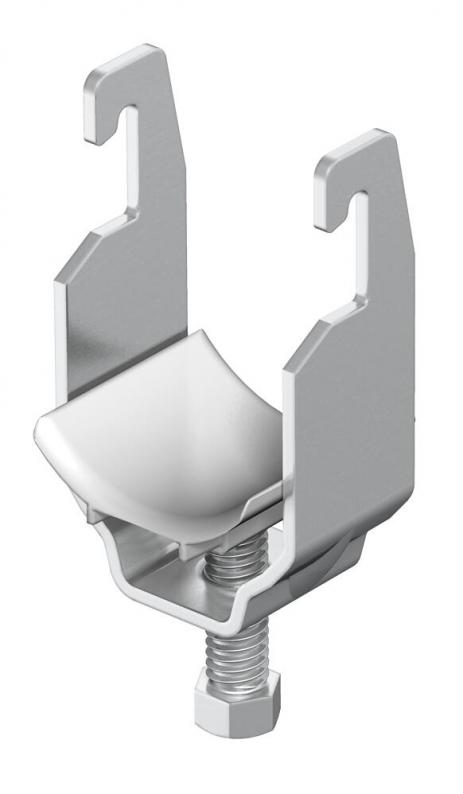

Clamp clip, single, A2 plastic pressure trough
Type 2056U 12 A2
|Item no. 1178504
|EAN 4012195074595
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 18 mm and 22 mm.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| for rail with slot width (with interval), min. | 18 mm |
|---|---|
| for rail with slot width (with interval), max. | 22 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 3 Nm |
| Mounting type | Profile rail |
| for 1 cable H | 42 mm |
| for 1 cable L | 34 |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 12 mm |
| Dimension | 8-12mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
Dimensions
| Dimension L | 34 mm |
|---|---|
| Dimension A | 20 mm |
| Dimension B | 16 mm |
| Dimension H | 42 mm |
| Dimension t | 1,5 mm |
| Dimension C | 34 mm |
| Dimension x | 5 mm |
| Dimension G (mm) | M6 |
Environmental Data
0,1706 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1706 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056U 12 A2
3
8
12
1178504
2056U 28 A2
3
22
28
1178539
2056U 52 A2
5
46
52
1178571
2056U 70 A2
5
64
70
1178628
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
2056U 12 A2
Item no.
1178504
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
2056U 28 A2
Item no.
1178539
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
2056U 52 A2
Item no.
1178571
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
2056U 70 A2
Item no.
1178628
Max. Tightening torque
5
Clamping range D, min.
64
Clamping range D, max.
70
