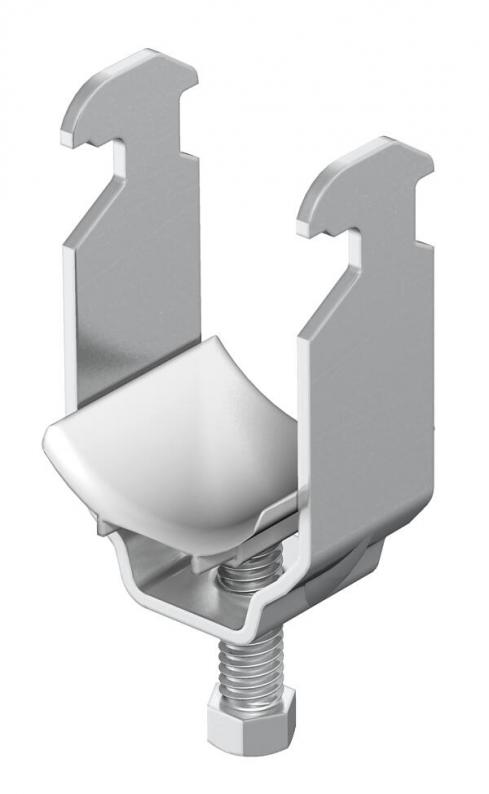

Clamp clip, single, plastic pressure trough, A2
Type 2056 46 A2
|Item no. 1159577
|EAN 4012195063971
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 25 piece
25piece
piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Stainless steel clip and bolt.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Stainless steel clip and bolt.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Technical data
Technical data
| for rail with slot width (with interval), min. | 16 mm |
|---|---|
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | Untreated |
| Material addition | Rustproof steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| ROHS-conformant | yes |
| Clamping range D, min. | 40 mm |
| Clamping range D, max. | 46 mm |
| Dimension | 40-46mm |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| Product series | 2056 / 2058 |
Dimensions
| Dimension L | 44,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 51 mm |
| Dimension H | 79 mm |
| Dimension t | 2 mm |
| Dimension C | 40 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
Environmental Data
0,553 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,553 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056 46 A2
5
40
46
1159577
2056 58 A2
5
52
58
1159593
2056 64 A2
5
58
64
1159607
Clamping range D, min.
Clamping range D, max.
2056 46 A2
Item no.
1159577
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
2056 58 A2
Item no.
1159593
Max. Tightening torque
5
Clamping range D, min.
52
Clamping range D, max.
58
2056 64 A2
Item no.
1159607
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
