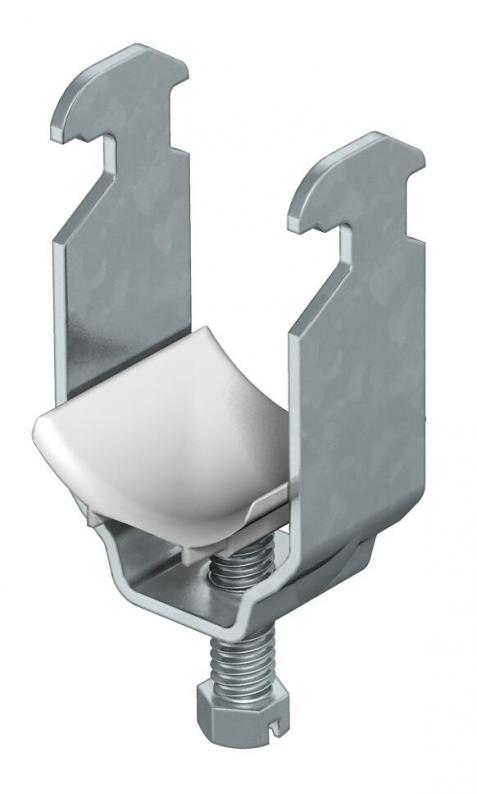

Clamp clip, single, plastic pressure trough, FT
Type 2056 40 FT
Item no. 1160400
EAN 4012195064756
Item no. / Type
1160400 / 2056 40 FT
Max. Tightening torque
5 Nm
Clamping range D, min.
34 mm
Clamping range D, max.
40 mm
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| for rail with slot width (with interval), min. | 16 mm |
|---|---|
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 1 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| ROHS-conformant | yes |
| Clamping range D, min. | 34 mm |
| Clamping range D, max. | 40 mm |
| Dimension | 34-40mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |
| Product series | 2056 / 2058 |
Dimensions
| Dimension L | 37,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 45 mm |
| Dimension H | 72 mm |
| Dimension t | 2 mm |
| Dimension C | 34 mm |
| Dimension x | 5,5 mm |
| Dimension G (mm) | M8 |
Environmental Data
0,164 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,164 kg CO₂e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,164 kg CO₂e |
| Determination date of CO2 value | 2025-04-02T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
