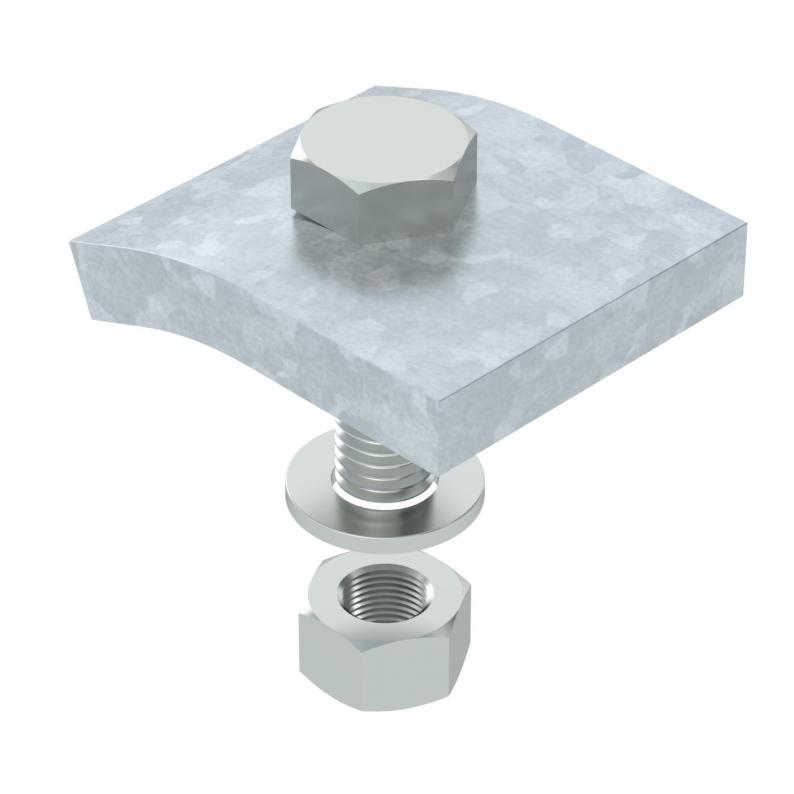

Clamping angle KWS FT
Type KWS 5 FT
|Item no. 6355218
|EAN 4012196194773
Item no. / Type
Height
kN de F
Smallest selling unit: 10 Pair
10Pair
Pair
Description
Clamping angle, with hexagonal bolt, type KWS, for direct fixing of constructions to steel girder flanges.
Choose the clamping angle according to the thickness of the flange.
Technical data

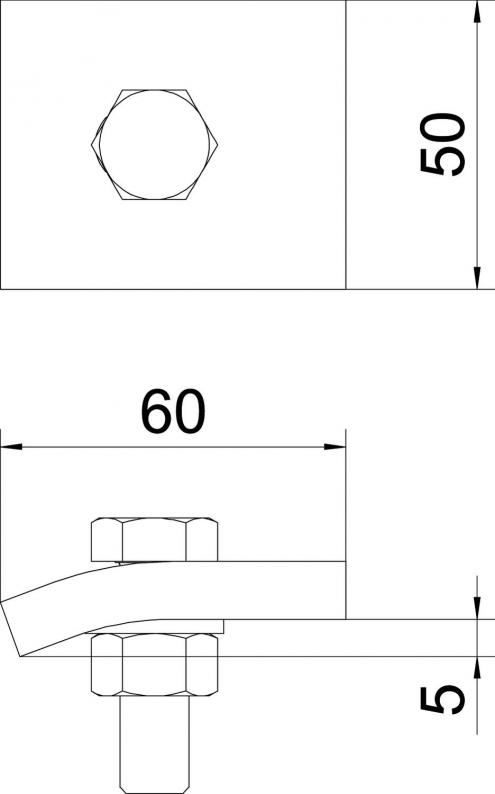

Dimensions
| Height | 5 mm |
|---|
Technical data
| Thread metric | 12 |
|---|---|
| Vida | M12 x 40 |
| kN de F | 5,7 kN |
| Boyut | 60x50 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 1,3012 kg CO2e / 2 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Height
kN de F
Item no.
KWS 5 FT
5
5,7
6355218
KWS 10 FT
10
5,7
6355226
KWS 15 FT
15
5,7
6355234

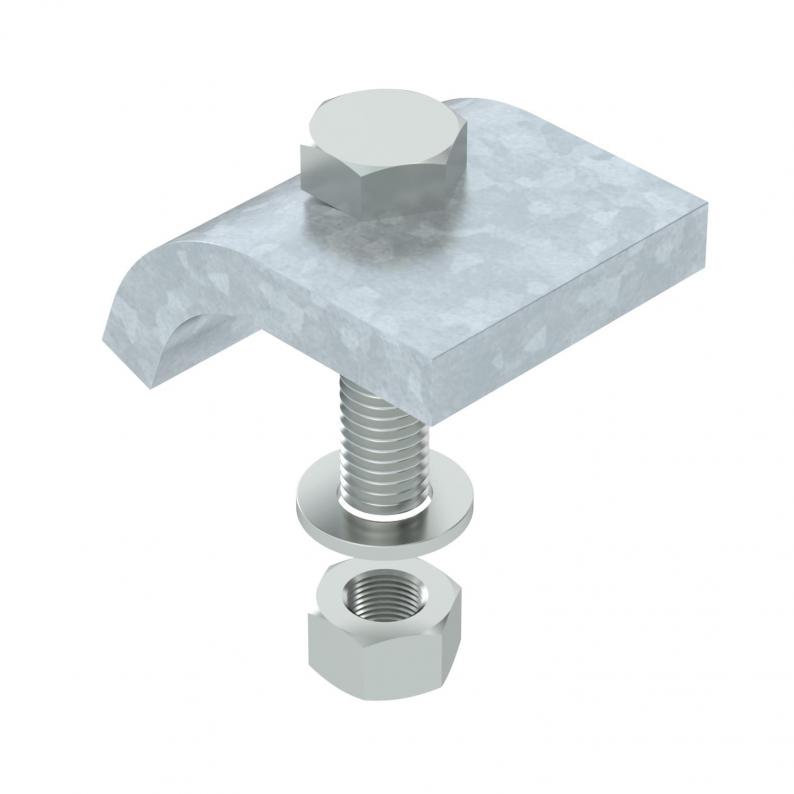

KWS 20 FT
20
5,7
6355242
KWS 25 FT
25
5,7
6355250
