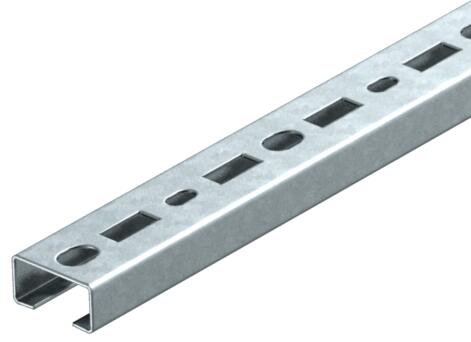

CMS3518 profile rail, slot 17 mm, perforated FT

CMS3518 profile rail, slot 17 mm, perforated FT

Type CMS3518P1000FT
|
Item no. 1104598
|
EAN 4012196471041
Show all variants
Item no. / Type
Length
Width
Height
Material thickness

Smallest selling unit: 10 m

m

Description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

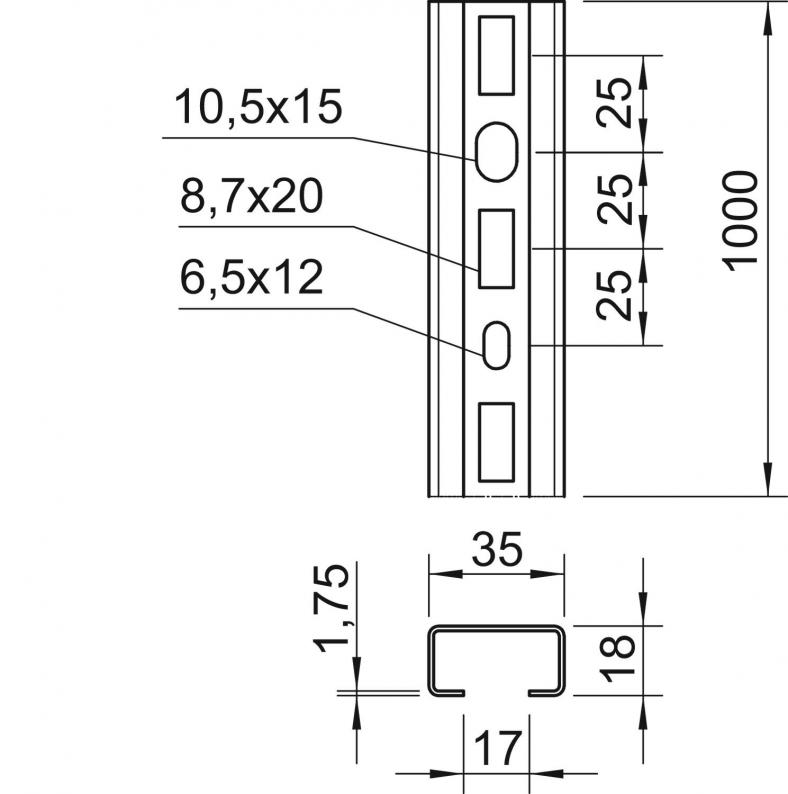

Dimensions

Length1000 mm
Width35 mm
Height18 mm
Dimension L1000 mm

Technical data

Maintain electrical functionsyes
Rustproof steel, pickledno
Slot width17 mm
Material thickness1,75 mm
Static value A0,88 cm²
Static value ly0,41 cm⁴
Static value lz1,81 cm⁴
Static value Wy0,41 cm³
Static value Wz1,03 cm³
Profile shapeC profile
Type of perforationPerforated back
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension1000x35x18
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

2,2703 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,2703 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Length
CMS3518P1000FT
Item no.
1104598
Length
1000
Width
35
Height
18
Material thickness
1,75
Surface
Hot-dip galvanised
Material
Steel
CMS3518P2000FT
Item no.
1104599
Length
2000
Width
35
Height
18
Material thickness
1,75
Surface
Hot-dip galvanised
Material
Steel
