Collision guard for industrial pole
Type ISS160160AS WA
|Item no. 6290422
|EAN 4012196191505
Item no. / Type
6290422 / ISS160160AS WA
Length
250 mm
Width
166 mm
Smallest selling unit: 1 piece
1piece
piece
Description

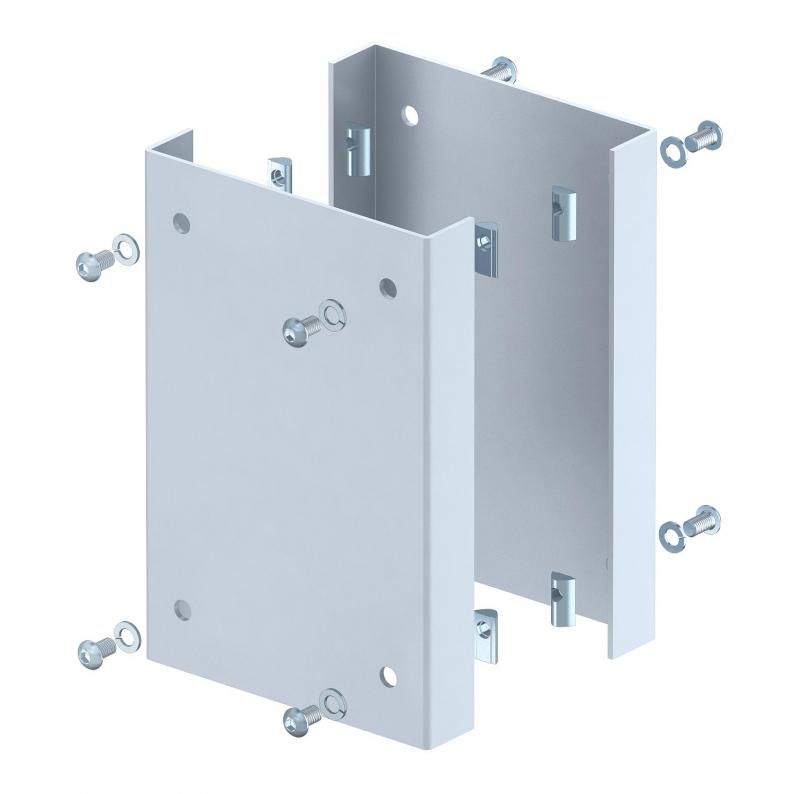

Collision guard as mechanical protection of the ISS industrial pole in the bottom area. The scope of delivery comprises of two U-shaped protection profiles made from 3 mm sheet steel and eight fastening screws with slot nuts to install on the pole profile.
Technical data

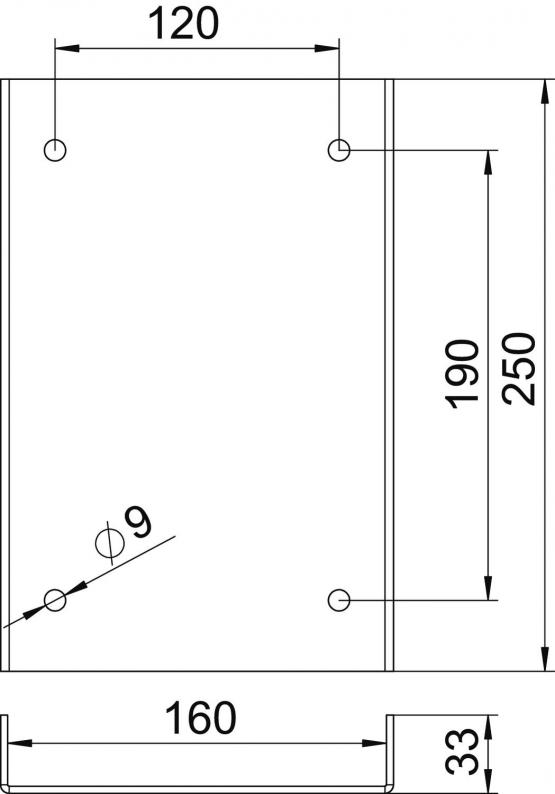

Dimensions
| Length | 250 mm |
|---|---|
| Width | 166 mm |
| Height | 33 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK10 |
| Type of accessory | Arrival protection |
| Kullanılabilir sıcaklık aralığı min. | -25 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 250x166x33 |
| Material | Steel |
| Colour | White aluminium; RAL 9006 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 7,7348 kg CO2e / 1 Piece |
|---|
