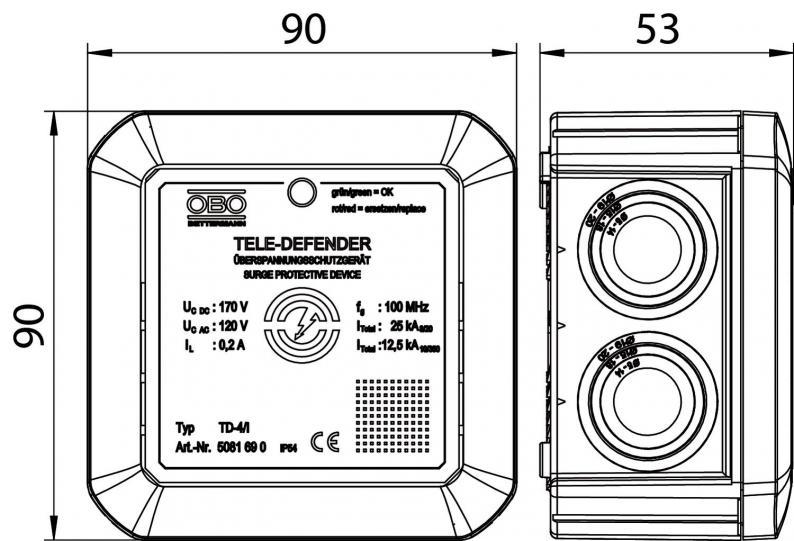

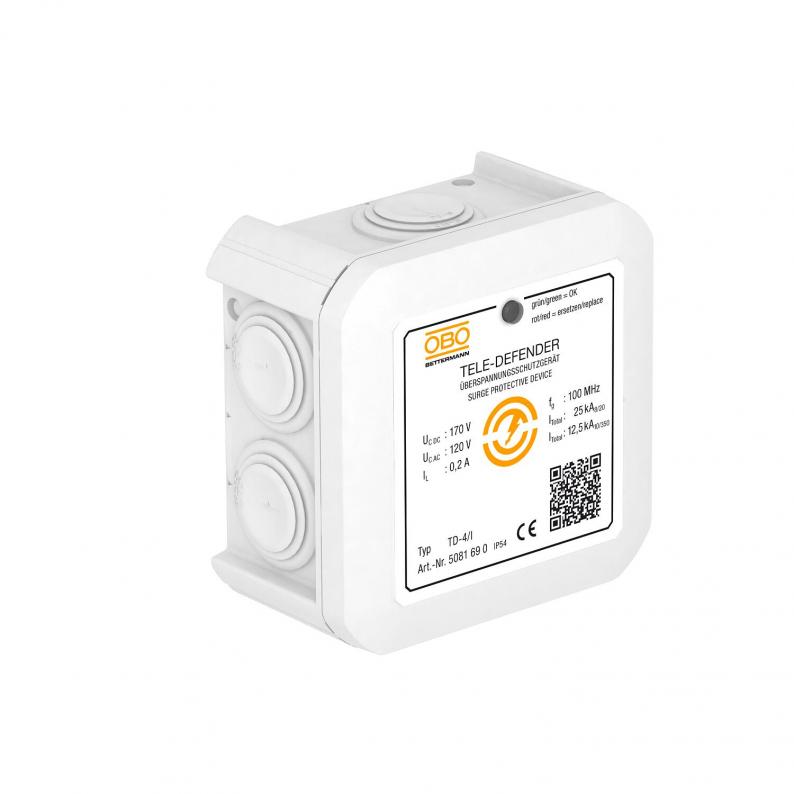

Combination protection device TD-4/I for ISDN and DSL systems

Combination protection device TD-4/I for ISDN and DSL systems

Type TD-4/I
|
Item no. 5081690
|
EAN 4012196034352
Show all variants
Item no. / Type
5081690 / TD-4/I
Kutup sayısı
4
Plug-in system
RJ11
Maximum continuous voltage AC
120 V
Maximum continuous voltage DC
170 V

Smallest selling unit: 1 piece

piece

Description

Data cable protection device for telecommunications equipment

• Low protection level at a high current load
• "Push-in" terminals for quick installation
• Bandwidth-optimised for secure transmission
• Surface mounting
• Visual function display
Application: DSL systems, IP connections, ISDN or analogue telecommunications
  • 5 yıl garanti
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Koruma sınıfı IP 44
  • LPZ 0'dan 3'e kadar geçiş
  • Integrated Service Digital Network, ISDN-Uygulamaları
  • Digital Subscriber Line, DSL uygulamaları
  • Analog telekomünikasyon
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Kutup sayısı4
Telekomünikasyon kontağıno
Cihazda sinyalizasyonVisual
Plug-in systemRJ11
Koruma seviyesi damar/damar<300 V
Koruma seviyesi damar/toprak<650 V
Koruma sınıfıIP54
Test standardıIEC 61643-21
Yol başına seri direnç9 Ω ± 10 %
Capacity (wire-wire)<50 pF
Capacity (wire-earth)<10 pF
Explosion-tested versionno
Insulation resistance>1 MΩ
Shielding connection availableyes
ScreeningIndirect
Impulse durability wire-wireC2: 18 kV / 9 kA (8/20µs)
Impulse durability wire-earthC2: 18 kV / 9 kA (8/20µs)
Total discharge current (10/350)D1: 12,5 kA
Total discharge current (8/20)25 kA
Protection level, shield-earth (S-PE)850 V
Nominal load current DC0,2 A
Nominal load current AC0,14 A
Arrestor monitoringno
Maximum continuous voltage AC120 V
Maximum continuous voltage DC170 V
Cut-off frequency100 MHz
SPD to IEC 61643-21Class I+II+III / D1+C2+C1
KategorieType 1+2+3 / D1+C2+C1
Lightning protection zone LPZ0→3
İmpuls akımı2,5 kA
Ekleme kaybı (Insertion loss)≤3 dB
Bağlantı kesiti, sabit maks.0,75 mm²
Bağlantı kesiti, çok telli min.0,14 mm²
Bağlantı kesiti, çok telli maks.0,75 mm²
Kullanılabilir sıcaklık aralığı min.-40 °C
Kullanılabilir sıcaklık aralığı maks.80 °C
Boyut170V
MaterialPlastic
ColourWhite

Connectivity options

Bağlantı kesiti, sabit min.0,14 mm²
Bağlantı kesiti, esnek min.0,14 mm²
Bağlantı kesiti, esnek maks.0,75 mm²

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,4171 kg CO2e / 1 Piece
