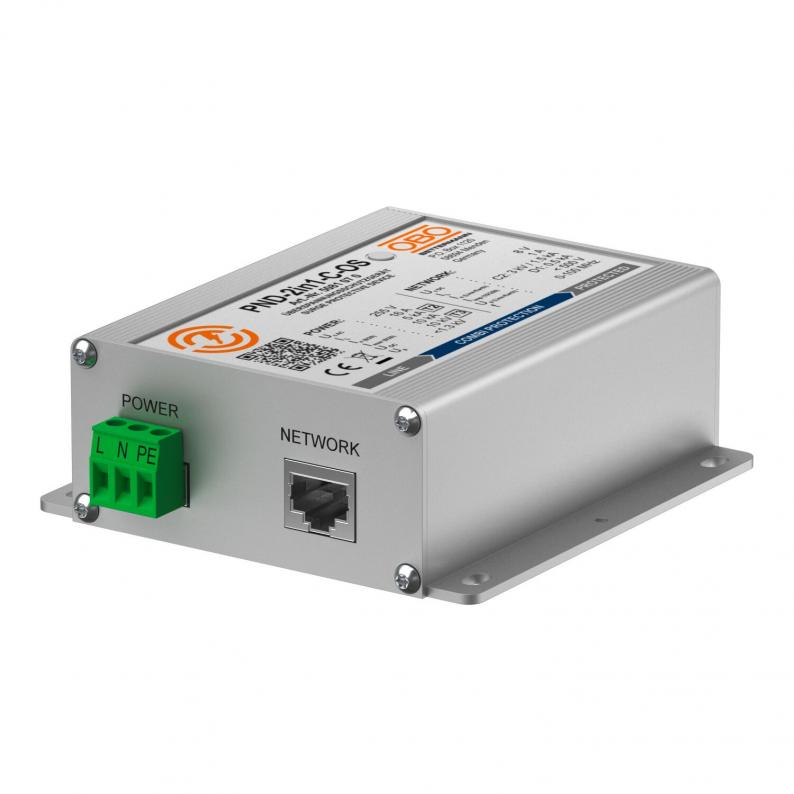

Combined protection device 2in1 for CCTV camera systems
Type PND-2in1-C-OS
|Item no. 5081070
|EAN 4012196676965
Item no. / Type
5081070 / PND-2in1-C-OS
Plug-in system
RJ45 8(8)
Maximum continuous voltage DC
8 V
Smallest selling unit: 1 piece
1piece
piece
Description
Combination protection device for IP-based TV/camera systems
• Protection of power and data interface in a single device
• In aluminium housing
• Simple mounting with adapter plug
• Two-stage protection circuit
• Three-pole power connection for the power interface
• RJ45 connection for the data interface
• With LED operation display (OS)
• Incl. DIN rail fastening set
Application: Protection of CCTV, video signals, (IP) cameras and/or TV systems
• Protection of power and data interface in a single device
• In aluminium housing
• Simple mounting with adapter plug
• Two-stage protection circuit
• Three-pole power connection for the power interface
• RJ45 connection for the data interface
• With LED operation display (OS)
• Incl. DIN rail fastening set
Application: Protection of CCTV, video signals, (IP) cameras and/or TV systems
Technical data

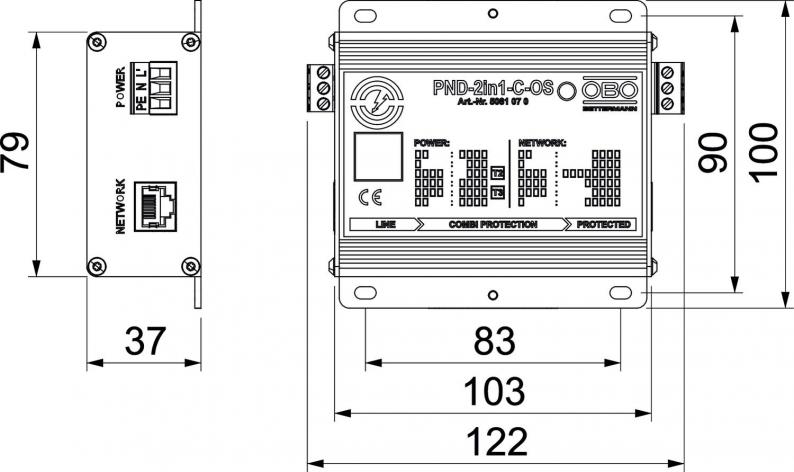

Dimensions
| Length | 122,5 mm |
|---|---|
| Width | 100 mm |
| Height | 37,1 mm |
Technical data
| Plug-in system | RJ45 8(8) |
|---|---|
| Koruma seviyesi damar/damar | <40 V |
| Koruma seviyesi damar/toprak | <450 V |
| Koruma sınıfı | IP20 |
| En yüksek sürekli gerilim (L-N) | 255 V |
| Test standardı | IEC 61643-21 |
| Earthing via: | Connection cable / DIN rail |
| Shielding connection available | yes |
| Screening | Direct |
| Impulse durability wire-wire | C1: 0,3 kV / 0,15 kA (8/20µs) |
| Impulse durability wire-earth | C2: 3 kV / 1,5 kA (8/20µs) |
| Maximum continuous voltage AC | 5,65 V |
| Maximum continuous voltage DC | 8 V |
| Nominal discharge current (8/20 µs) | 5 kA |
| Cut-off frequency | 100 MHz |
| SPD to IEC 61643-21 | Class I+II+III / D1+C2+C1 |
| Kategorie | Type 1+2+3 / D1+C2+C1 |
| SPD to IEC 61643-1 | Class II+III |
| EN 61643-11 standardına göre talep sınıfı | Type 2+3 |
| Lightning protection zone LPZ | 1→3 |
| Protection level | <1,3 kV |
| Maximum discharge current (8/20 μs) | 10 kA |
| Anma yük akımı | 10 A |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 230V |
Network
| Frequency range, min. | 0 |
|---|
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 2,4562 kg CO2e / 1 Piece |
|---|
