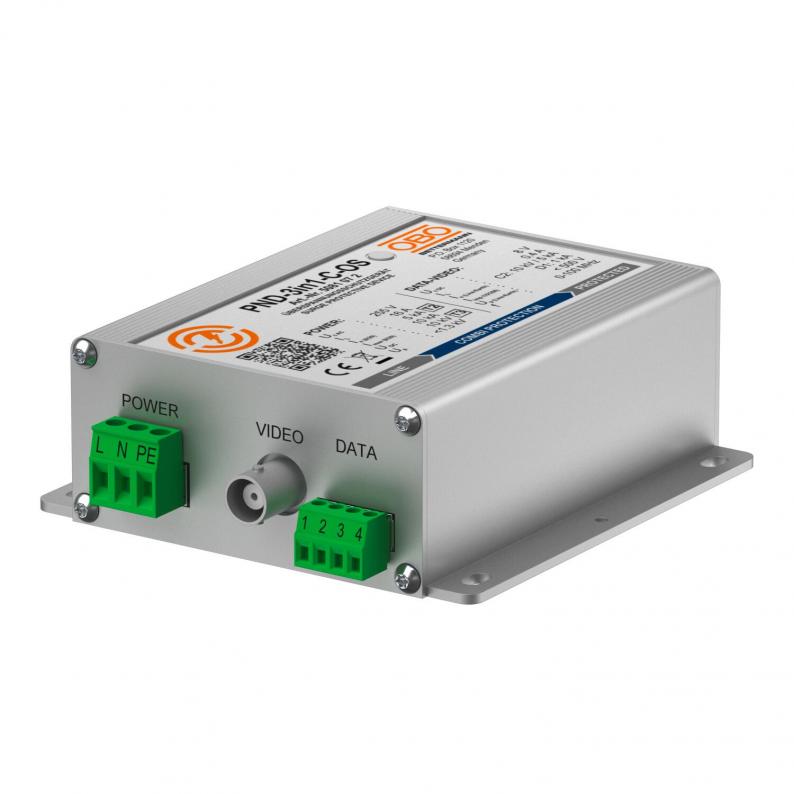

Combined protection device 3in1 for CCTV camera systems
Type PND-3in1-C-OS
|Item no. 5081072
|EAN 4012196676972
Item no. / Type
5081072 / PND-3in1-C-OS
Plug-in system
BNC
Smallest selling unit: 1 piece
1piece
piece
Description
Combination protection device for coaxial TV/camera systems
• Protection of power and data interfaces in a single device
• In aluminium housing
• Simple mounting with adapter
• Two-stage protection circuit
• Three-pole power connection for the power interface
• With LED operation display (OS)
• Incl. DIN rail fastening set
Application: Protection of CCTV, video signals, cameras and/or TV systems
• Protection of power and data interfaces in a single device
• In aluminium housing
• Simple mounting with adapter
• Two-stage protection circuit
• Three-pole power connection for the power interface
• With LED operation display (OS)
• Incl. DIN rail fastening set
Application: Protection of CCTV, video signals, cameras and/or TV systems
Technical data
Dimensions
| Length | 122,5 mm |
|---|---|
| Width | 100 mm |
| Height | 37,1 mm |
Technical data
| Plug-in system | BNC |
|---|---|
| Koruma sınıfı | IP20 |
| En yüksek sürekli gerilim (L-N) | 255 V |
| Channel performance Ansi/EA | CAT 5e |
| Channel performance ISO/IEC | Class E |
| Earthing via: | Connection cable / DIN rail |
| Nominal discharge current (8/20 µs) | 5 kA |
| SPD to IEC 61643-1 | Class II+III |
| EN 61643-11 standardına göre talep sınıfı | Type 2+3 |
| Lightning protection zone LPZ | 1→3 |
| Protection level | <1,3 kV |
| Maximum discharge current (8/20 μs) | 10 kA |
| Anma yük akımı | 16 A |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 80 °C |
| Boyut | 230V |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 2,4524 kg CO2e / 1 Piece |
|---|
