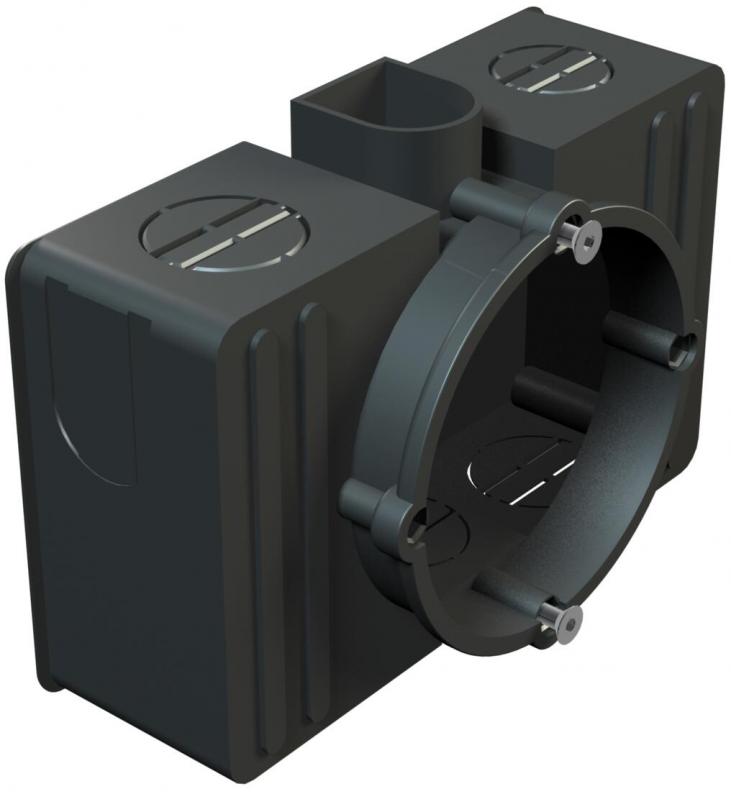

Concealed accessory/connection box
Type UG 60 VK
|Item no. 2003023
|EAN 4012195003571
Item no. / Type
2003023 / UG 60 VK
Height
48 mm
Diameter
60 mm
No. of entries
8
for pipe diameter
20 mm
This item is a discontinued product!
Smallest selling unit: 10 piece
10piece
piece
Description
Device/connection socket with increased socket volume on both sides of the device installation opening to accept connection terminals. Torsion-resistant guaranteed standard combination spacing of 71 mm (to DIN 49 073-1) through snap–lock coupling. Break-out openings for cables and pipes of up to Ø 21 mm, low-lying plaster brackets,
device bolt spacing 60 mm, for screw fastening with 3.2 mm self-tapping screws,
with 4 screw bosses and 2 device screws, protection rating IP20.
device bolt spacing 60 mm, for screw fastening with 3.2 mm self-tapping screws,
with 4 screw bosses and 2 device screws, protection rating IP20.

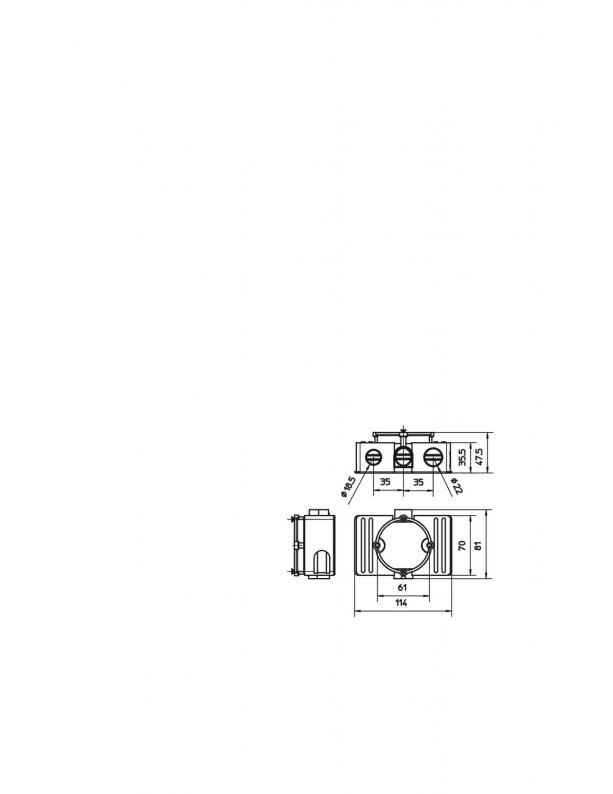

Technical data

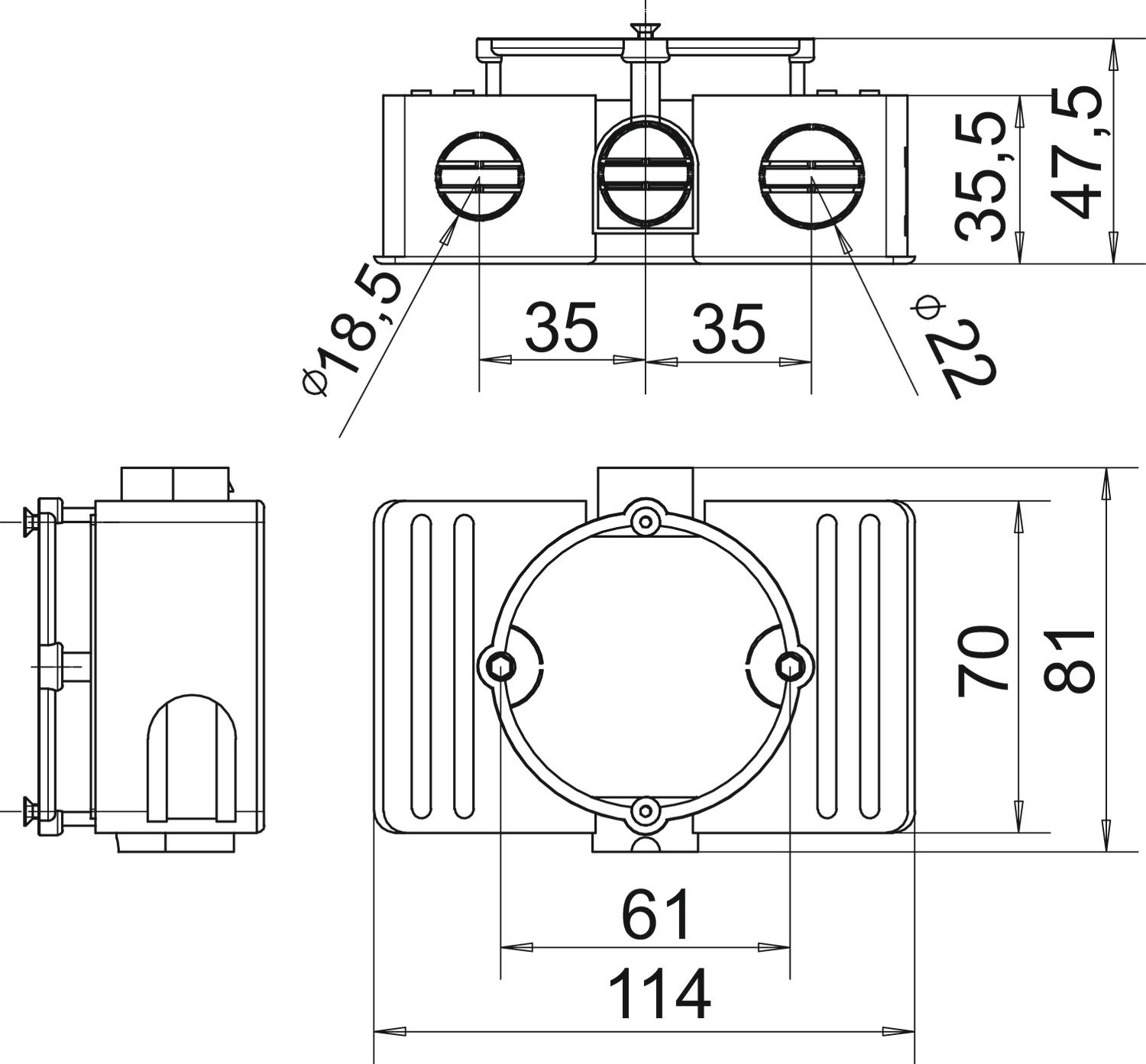

Dimensions
| Length | 110 mm |
|---|---|
| Width | 70 mm |
| Height | 48 mm |
Technical data
| Type of entry | break-out openings for cables and pipes to Ø 21 mm |
|---|---|
| Impact-resistant | yes |
| Floor height, min. | 50 mm |
| Number of switch boxes | 1 |
| Accessory screw clearance | 60 mm |
| Diameter | 60 mm |
| Halogen-free | yes |
| No. of entries | 8 |
| Device fixing | Screws , |
| Entry from rear | no |
| Protection rating | IP20 |
| Sealable | no |
| Maintain electrical functions | Without |
| Type of housing penetration | Pre-marking |
| With screening | no |
| for pipe diameter | 20 mm |
| With bolts | yes |
| Airtight | no |
| With nail strap | no |
| Support | Tunnel support |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Diameter, interior | 60 mm |
| Shape | Rectangular |
| Equipment | Without |
| Cover | Without |
| Cover fastening | Not applicable |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | 70x110x48 |
| Material | Polystyrene |
| Colour | Black |
| Rated voltage | 400 V |
