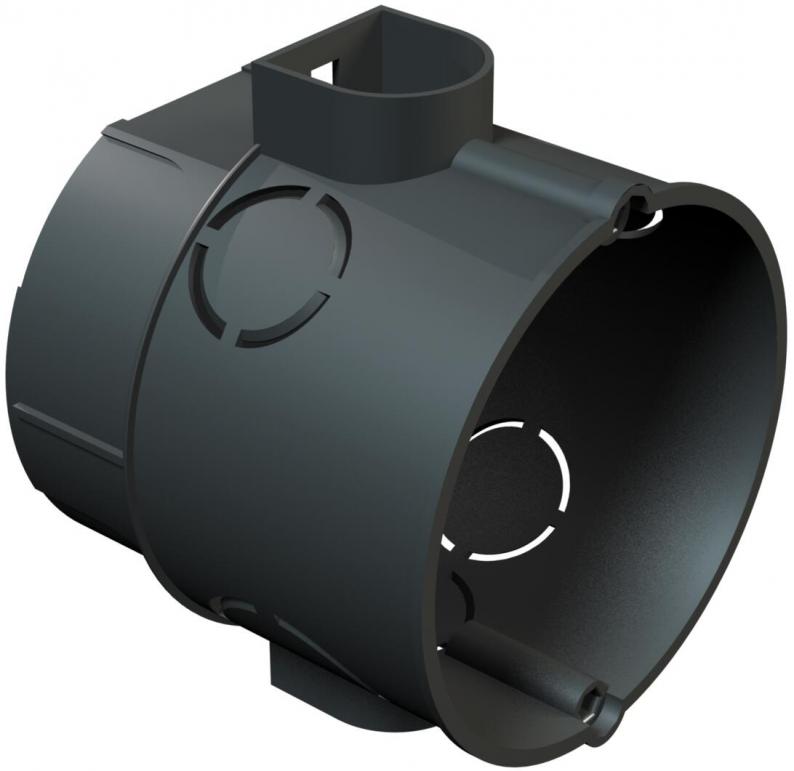

Concealed accessory/connection socket

Concealed accessory/connection socket

Type UG 60 VD
|
Item no. 2003019
|
EAN 4012195002314
Show all variants
Item no. / Type
2003019 / UG 60 VD
Height
60 mm
Diameter
60 mm
No. of entries
13
for pipe diameter
20/25 mm

This item is a discontinued product!

Smallest selling unit: 25 piece

piece

Description

Device/connection socket with torsion-resistant guaranteed standard combination spacing of 71 mm (to DIN 49 073-1) through Snap–lock coupling. Break-out openings for cables and pipes Ø 20 mm and Ø 25 mm. Combinable for spreading and screw fastening, low-lying plaster brackets, device bolt spacing 60 mm, for screw fastening with 3.2 mm self-tapping screws, with 2 screw bosses without screws, protection rating IP20.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • STOWARZYSZENIE ELEKTRYKÓW POLSKICH, Poland
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Diameter 60 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Height60 mm

Technical data

Type of entrybreak-out openings for cables and pipes Ø 20 mm and Ø 25 mm
Floor height, min.64 mm
Number of switch boxes1
Accessory screw clearance60 mm
Diameter60 mm
No. of entries13
Device fixingScrew or spread
Entry from rearno
Protection ratingIP20
Sealableno
Maintain electrical functionsWithout
Type of housing penetrationPre-marking
With screeningno
for pipe diameter20/25 mm
With boltsno
Airtightno
With nail strapno
SupportTunnel support
Nominal cross-section, min.1,5 mm²
Nominal cross-section, max.2,5 mm²
Diameter, interior60 mm
ShapeRound
EquipmentWithout
CoverWithout
Cover fasteningNot applicable
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C

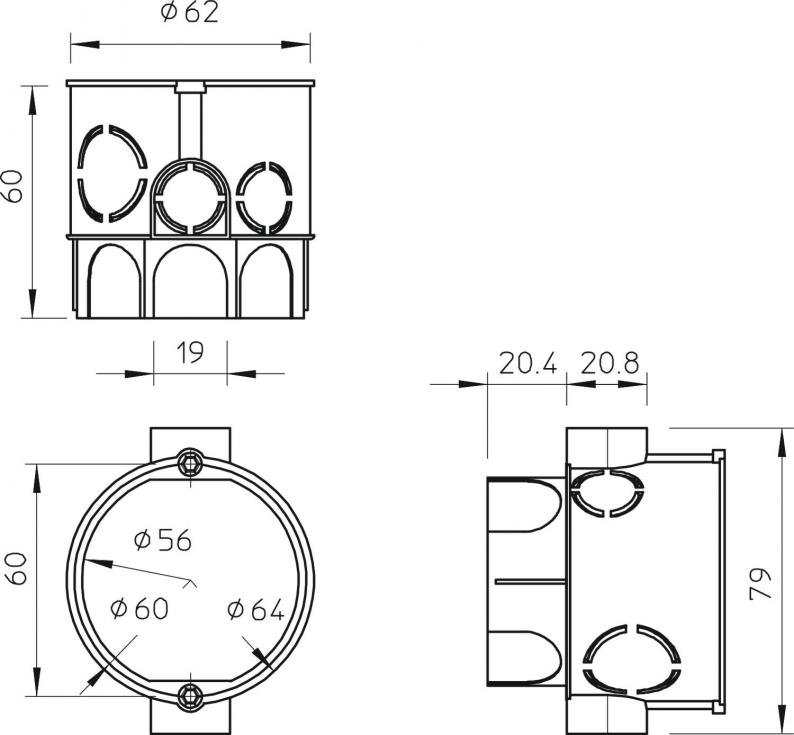

DimensionØ60mm, H60mm
MaterialPolystyrene
ColourBlack
Rated voltage400 V

Environmental Data

0,0588 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0588 kg CO₂e / 1 Piece
