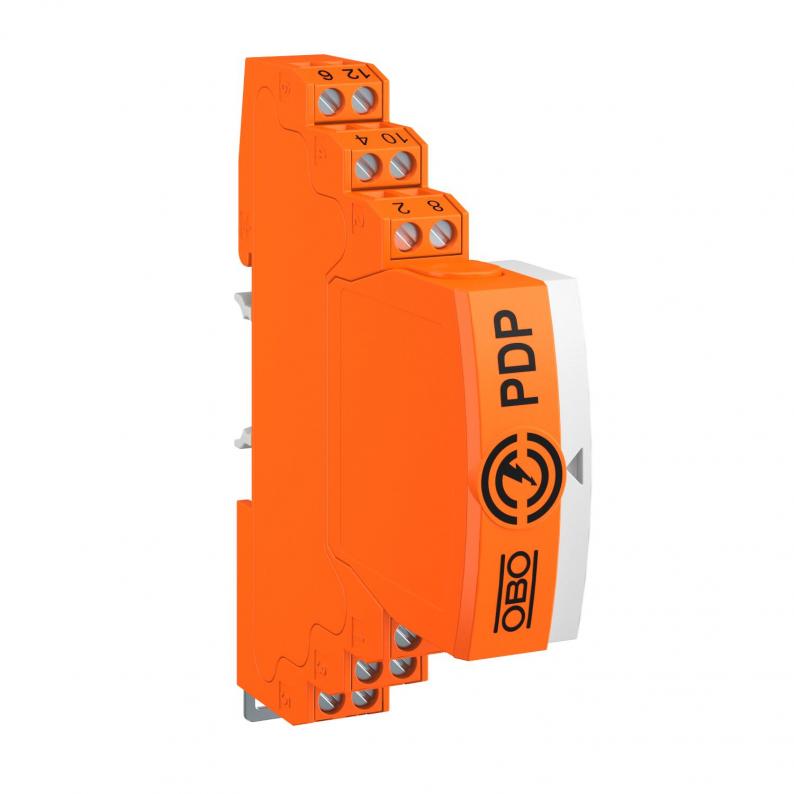

Connectable data cable protection, 2-pole, indirect earthing, with visual signalling, 5 V

Connectable data cable protection, 2-pole, indirect earthing, with visual signalling, 5 V

Type PDP-2-5-I-OS
|
Item no. 5080349
|
EAN 4012196742219
Show all variants
Item no. / Type
Plug-in system
Maximum continuous voltage AC
Maximum continuous voltage DC

Smallest selling unit: 1 piece

piece

Description

Plug-in data cable protection type 1+2/D1=C2 for the use in measurement, control and regulation technology

• Protective device for multi-wire systems
• Indirect shield earthing
• Frequency range to 100 MHz
• Earthing possible via the DIN rail or the connection cable
• Narrow structural width of 17.5 mm
• Hight level of system availability – no signal disruption without protection module
With visual signalling and the option of remote signalling via the voltage supply PDP-PS
• Integrated bus connector included

Application: Universal lightning and surge protection for data transmission devices in MCR technology.
  • 5 yıl garanti
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Ölçme, kontrol ve ayar tertibatları
  • LPZ 0'dan 2'ye kadar geçiş.
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)

Technical data

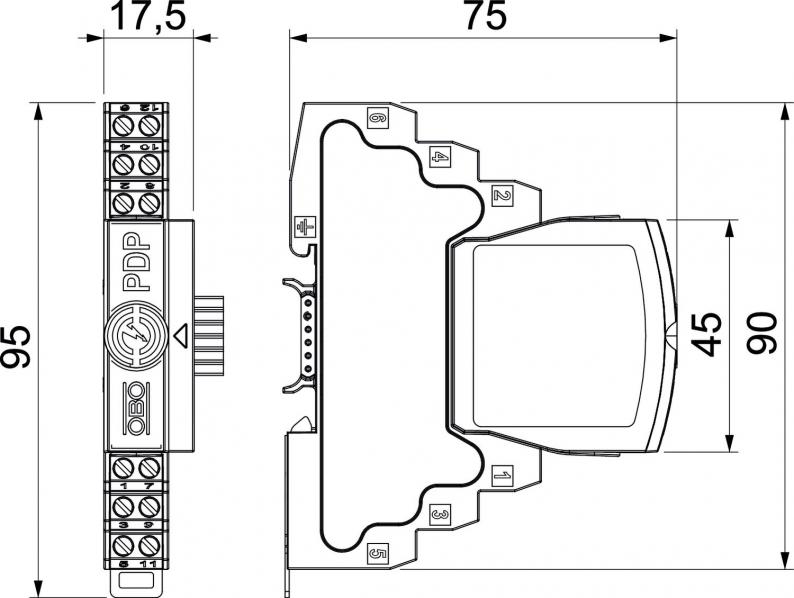

Dimensions

Length75 mm
Width17,5 mm
Height95 mm

Technical data

Kutup sayısı4
Lengthwise resistance1.2 ± 5%
Cihazda sinyalizasyonNone
Plug-in systemTerminal
Koruma seviyesi damar/damar100 V
Koruma seviyesi damar/toprak1600 V
Koruma sınıfıIP20
Test standardıIEC 61643-21
Yol başına seri direnç1,2 Ω ± 5%
Total impulse durability into C2 (8/20)20 kA
Capacity (wire-wire)≤30 pF
Capacity (wire-earth)≤30 pF
Earthing via:Connection cable / DIN rail
Mounting of input / outputScrew terminals
Shielding connection availableyes
ScreeningIndirect
Impulse durability wire-wire10 kV / 5 kA
Impulse durability wire-earth10 kV / 5 kA
Total discharge current (10/350)2,5 kA
Total discharge current (8/20)20 kA
Protection level, shield-earth (S-PE)1300 V
Nominal load current DC0,6 A
Nominal load current AC0,425 A
Maximum continuous voltage AC4,2 V
Maximum continuous voltage DC6 V
Nominal discharge current (8/20 µs)10 kA
Cut-off frequency100 MHz
Version for2x2-pole
SPD to IEC 61643-21Class I+II / D1+C2
KategorieType 1+2 / D1+C2
SPD to IEC 61643-1Class I+II
EN 61643-11 standardına göre talep sınıfıType 1+2
Lightning protection zone LPZ0→2
İmpuls akımı2,5 kA
Ekleme kaybı (Insertion loss)≤3 dB
Bağlantı kesiti, sabit maks.2,5 mm²
Bağlantı kesiti, çok telli min.0,14 mm²
Bağlantı kesiti, çok telli maks.2,5 mm²
Kullanılabilir sıcaklık aralığı min.-40 °C
Kullanılabilir sıcaklık aralığı maks.80 °C
Boyut5V

Connectivity options

Bağlantı kesiti, sabit min.0,14 mm²
Bağlantı kesiti, esnek min.0,14 mm²
Bağlantı kesiti, esnek maks.1,5 mm²

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya0,811 kg CO2e / 1 Piece
