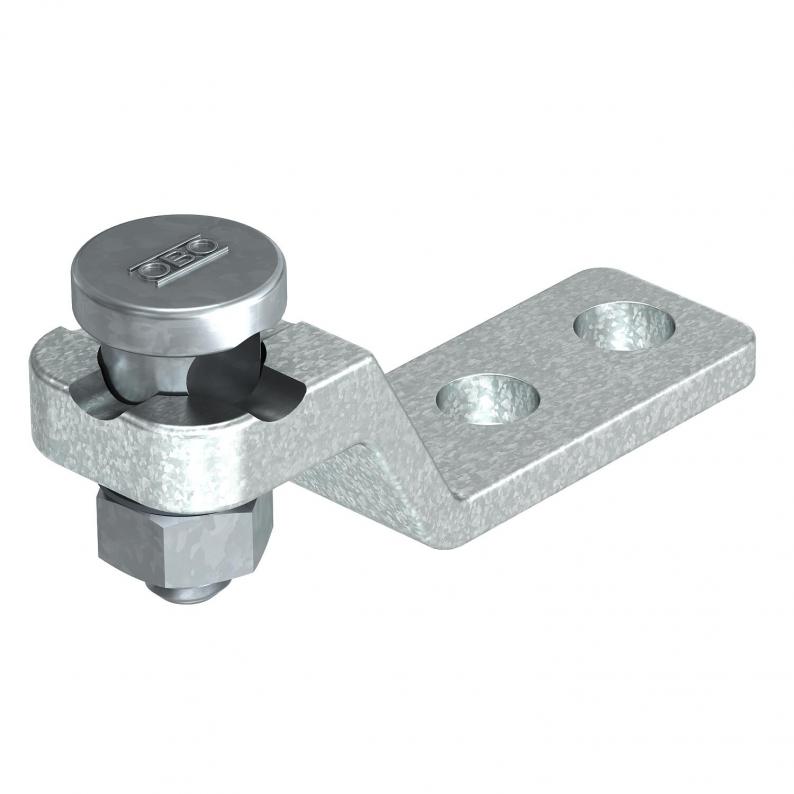

Connection and end piece, DIN version
Type 5005 DIN-FT
|Item no. 5304601
|EAN 4012195416470
Item no. / Type
5304601 / 5005 DIN-FT
Lightning current carrying capacity
H/100 kA
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With 2 attaching holes and 1 fix contact clamping screw 5000…
• With 2 attaching holes Ø 11 mm
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• With 2 attaching holes Ø 11 mm
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Connectors |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Hot galvanized |
| Material | Cast steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,4656 kg CO2e / 1 Piece |
|---|
