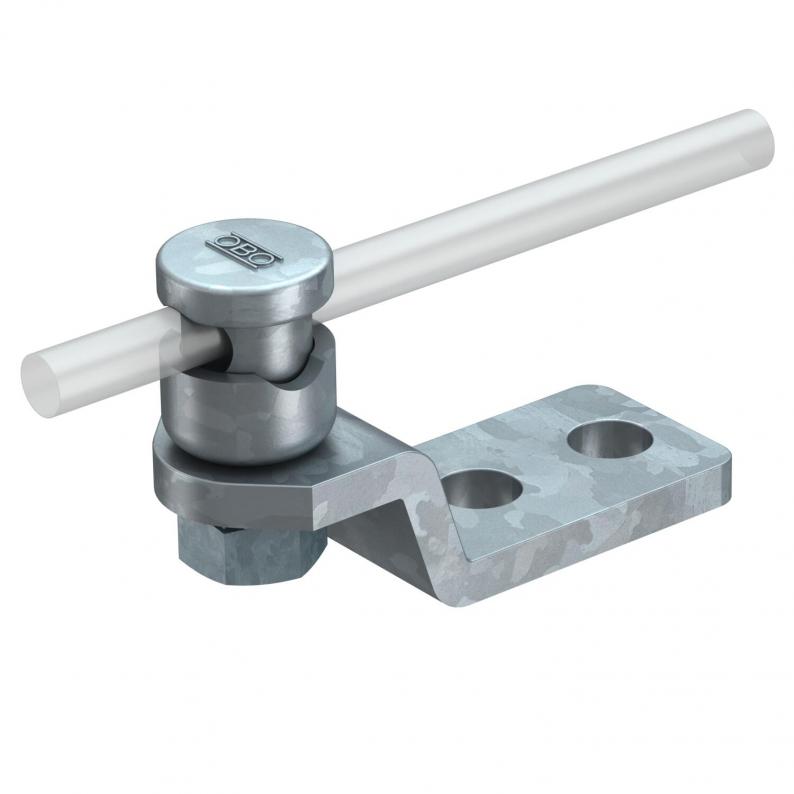

Connection and end piece with connector and pressure trough
Type 5005 N-FT
|Item no. 5304660
|EAN 4012195817758
Item no. / Type
5304660 / 5005 N-FT
Lightning current carrying capacity
H/100 kA
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With 2 attaching holes Ø 11 mm
• Including pre-mounted connector 5001 N
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• Including pre-mounted connector 5001 N
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | End piece |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,378 kg CO2e / 1 Piece |
|---|
