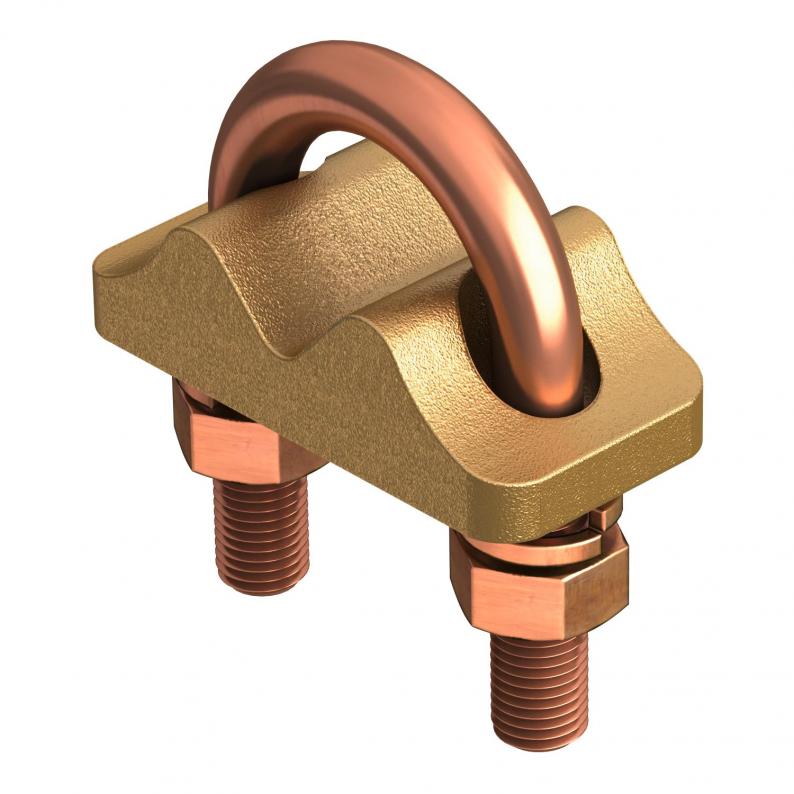

Connection clamp
Type 2740 16
|Item no. 5001511
|EAN 4012196431168
Item no. / Type
5001511 / 2740 16
for earth rods
14,2 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Suitable for connecting round conductors Rd 8-10 or flat conductors with earth rod 219 16 CU
Technical data

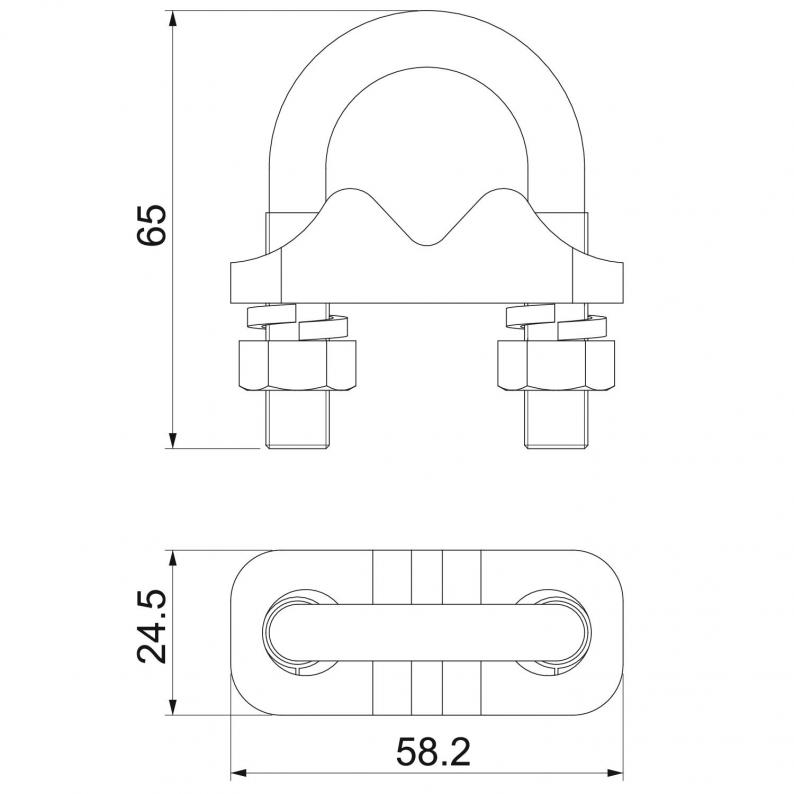

Dimensions
| Length | 59 mm |
|---|---|
| Width | 27 mm |
| Height | 65 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of connector | Connectors |
| Earthing connection diameter | 16 mm |
| Connection | Flat conductor |
| Suitable for round conductor diameters, min. | 8 mm |
| Suitable for round conductor diameters, max. | 10 mm |
| Type | Connection terminal |
| for earth rods | 14,2 mm |
| Fit | FL/ Rd mm |
| Dimension | 59x25x65 |
| Material | Red bronze |
| Clamping range, min. | 8 mm |
| Clamping range, max. | 10 mm |
| Suitable for flat conductor width max. | 25 mm |
Environmental Data
0,4021 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4021 kg CO2e / 1 Piece |
|---|
