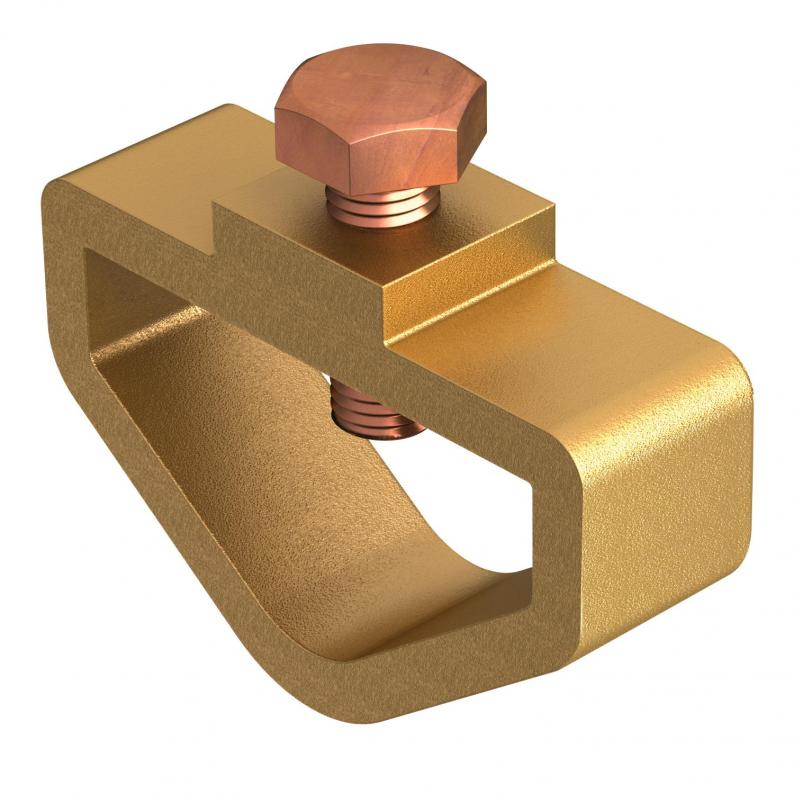

Connection clamp
Type 2745 16 30
|Item no. 5001592
|EAN 4012196431212
Item no. / Type
Smallest selling unit: 10 piece
10piece
piece
Description
• For connection of the copper-plated earth rod, type 219 16 CU, to conductor material
• Type A terminal
• Type A terminal
Technical data

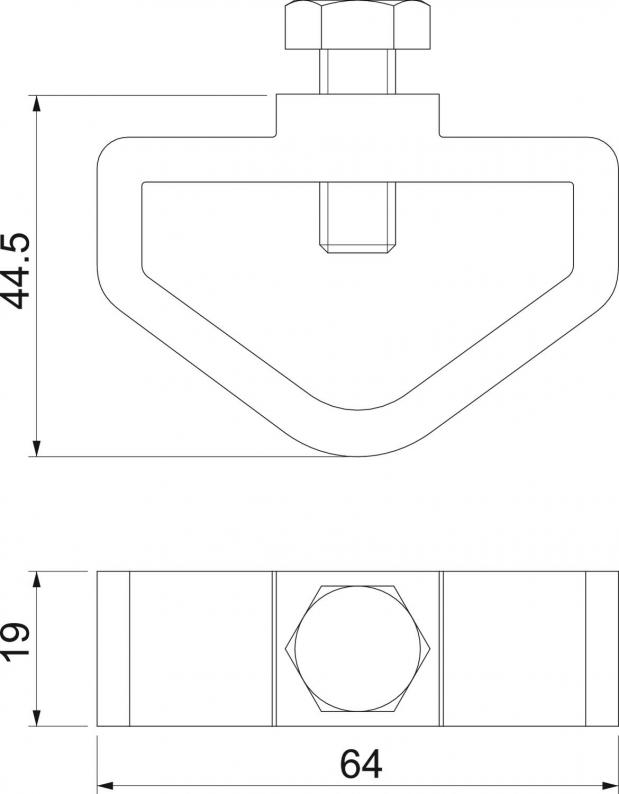

Dimensions
| Length | 64 mm |
|---|---|
| Width | 57 mm |
| Height | 19 mm |
Technical data
| Intermediate plate | no |
|---|---|
| Type of connector | Connectors |
| Connection | Flat conductor |
| Type | Connection sleeve |
| Fit | Rd 14,2/ FL max. 40 x 12 mm |
| Dimension | 64x19x45 |
| Material | Red bronze |
Environmental Data
0,5862 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5862 kg CO2e / 1 Piece |
|---|
