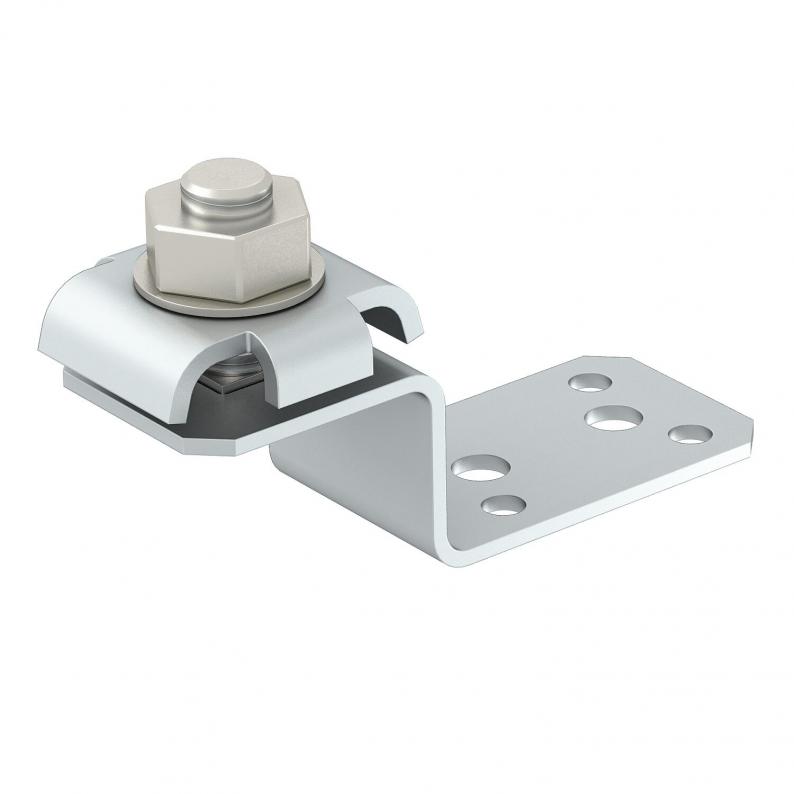

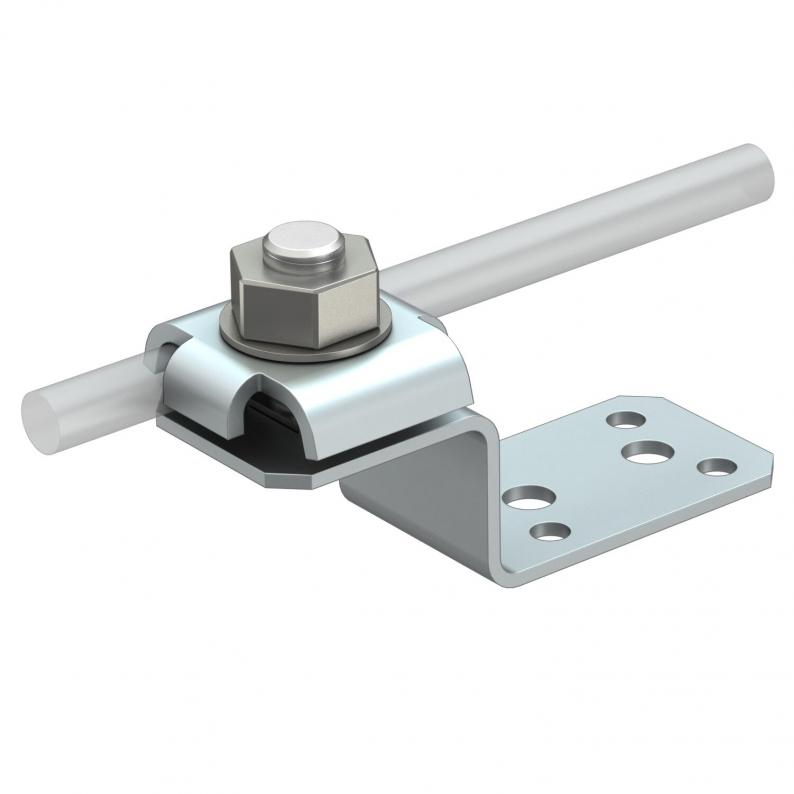

Connection component with double crossbar
Type 287 DCT
|Item no. 5320707
|EAN 4012196127504
Item no. / Type
5320707 / 287 DCT
Lightning current carrying capacity
N/50 kA
Uyumluluk
8 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Corresponds to the requirements according to VDE 0185-305 (IEC 62305)
• Quick mounting thanks to an M10x30 bolt made of rustproof stainless steel
• With spring washer
• 4 fastening holes Ø 5.2 mm
• 2 fastening holes Ø 6.9 mm
• Quick mounting thanks to an M10x30 bolt made of rustproof stainless steel
• With spring washer
• 4 fastening holes Ø 5.2 mm
• 2 fastening holes Ø 6.9 mm
Technical data
Technical data
| Type of fastening screw | Gutter bolt |
|---|---|
| Type of connector | Connection terminal |
| Suitable for round conductor diameters, min. | 8 mm |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | 8 mm |
| Boyut | 82x30x26 |
| Material | Aluminium |
| Colour | aluminium |
| Clamping range, min. | 8 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,3976 kg CO2e / 1 Piece |
|---|
