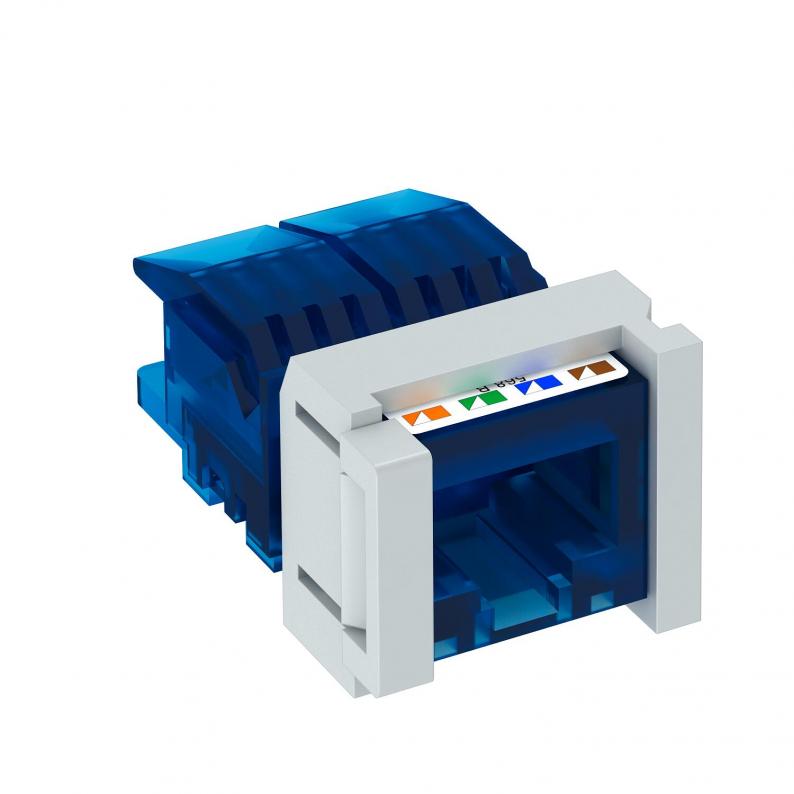

Connection module Cat. 6, unshielded, snap-in
Type ASM-C6 S
|Item no. 6117349
|EAN 4012195402459
Item no. / Type
Mounting opening
Smallest selling unit: 1 piece
1piece
piece
Description
Connection module Cat. 6 unshielded, with an RJ45 slot. Including a dust cover, a cable tie, a snap-in fastening frame and mounting instructions. Suitable for installation in support plates, type MTM 2C and MTM 3C, mounting plate type MPR2 2C, mounting support type MTGE2 2C, MTGE2 15 2C and MTGE2 F 2C.
Technical data

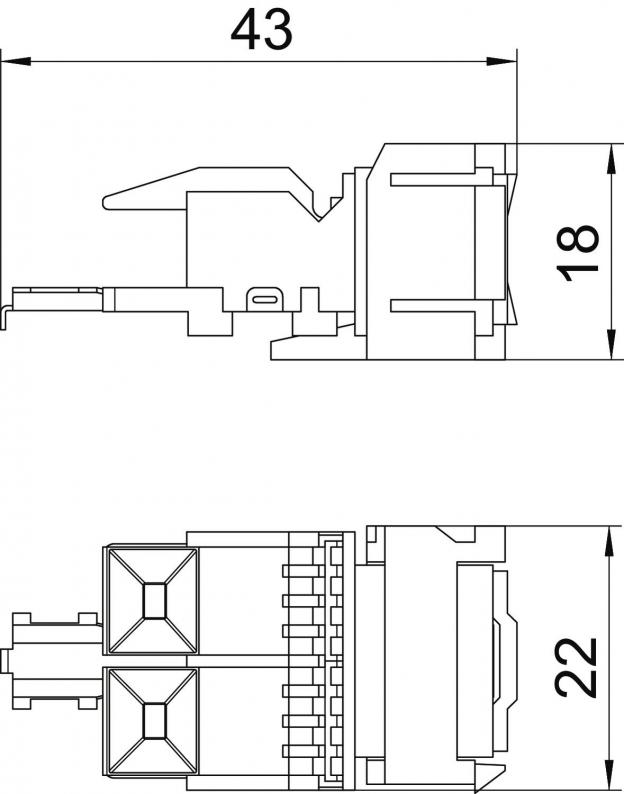

Dimensions
| Length | 43 mm |
|---|---|
| Width | 22 mm |
| Height | 18 mm |
Technical data
| With screening | no |
|---|---|
| Mounting opening | Type C |
| Category | 6 |
Environmental Data
0,0492 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0492 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)
Variants
Type
Ekranlamalı
Mounting opening
Item no.
ASM-C6 G
yes
Type RM
6117329
ASM-C6
no
Type RM
6117341
ASM-C6 GS
yes
Type C
6117345
ASM-C6 S
no
Type C
6117349
Ekranlamalı
Mounting opening
ASM-C6 G
Item no.
6117329
Ekranlamalı
yes
Mounting opening
Type RM
ASM-C6
Item no.
6117341
Ekranlamalı
no
Mounting opening
Type RM
ASM-C6 GS
Item no.
6117345
Ekranlamalı
yes
Mounting opening
Type C
ASM-C6 S
Item no.
6117349
Ekranlamalı
no
Mounting opening
Type C
