Connection plate with 3 holes A2
Type GMS 3 VP A2
|Item no. 1124687
|EAN 4012195804918



Item no. / Type
1124687 / GMS 3 VP A2
Length
150 mm
Width
40 mm
Smallest selling unit: 20 piece
20piece
piece
Description

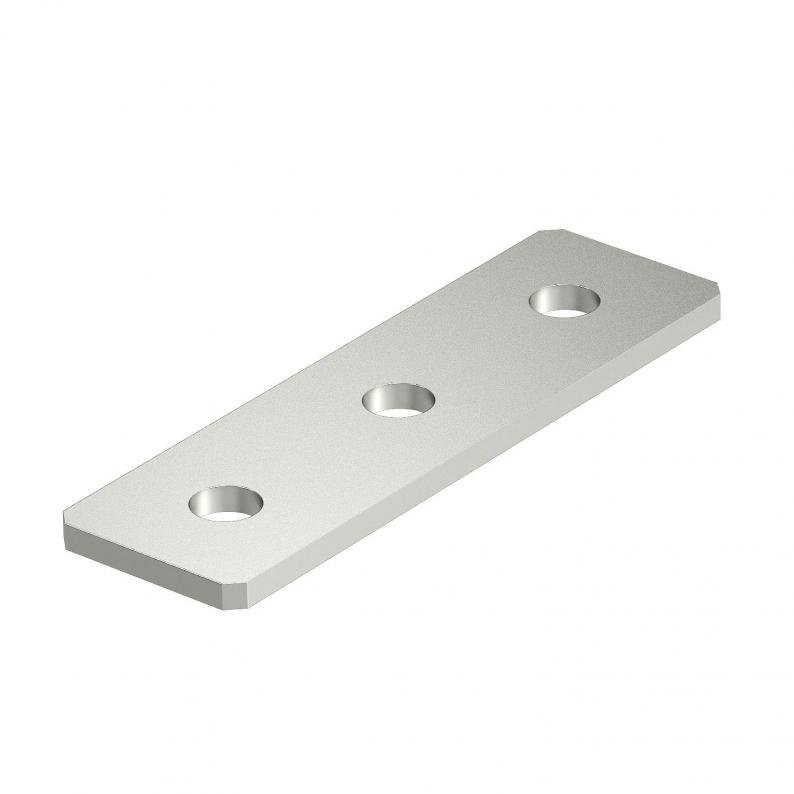

Connection plate with three holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
Technical data

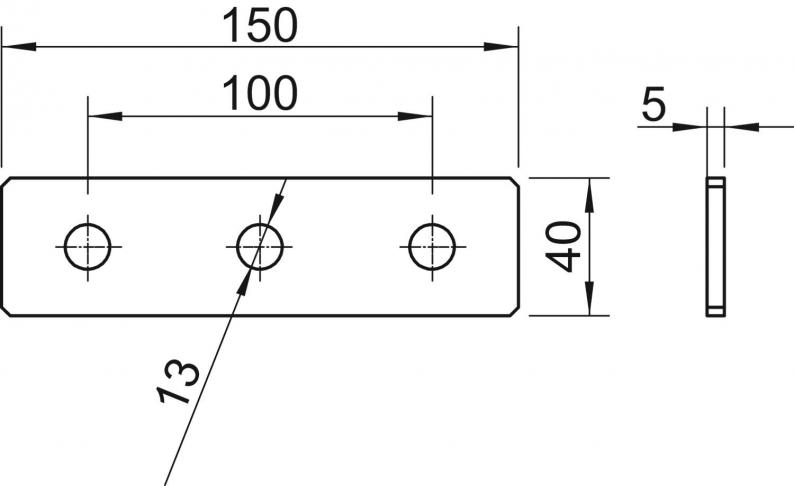

Dimensions
| Length | 150 mm |
|---|---|
| Width | 40 mm |
| Height | 4 mm |
Technical data
| Paslanmaz çelik, mordanlı | hayır |
|---|---|
| Material thickness | 4 mm |
| Hole size | 13 |
| With screw accessories | hayır |
| Version for | With continuous perforation 13 mm |
| Suitable for profile shapes | C profil |
| Boyut | 150x40x4 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 0,8254 kg CO2e / 1 Adet |
|---|
