Connection plate with 4 holes A2

Type GMS 4 VP A2
|
Item no. 1124689
|
EAN 4012195804925
Item no. / Type
1124689 / GMS 4 VP A2
Length
200 mm
Width
40 mm

Smallest selling unit: 10 piece

piece

Description

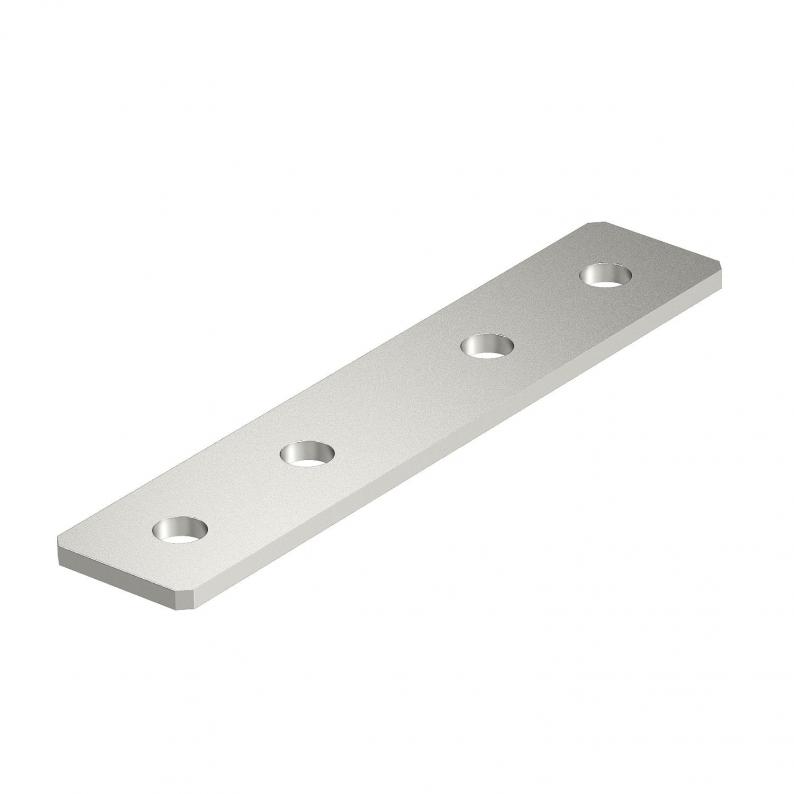

Connection plate with four holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length200 mm
Width40 mm
Height4 mm

Technical data

Paslanmaz çelik, mordanlıhayır
Material thickness4 mm
Hole size13
With screw accessorieshayır
Version forWith continuous perforation 13 mm
Suitable for profile shapesC profil
Boyut200x40x4
SurfaceBright, treated
MaterialStainless steel 1.4301

Environmental Data

Packaging made completely from recycled cardboard.evet
Packaging without plasticevet
CO2 ayak izi (GWP) beşikten kapıya1,1276 kg CO2e / 1 Adet
