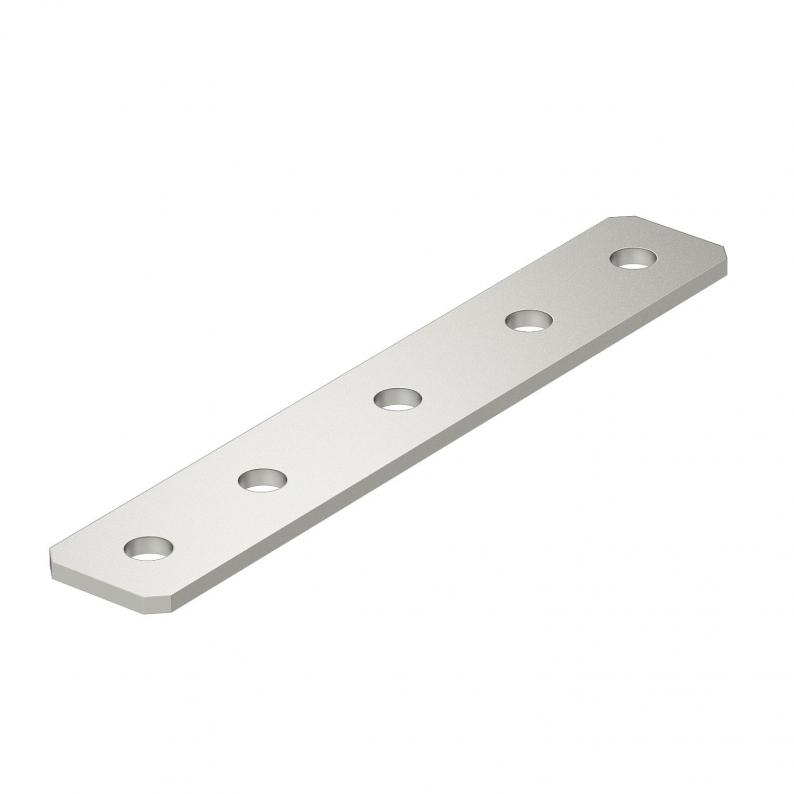

Connection plate with 5 holes A2
Type GMS 5 VP A2
|Item no. 1124691
|EAN 4012195804932
Item no. / Type
1124691 / GMS 5 VP A2
Length
250 mm
Width
40 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Connection plate with five holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
Technical data

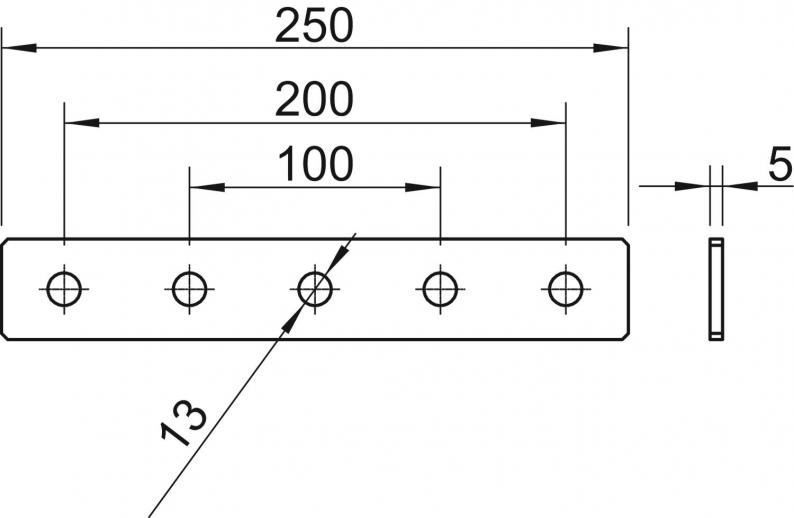

Dimensions
| Length | 250 mm |
|---|---|
| Width | 40 mm |
| Height | 4 mm |
Technical data
| Paslanmaz çelik, mordanlı | hayır |
|---|---|
| Material thickness | 4 mm |
| Hole size | 13 |
| With screw accessories | hayır |
| Version for | With continuous perforation 13 mm |
| Suitable for profile shapes | C profil |
| Boyut | 250x40x4 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging made completely from recycled cardboard. | evet |
|---|---|
| Packaging without plastic | evet |
| CO2 ayak izi (GWP) beşikten kapıya | 1,5908 kg CO2e / 1 Adet |
|---|
