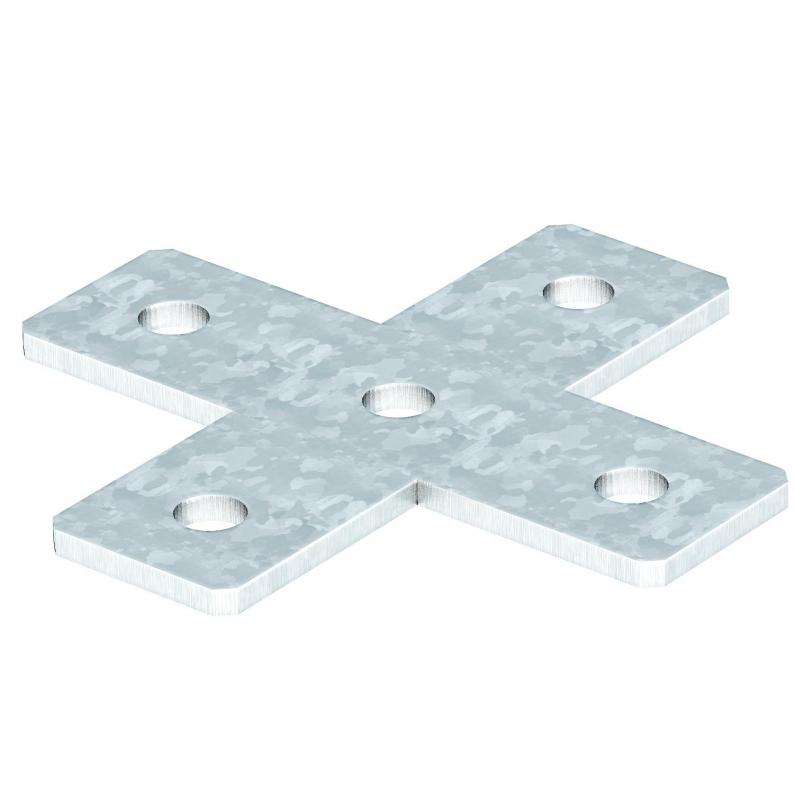

Connection plate, X-shaped FT
Type GMS 5 VP X FT
|Item no. 1124657
|EAN 4012195486084
Item no. / Type
1124657 / GMS 5 VP X FT
Length
150 mm
Width
40 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Connection plate with five holes for cross connection of profile rails 41 x 41 mm and 41 x 21 mm.

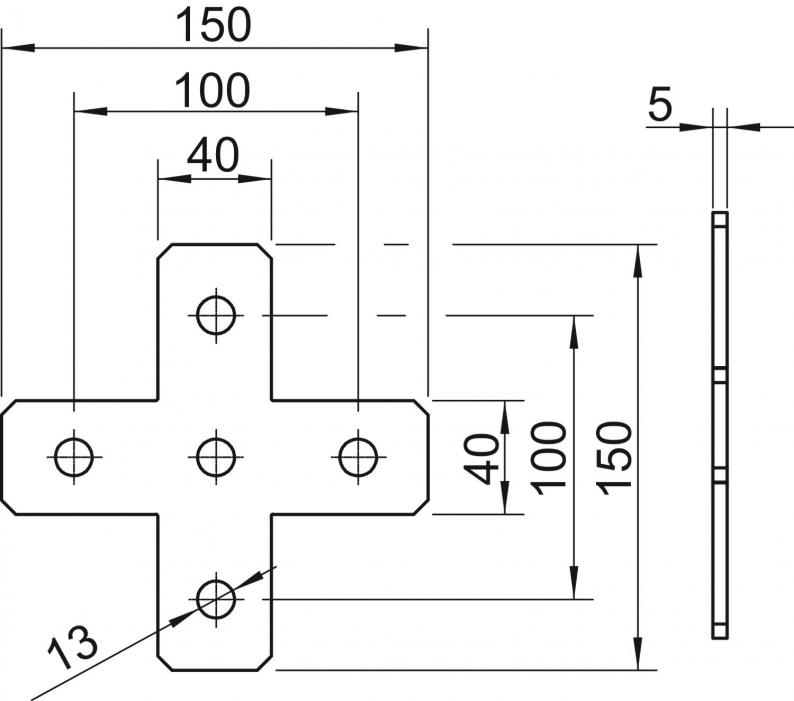

Technical data
Dimensions
| Length | 150 mm |
|---|---|
| Width | 40 mm |
| Height | 5 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Material thickness | 5 mm |
| Hole size | 13 |
| With screw accessories | no |
| Version for | With continuous perforation 13 mm |
| Suitable for profile shapes | C profile |
| Dimension | 150x150x40x5 |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
1,5397 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5397 kg CO2e / 1 Piece |
|---|
