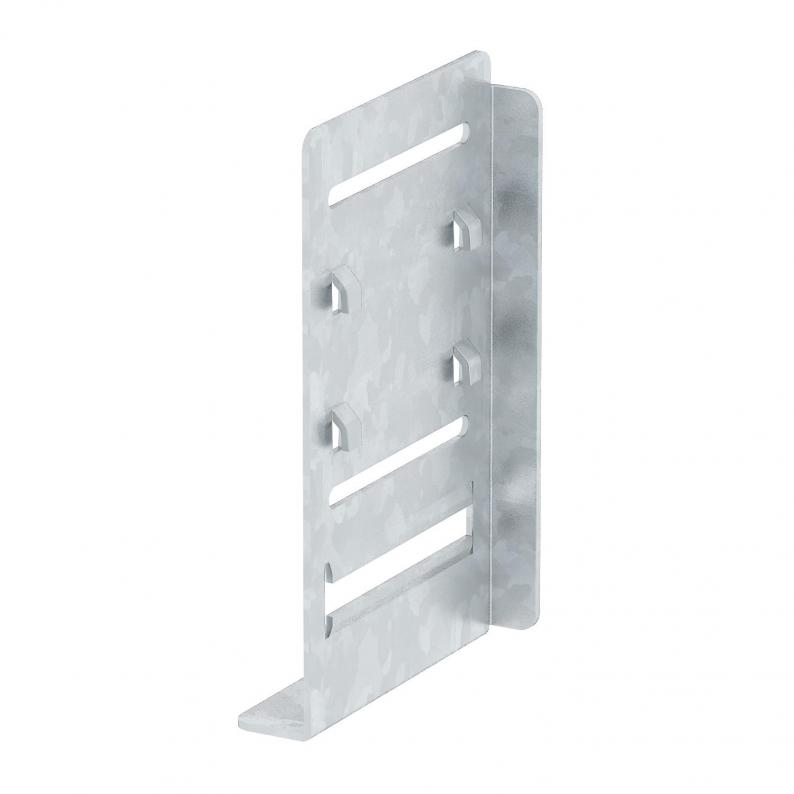

Connection profile for trunking width 170 mm
Type KSP170
|Item no. 6279810
|EAN 4012195680741
Item no. / Type
6279810 / KSP170
Length
92 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Connection profile for mounting and stabilising Rapid 80 device installation trunking, type GS and GA, of nominal width 170 mm.
Technical data

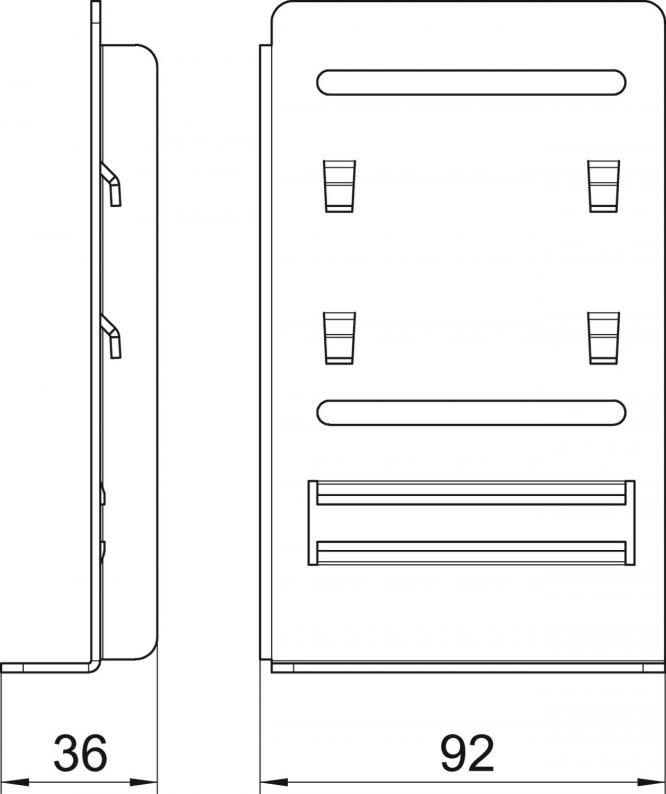

Dimensions
| Length | 92 mm |
|---|---|
| Width | 36 mm |
| Height | 152 mm |
Technical data
| Halogen-free | yes |
|---|---|
| installation position | Horizontal |
| Dimension | 152x92x36 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,8239 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8239 kg CO2e / 1 Piece |
|---|
