Connector A4
Type SLV 52 A4
|Item no. 7103592
|EAN 4012196698134
Item no. / Type
7103592 / SLV 52 A4
Height
10 mm
Material
Stainless steel 1.4571
Smallest selling unit: 10 piece
10piece
piece
Description

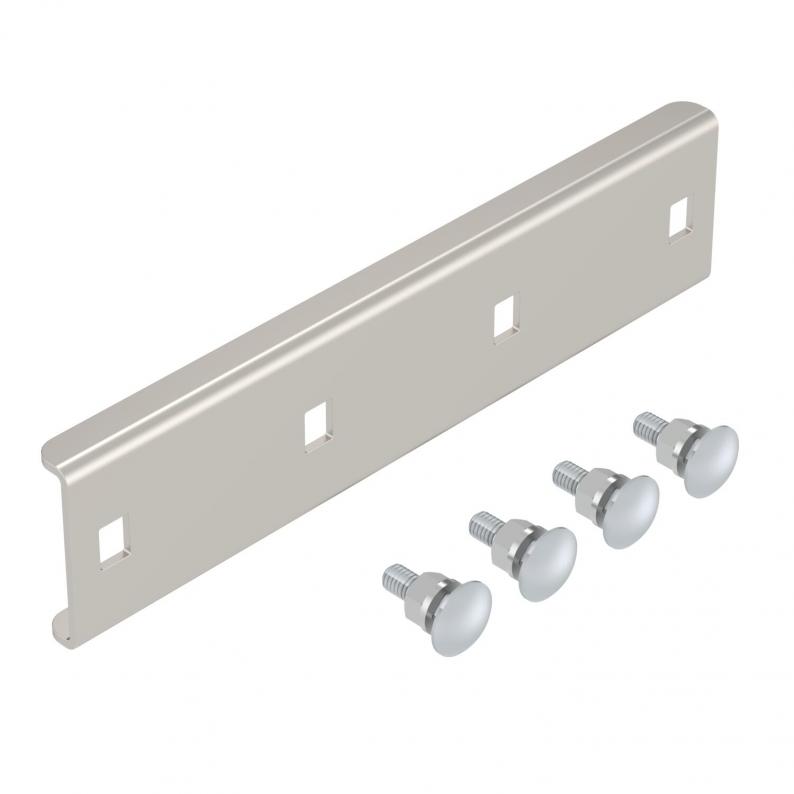

Straight connector to connect cable ladders and fittings with a side height of 35 mm.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data

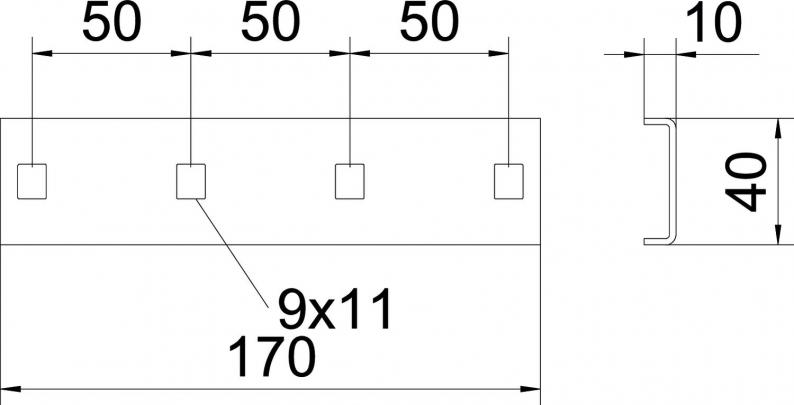

Dimensions
| Length | 170 mm |
|---|---|
| Width | 40 mm |
| Height | 10 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | yes |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 170x40 |
| Suitable for cable tray system height | 35 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 170x52 |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
Environmental Data
1,2258 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2258 kg CO2e / 1 Piece |
|---|
