Connector FS
Type LAS 110 FS
|Item no. 6221416
|EAN 4012196165254
Item no. / Type
6221416 / LAS 110 FS
Height
110 mm
Smallest selling unit: 10 piece
10piece
piece
Description

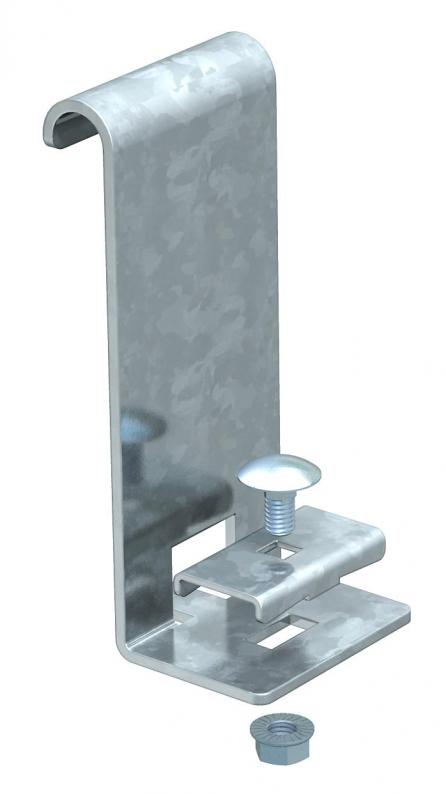

Connector for creation of branches at the same height at a later date.
To increase the cable supporting surface, use a conjunction of corner plates of type LEB.
Technical data

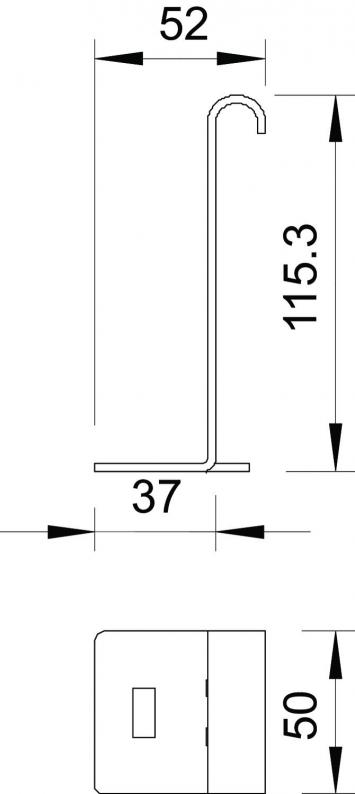

Dimensions
| Height | 110 mm |
|---|
Technical data
| Paslanmaz çelik, mordanlı | no |
|---|---|
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | no |
| Boyut | H110mm |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,5358 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Height
Item no.
LAS 110 FS
110
6221416
LAS 110 FS
Item no.
6221416
Height
110
