Connector FT
Type SLV 62 FT
|Item no. 7103576
|EAN 4012196698110
Item no. / Type
7103576 / SLV 62 FT
Height
12 mm
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 10 piece
10piece
piece
Description

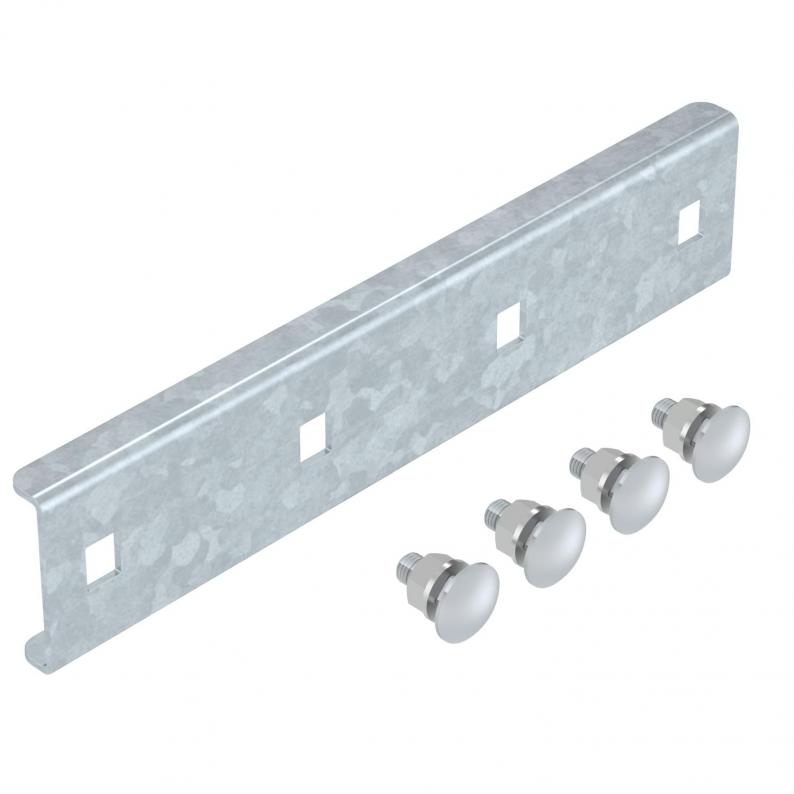

Straight connector to connect cable ladders and fittings with a side height of 40 mm.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data

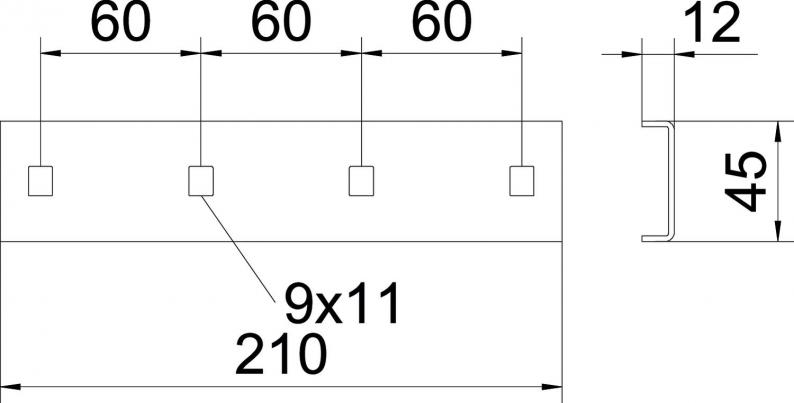

Dimensions
| Length | 210 mm |
|---|---|
| Width | 45 mm |
| Height | 12 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Kafes kablo kanalı için uygun | no |
| Kablo merdiveni için uygun | yes |
| Kablo kanalı için uygun | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Ölçü | 210x45 |
| Version for | Straight connector |
| Connection type | Screw connector |
| Boyut | 210x62 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,7265 kg CO2e / 1 Piece |
|---|
