Connector FT

Connector FT

Type GVMS 4 ASV FT
|
Item no. 1124641
|
EAN 4012195486008
Show all variants
Item no. / Type
1124641 / GVMS 4 ASV FT
Length
200 mm
Width
47 mm

Smallest selling unit: 10 piece

piece

Description

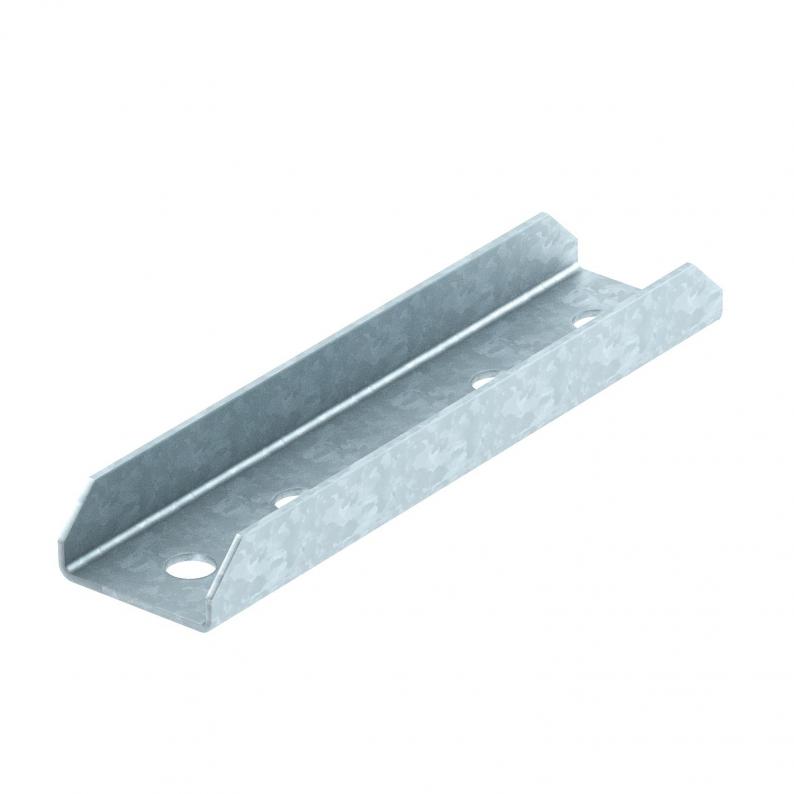

Connector gripping from outside with four holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

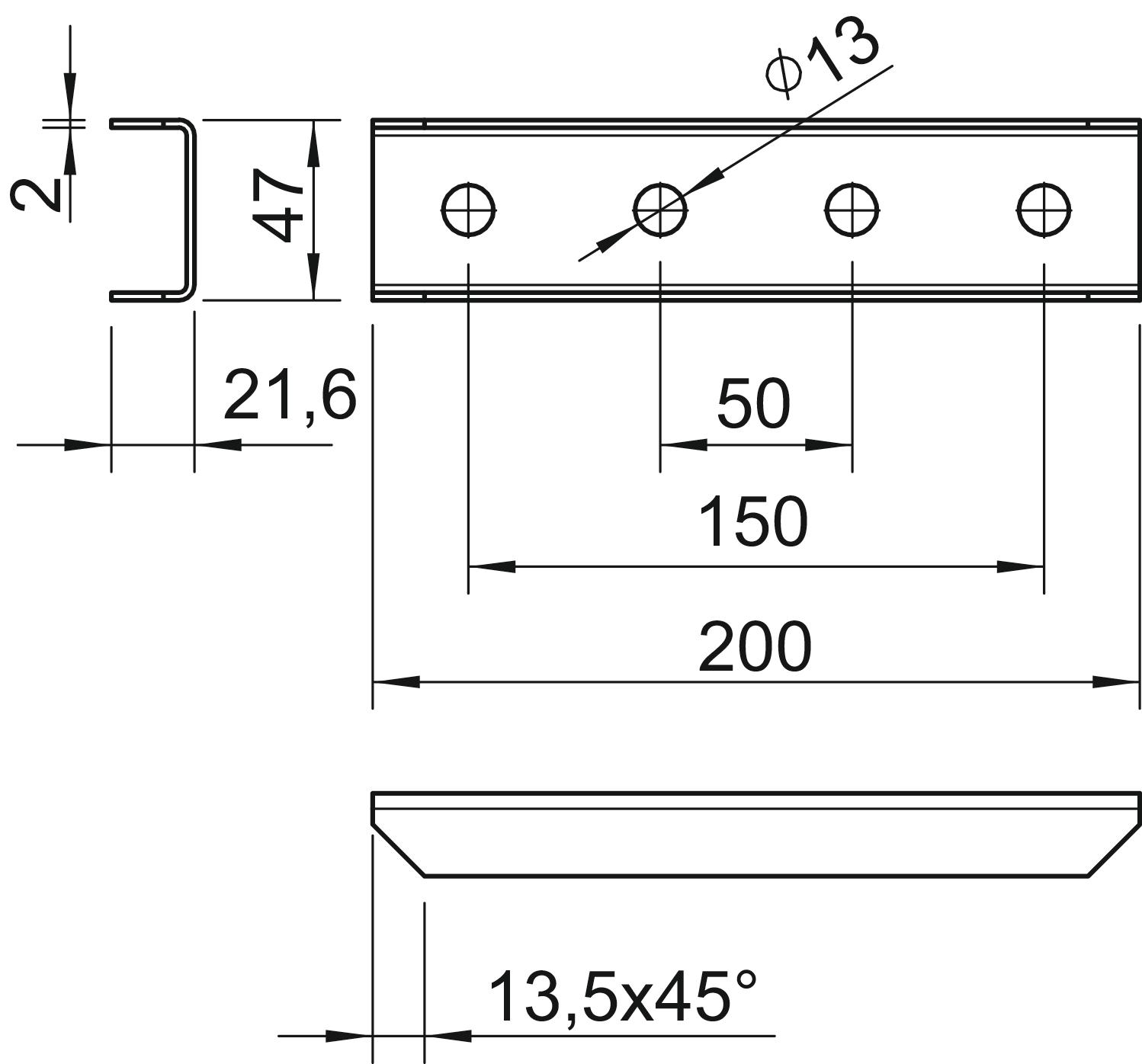

Dimensions

Length200 mm
Width47 mm
Height22 mm

Technical data

Rustproof steel, pickledno
Material thickness2 mm
Hole size13
With screw accessoriesno
Version forWith continuous perforation 13 mm
Suitable for profile shapesC profile
Dimension200x48x30
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

0,6485 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,6485 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

GVMS 4 ASV FT
Item no.
1124641
Length
200
Width
47
