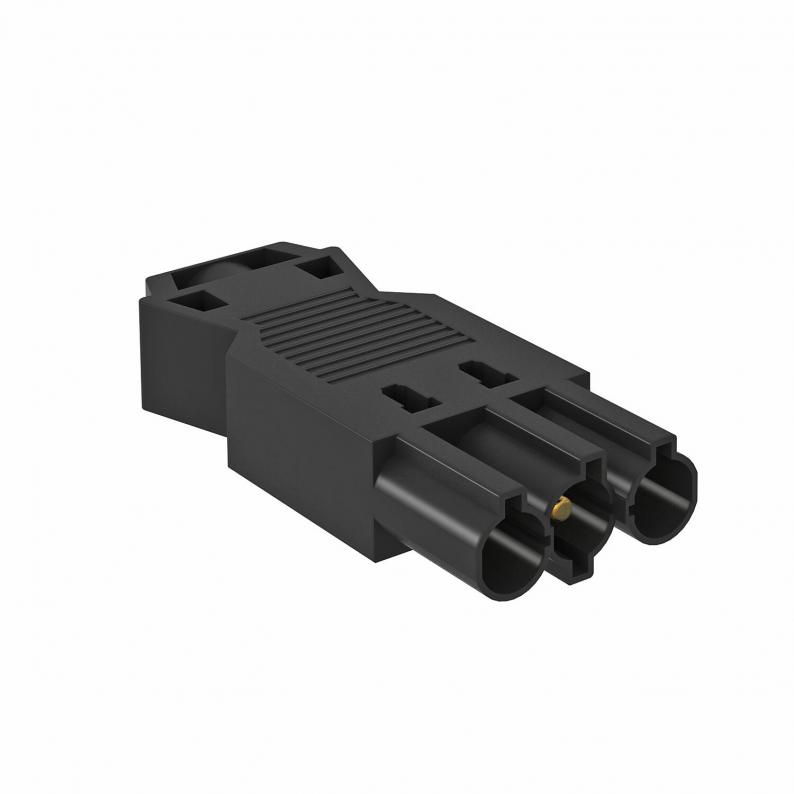

Connector part, 3-pin, screw connection, black
Type ST-S GST18i3p SW
|Item no. 6108054
|EAN 4012195273608
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description
Connector part, 3-pin, type GST18i with screw connection, low height (no slot loss in combination with distributor blocks), for cross-sections of 0.75–2.5 mm², single- and fine-wire cables connectable without end sleeve, for cable diameters between 6.5–10.5 mm (H05VV, NYM), unmounted with strain relief, terminable in situ, 250 V, 16 A.
Stripping length: 31 mm
Insulation removal length: 7 mm
Stripping length: 31 mm
Insulation removal length: 7 mm
Technical data
Technical data
| Colour | Black |
|---|
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 0,018 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Item no.
ST-S GST18i3p SW
6108054
ST-S GST18i3p W
6108055
ST-S GST18i3p SW
Item no.
6108054
ST-S GST18i3p W
Item no.
6108055
