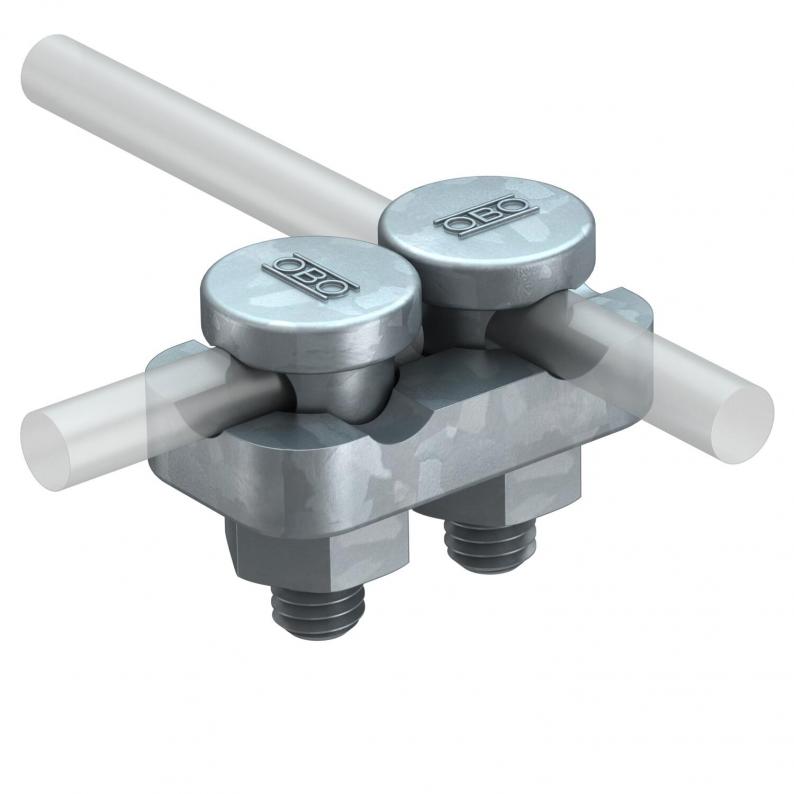

Connector Rd 8−10 mm, double
Type 5002 DIN-FT
|Item no. 5304202
|EAN 4012195416050
Item no. / Type
5304202 / 5002 DIN-FT
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 20 piece
20piece
piece
Description
• With 2 fix contact clamping screws, nut and serrated washer
• Including pre-mounted connecting pressure piece, die-cast zinc or copper-plated die-cast zinc
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
• Including pre-mounted connecting pressure piece, die-cast zinc or copper-plated die-cast zinc
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Connectors |
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,535 kg CO2e / 1 Piece |
|---|
