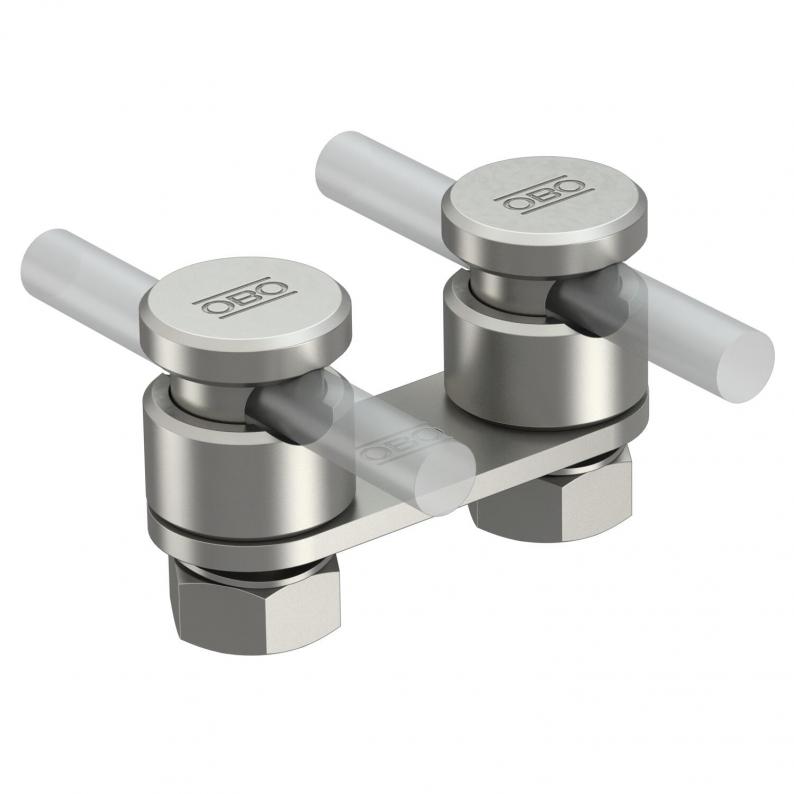

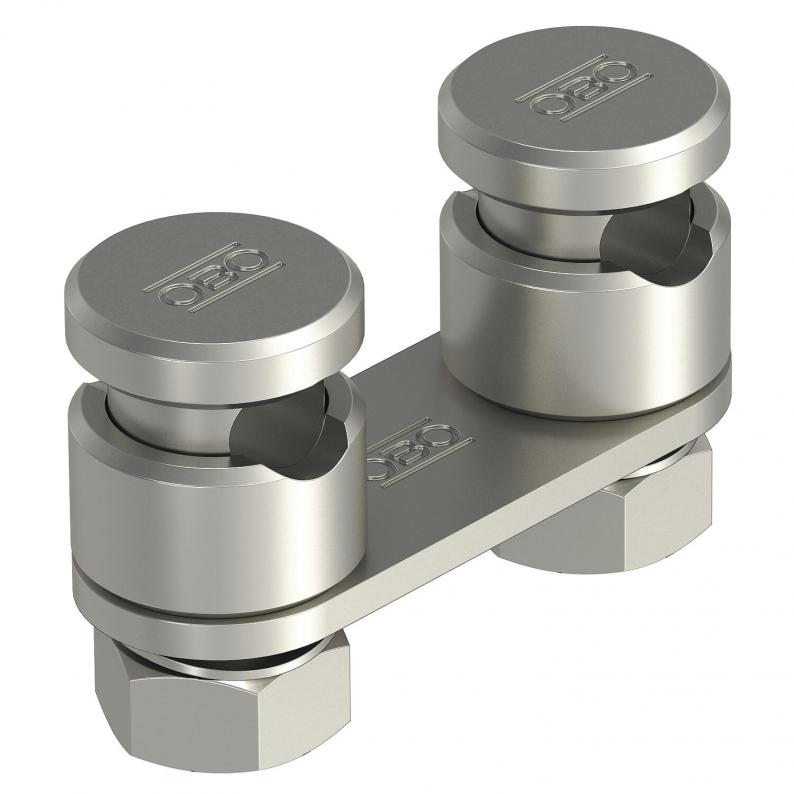

Connector, Rd 8−10 mm, double, with pressure trough
Type 5002 N-VA
|Item no. 5304270
|EAN 4012195892847
Item no. / Type
5304270 / 5002 N-VA
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With 2 Fix contact clamping screws, nuts and serrated washers
• With pre-mounted pressure trough made of VA
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• With pre-mounted pressure trough made of VA
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Connectors |
| Suitable for connection | Round conductor Rd 6–10 / Rd 6–10 |
| TBS application | Miscellaneous |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Material | Stainless steel 1.4301 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,9144 kg CO2e / 1 Piece |
|---|
