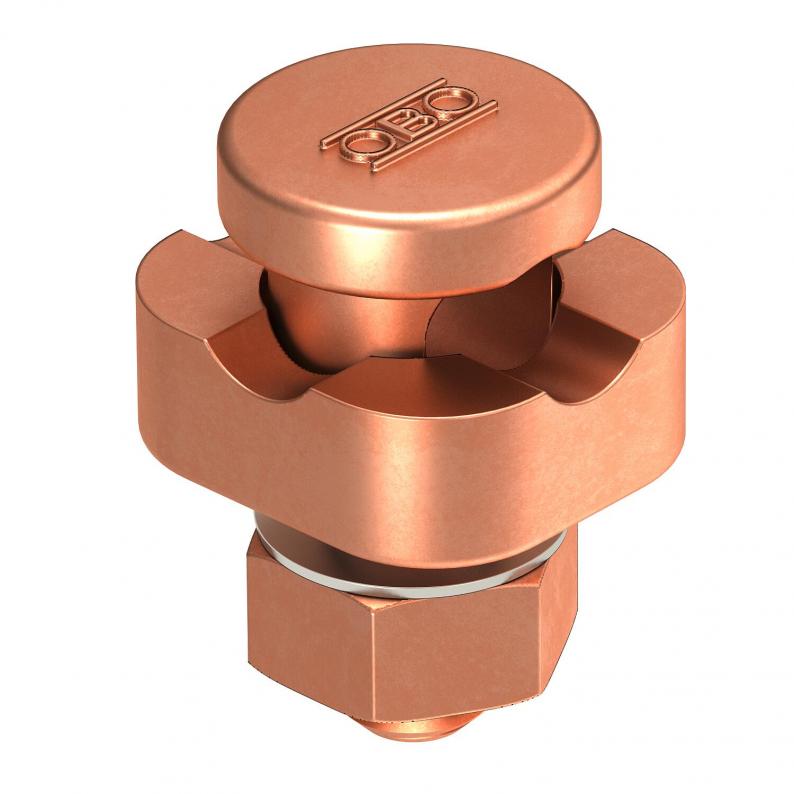

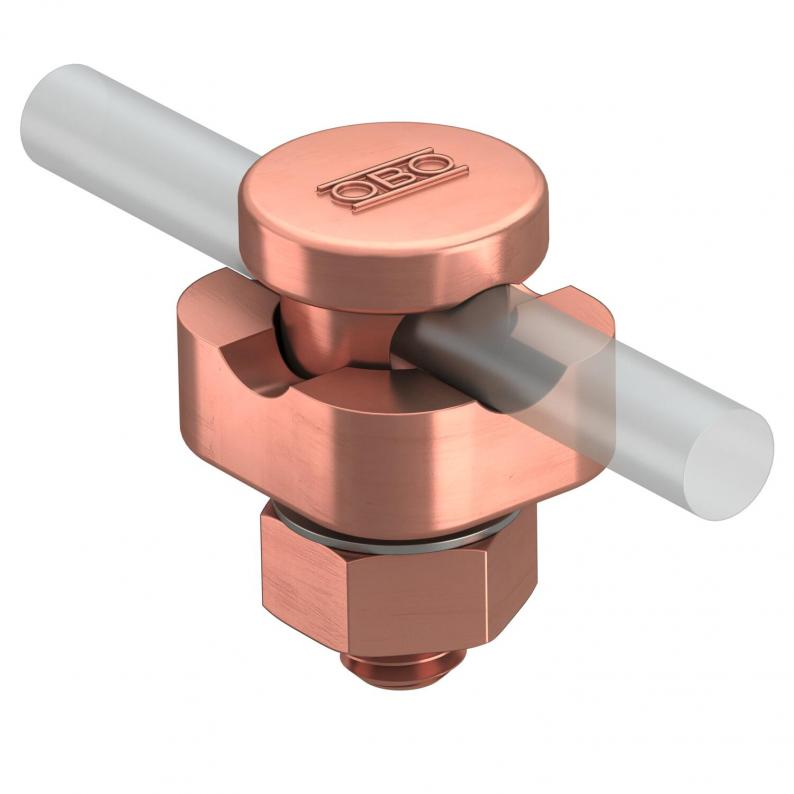

Connector Rd 8−10 mm, single, copper
Type 5001 ZN-CU
|Item no. 5304113
|EAN 4012195415930
Item no. / Type
5304113 / 5001 ZN-CU
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• With Fix-Kontakt clamping screw, nut and serrated washer
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• With 10.2 mm drill hole
• With pre-mounted thrust piece made of die-cast zinc
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Clamping screw |
| Type of connector | Connectors |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | H/100 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8-10mm |
| Surface | Copper-plated |
| Material | Die-cast zinc |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0144 kg CO2e / 1 Piece |
|---|
