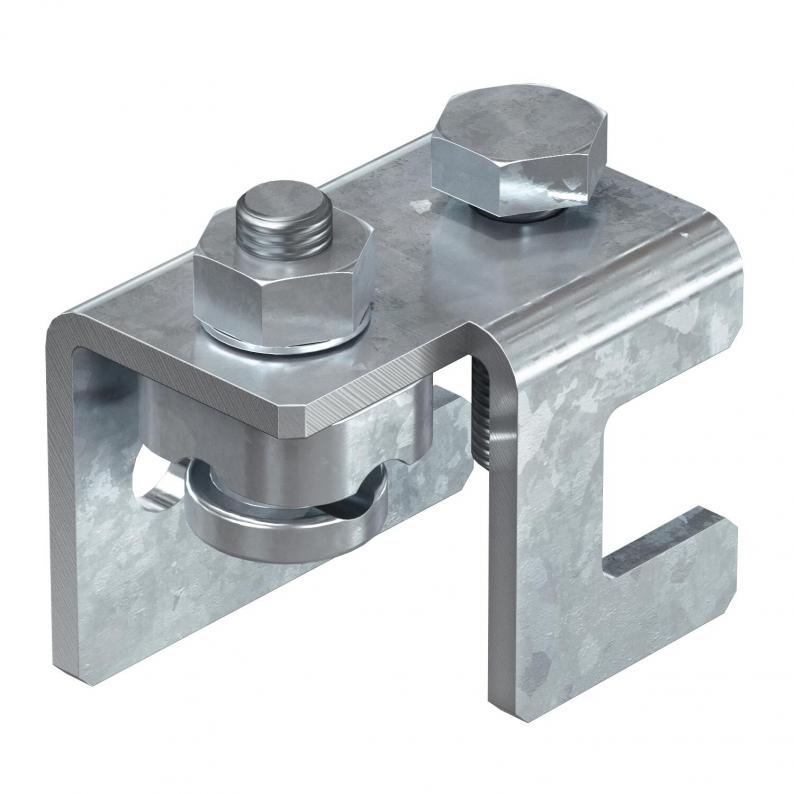

Construction clamp to 20 mm
Type 5010 20 FT
|Item no. 5304520
|EAN 4012195503057
Item no. / Type
5304520 / 5010 20 FT
Uyumluluk
Rd 8-10 mm
Clamping range, min.
4 mm
Clamping range, max.
20 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Mounting of the round conductor possible vertically or transverse to construction
• For fastening to constructions up to a flange thickness of 20 mm
• Fastening to constructions using a hexagonal bolt M10
• Meets the requirements of VDE 0185-305 (IEC 62305)
• For fastening to constructions up to a flange thickness of 20 mm
• Fastening to constructions using a hexagonal bolt M10
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Ayırma plakası | no |
|---|---|
| Type of fastening screw | Hexagonal bolt |
| Type of connector | Construction clamp |
| Suitable for connection | Miscellaneous |
| Lightning current carrying capacity | N/50 kA |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 20mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Clamping range, min. | 4 mm |
| Clamping range, max. | 20 mm |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,0279 kg CO2e / 1 Piece |
|---|
