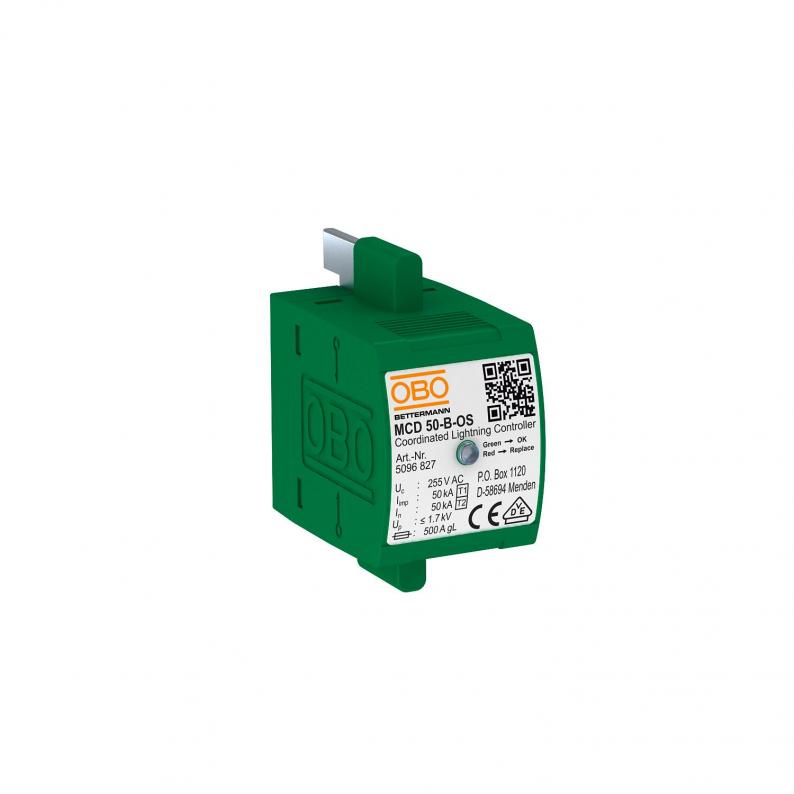

CoordinatedLightningController, plug-in arrester with function display
Type MCD 50-B 0-OS
|Item no. 5096827
|EAN 4012195051473
Item no. / Type
5096827 / MCD 50-B 0-OS
Koruma sınıfı
IP20
Maximum continuous voltage AC
255 V
Pole version
1
Smallest selling unit: 1 piece
1piece
piece
Description
Combination arrester, type 1+2, plug-in arrester with visual display.
• Lightning current arresting capacity 50 kA (10/350)
• Power consumption < 26 mW/pole
• Protection level < 1.7 kV
• Line current quenching capacity 10 kA
• Encapsulated, non-extinguishing spark gap
Application: Installations of surge protection devices, type 1+2, in a distribution.
• Lightning current arresting capacity 50 kA (10/350)
• Power consumption < 26 mW/pole
• Protection level < 1.7 kV
• Line current quenching capacity 10 kA
• Encapsulated, non-extinguishing spark gap
Application: Installations of surge protection devices, type 1+2, in a distribution.
Technical data

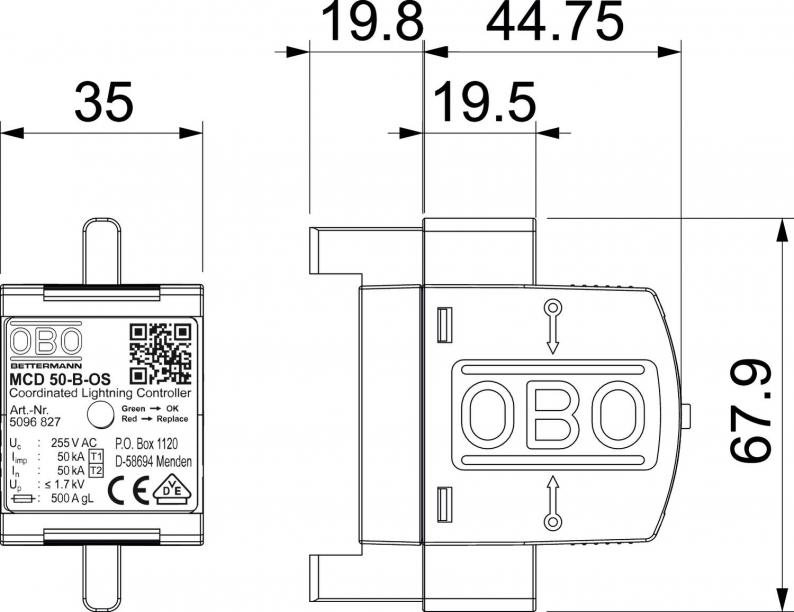

Dimensions
| Length | 100 mm |
|---|---|
| Width | 35 mm |
| Height | 69 mm |
Technical data
| Kutup sayısı | 1 |
|---|---|
| Ağ formu | Other |
| Söndürmeli | no |
| Cihazda sinyalizasyon | Visual |
| Koruma sınıfı | IP20 |
| En yüksek sürekli gerilim (L-N) | 255 V |
| Anma deşarj akımı (8/20) (L-N) | 50 kA |
| Lightning surge current (10/350) | 50 kA |
| Test class, type 1 | yes |
| Remote signalling | no |
| Test class, type 2 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Lightning surge current (10/350 μs) | 50 kA |
| Koruma seviyesi [L-N] | ≤1,7 |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 50 kA |
| Pole version | 1 |
| Installation type | On basic element |
| Max. mains-side overcurrent protection | 500 |
| Short-circuit resistance for max. mains-side overcurrent protection | 10 kA |
| Approvals | VDE |
| Version for | 1-pole |
| DC network form | no |
| IT network form | no |
| TN network form | yes |
| TN-C network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
| Other network form | no |
| OBO_Nominal load current (input/output terminal) | 125 A |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 85 °C |
| SPD to IEC 61643-1 | Class I+II |
| EN 61643-11 standardına göre talep sınıfı | Type 1+2 |
| Lightning protection zone LPZ | 0→2 |
| Short-circuit resistance | 10 kA |
| Devreye girme süresi | <100 ns |
| Maximum back-up fuse | 500 A |
| Kullanılabilir sıcaklık aralığı min. | -40 °C |
| Kullanılabilir sıcaklık aralığı maks. | 85 °C |
| Boyut | 255V |
| Humidity, max. | 95 % |
| Humidity, min. | 5 % |
