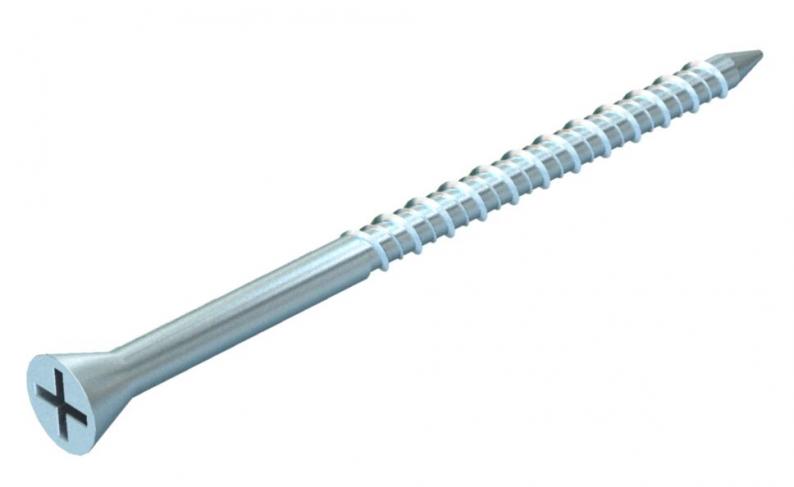

Countersunk head screw for PYROLINE® Con fire protection ducts
Type KSS 4.5x80
|Item no. 7215412
|EAN 4012196887774
Item no. / Type
7215412 / KSS 4.5x80
Length
80 mm
Vida dişi
M4,5
Smallest selling unit: 50 piece
50piece
piece
Description
Countersunk head screw as spare part for PYROLINE® Con fire protection ducts, to fasten lids, end pieces, wall connection collars and doublers with a plate thickness of 40–60 mm.
Technical data

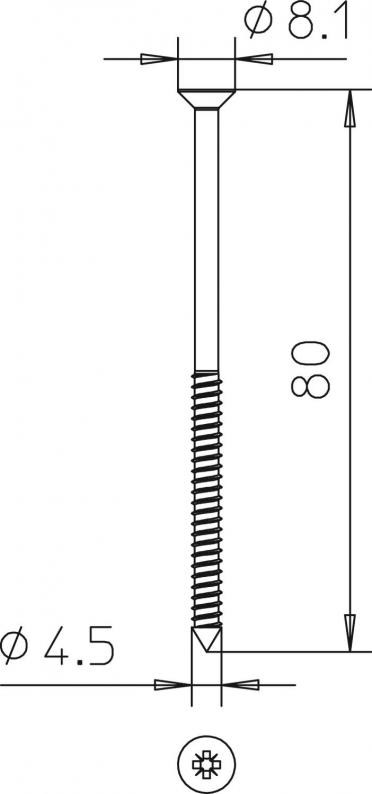

Dimensions
| Length | 80 mm |
|---|
Technical data
| Thread metric | 4,5 |
|---|---|
| Vida dişi | M4,5 |
| Screw system | Phillips PH |
| Ölçü | 4,5 x 80 |
| Boyut | 4,5x80 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
