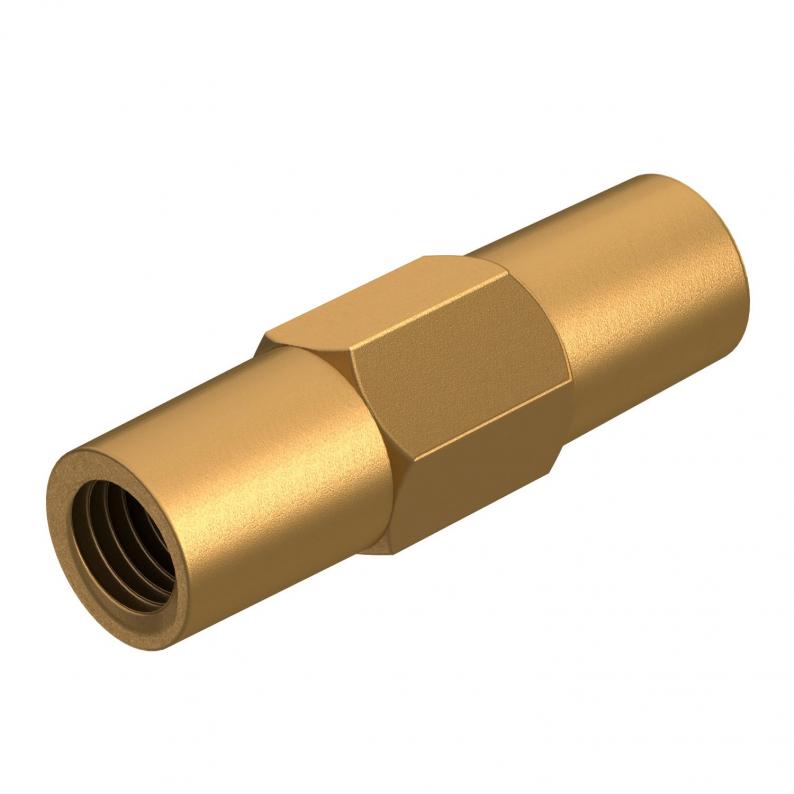

Coupling for earth rod with thread
Type 2019 16
|Item no. 5001190
|EAN 4012196431236
Item no. / Type
5001190 / 2019 16
External diameter
14,2 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Suitable for earth rods, type 2019 16 CU
Technical data

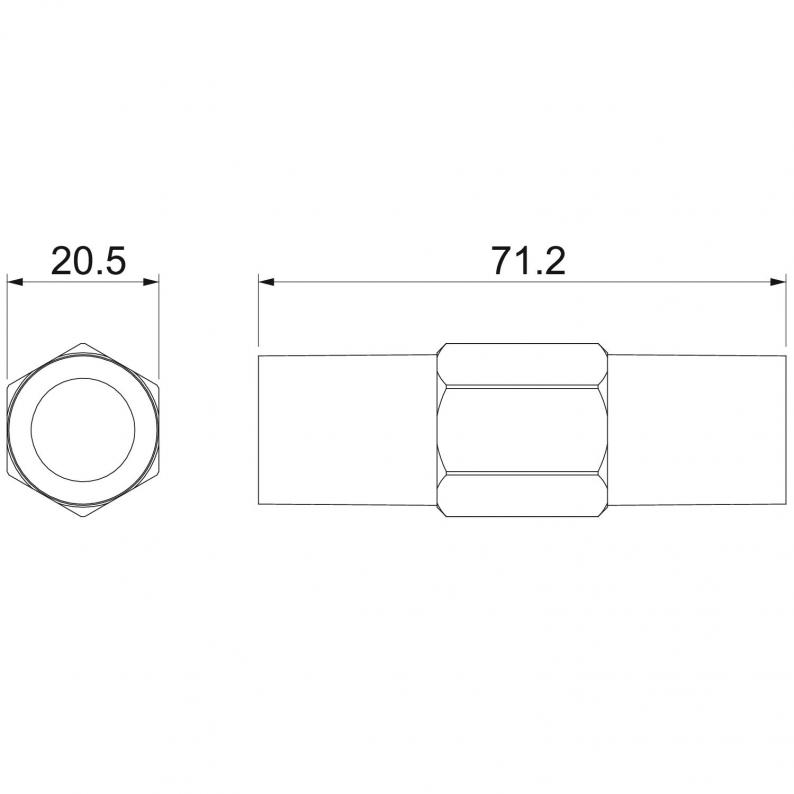

Dimensions
| Length | 72 mm |
|---|---|
| Dimension L | 71,2 mm |
| Dimension D | 20,5 mm |
Technical data
| External diameter | 14,2 mm |
|---|---|
| for earth rods | 14,2 mm |
| Dimension | 72x21 |
| Material | Red bronze |
Environmental Data
0,25 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,25 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,25 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
