Coupling GA-KUP90

Coupling GA-KUP90

Type GA-KUP90
|
Item no. 6279704
|
EAN 4012195770022
Show all variants
Item no. / Type
6279704 / GA-KUP90
Length
120 mm

Smallest selling unit: 1 PU

PU

Description

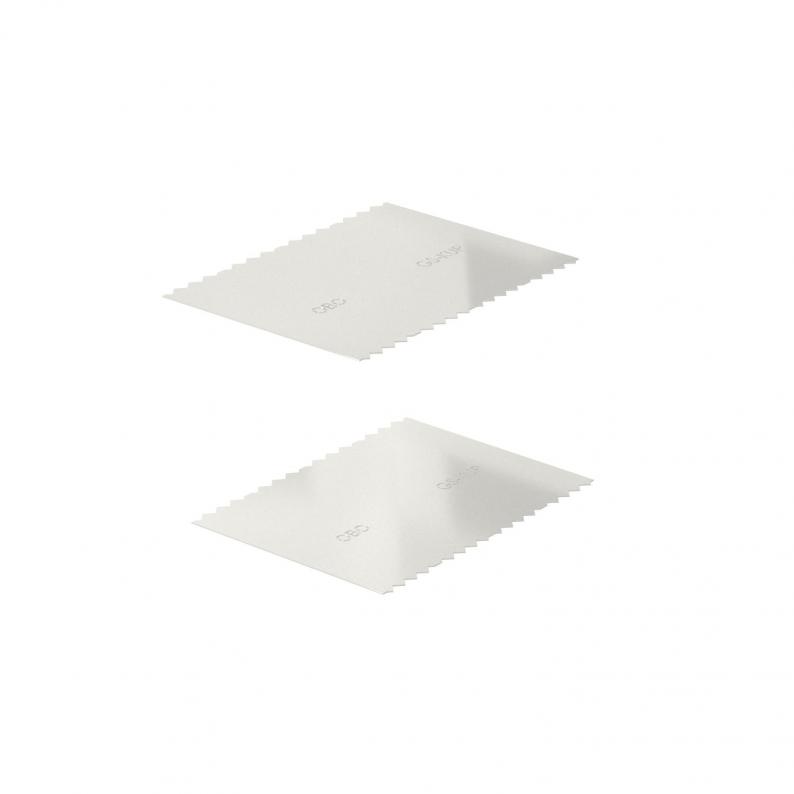

Joint connector for connecting the bases of Rapid 80 GA aluminium device installation trunking.

The scope of delivery of a coupling includes 2 connection plates.
  • Alman Elektrik, Elektronik ve Bilgi Teknolojileri Birliği
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

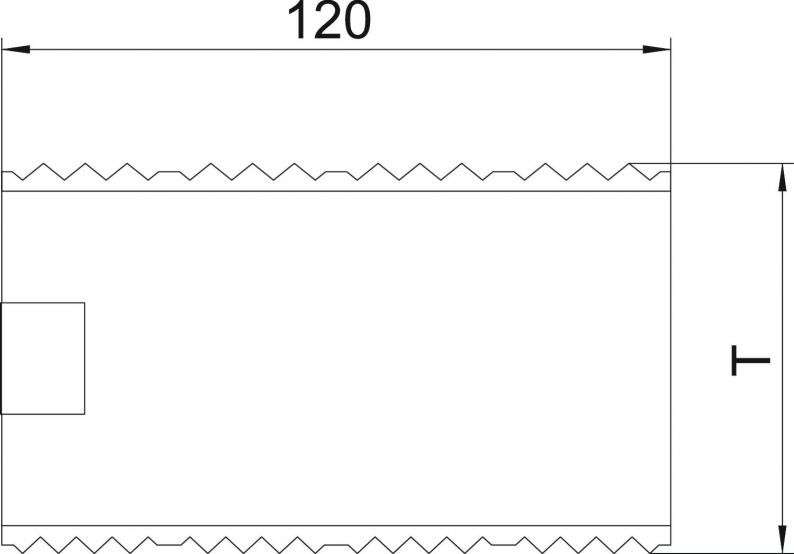

Length120 mm
Width84 mm

Technical data

Halojen İçermezyes
Koruma sınıfıIP30
Potansiyel dengelemeliyes
Protection rating IK codeIK10
Version forUniversal
Typecoupling
Kanal derinliği90 mm
Kullanılabilir sıcaklık aralığı min.-25 °C
Kullanılabilir sıcaklık aralığı maks.60 °C
Boyut84x120
MaterialStainless steel 1.4301
Colourstainless steel

Environmental Data

Packaging made completely from recycled cardboard.yes
CO2 ayak izi (GWP) beşikten kapıya0,3805 kg CO2e / 2 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

GA-KUP90
Item no.
6279704
Length
120
